Raymarine Evolution EV-100 Tiller Autopilot
Item: Raymarine Evolution EV-100 Tiller Autopilot with T
MPN: t70249

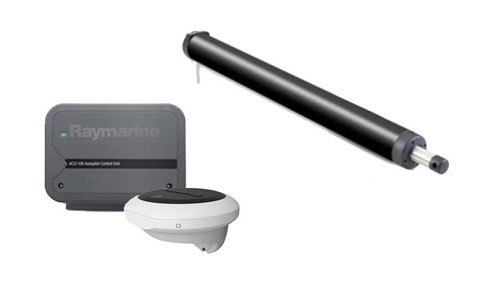

The EV-100 tiller pilot for tiller steered boats with displacement up to 6,000 kg. The Evolution autopilot systems perceive their environment and instantly calculate and evolve steering commands to maximize performance. The result is precise and confident course keeping, regardless of vessel speed or sea conditions - Evolution autopilots steer so accurately they can save fuel and get you to your destination faster. Pack Contains : EV1 Sensor Core, ACU-100 Drive interface, Tiller Drive and Evolution Cabling Kit.
login to saveProduct Description
The EV Sensor Core
At the centre of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing.
Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.
EV Sensor Core Benefits
- Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change.
- Flexible installation options. Mount above or below deck.
- Simple SeaTalkng connectivity to the control head and ACU.
- Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions.
- Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes.
- Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays.
Autopilot Control Unit (ACU)
The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering type:
Supported Drives
ACU-100 Wheel, tiller and 0.5 ltr Hydraulic
ACU-150Type-1 Hydraulic Drive Unit
ACU-200Type 1 Raymarine hydraulic, linear and rotary mechanical drives
ACU-300For solenoid controlled steering systems and Raymarine constant running hydraulic pumps
ACU-400Type 2 and 3 Raymarine hydraulic, linear, and rotary mechanical drives
Tiller Drive
The Raymarine EV-100 Tiller Pilots are perfect for large tiller steered yachts up to 6,000kg (13,200 lbs) displacement.
The tiller drive unit is compact and unobtrusive and used by some of the world's top single-handed sailors!
