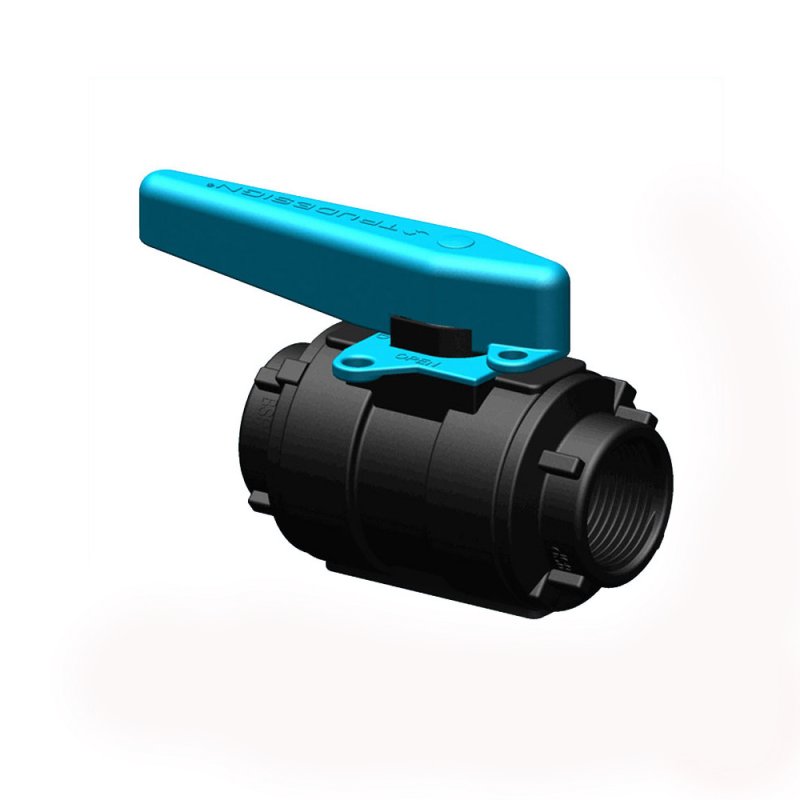

TruDesign Composite Ball Valve

Product Description

TruDesign Ball Valves Composite Ball Valves

Fully approved and manufactured in New Zealand for use in marine applications above and below the water line.

The bodies of these valves are moulded in a glass reinforced nylon composite material providing high impact and tensile strength, resulting in a light weight unit, free from corrosion and electrolysis. The internal workings are moulded in a Teflon enhanced polymer for a smooth action, also ensuring continuous ease of operation over many years. The Ball Valve can be locked in the closed position for use on toilet waste outlets.

Features:

Manufactured from a glass-reinforced nylon composite - High strength, tough and light weight
Immune to corrosion and electrolysis - Long life with no concerns over decreased performance or breakages due to corrosion
Chemical resistant - Impervious to diesel, petrol and antifouling paints
Suitable for use on all hull types - aluminium, steel, wood or GRP
Can be used in engine rooms
UV resistant - Will not degrade or discolour with ultraviolet light from the sun
Large operating temperature range (-20° to +90°C)
High quality surface finish - Will not discolour with green film as similar bronze fittings do
PTFE enhanced sealing and sliding elements mean reduced friction for easy operation and reduction in blockages due to fouling
Approved by IMCI & Bureau Veritas to ISO standard 9093-2
Every valve is leak tested during manufacture
BSP Female Thread
Burst-rated to 750Psi (5,170 kPa)
