Product Description

SCM-AL accent lighting flex strips are avaialble in various lengths and are perfect for lighting the deck and interior areas of your boat. Track is 1m plastic and used for snap-in mounting of SCM-AL-LED strips - SCM-AL-LED has visible points of light, SCM-NEON displays one continuous bead of light and are ideal when in direct vision.

SCM-AL-LED

The SHADOW-CASTER® marine LED light strip provides sophisticated color changing RGB lighting to accent areas, hatches, shelves and compartments. For use with center console boats, fishing boats, pontoon boats, sports boats and yachts.

The SCM-AL-LED marine LED light strip is ideal for mounting out of direct view.

SHADOW-CASTER® marine LED light strip comes in either 8 or 16 ft lengths and can be cut down to ?t into a particular application. As there are no integrated control electronics, the strip can either be hardwired to be a certain color or connected to a SHADOW-CASTER® marine LED controller to fully control color and brightness.

SCM-AL-LED-08 - 8′ (2.5m) Length - 8 Clips & 1 End Cap

SCM-AL-LED-16 - 16′ (5m) Length - 16 Clips & 2 End Caps

SPECIFICATIONS

RGB color
120° beam angle
60 LEDs per meter
50mm cut segments
15W per meter
1.2A per meter
12V only
0.5″ (13mm) bend radius
0.2″ x 0.5″ (5mm x 12mm)
20′ (6m) lead wire
IP67 waterproof design
Silicone jacket material
-30 – 60°C operating temperature

SCM-AL-SVMINI-NEON

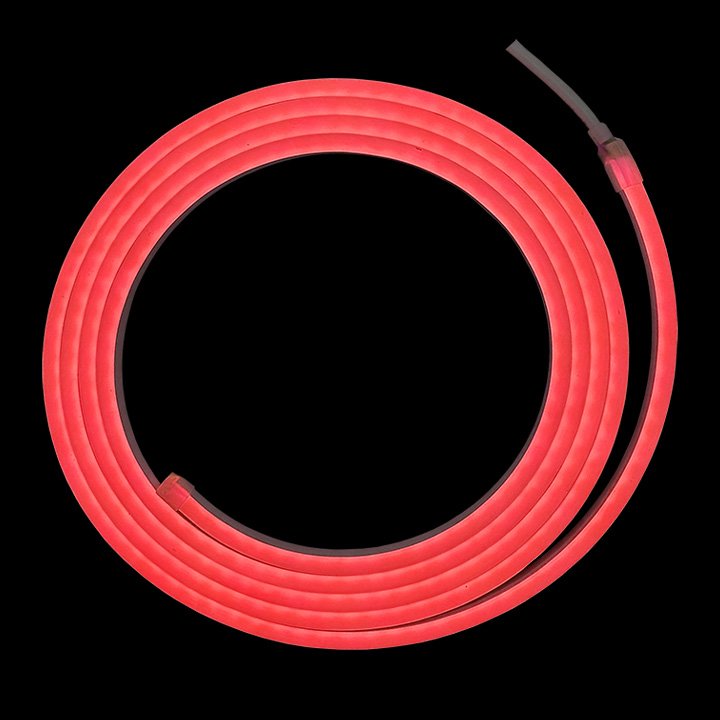

The SHADOW-CASTER® marine side illuminated mini neon light strip provides diffuse color changing RGB lighting to accent areas, hatches, steps, coves, shelves and compartments. For use with center console boats, fishing boats, pontoon boats, sports boats and yachts.

Slightly smaller than our standard neon marine light strip (SCM-AL-NEON), the SCM-AL-SVMINI-NEON has a smaller bend radius and a greater LED density (LEDs/meter).

The SCM-AL-SVMINI-NEON versions are recommended where the strip will be directly visible as they have an integrated light diffuser that creates a pleasant continuous lighting look.

SHADOW-CASTER® marine side illuminated mini neon light strip comes in either 8, 16 or 30ft lengths and can be cut down to ?t into a particular application. As there are no integrated control electronics, the strip can either be hardwired to be a certain color or connected to a SHADOW-CASTER® marine LED controller to fully control color and brightness.

SCM-AL-SVMINI-NEON-8 - 8′ (2.5m) Length - 8 Clips & 2 End Caps

SCM-AL-SVMINI-NEON-16 - 16′ (5m) Length - 16 Clips & 2 End Caps

SCM-AL-SVMINI-NEON-30 - 30′ (9.1m) Length - 30 Clips & 2 End Caps

SPECIFICATIONS
