Echomax Active-X Band Radar Target Enhancer
Echomax Active-X Band Radar Target Enhancer
State of the art Echomax Active-X-Band Radar Target Enhancer receives a signal from transmitting radar, amplifies and returns a stronger signal. This increases the likelihood of detection reducing the risk of collision and helps to alert oncoming vessels of your position. Control Box for interior installation Surface mount: Surface mount for interior installation or flush mount fitting with optional...
£459.00 inc VAT
Echomax Active-XS-Dual Band Radar Target Enhancer
Echomax Active-XS-Dual Band Radar Target Enhancer
State of the art Echomax Active-XS-Dual Band Radar Target Enhancer with minuscule current draw of 23mA on stand by and very high X and S band response many times the new ISO 8729-2 standard. Unique visual facility to identify S or X Band Radar paints Quadruple alarm facility as standard. The Active-XS amplifies and returns a stronger signal and these high responses to both X or S Band Radar...
£689.00 inc VAT
Echomax EM 230C Compact Base Mount Radar Reflector
Echomax EM 230C Compact Base Mount Radar Reflector
Echomax EM 230C is adapted from the very successful big brother with high response of 8.3sq/m. Suitable for 6-9 metre fast fishing boats and solves the problem where to fit the radar reflector, just bolt on! Fit the optional QD fitting whilst trailering to avoid damage caused by low trees or obstacles or that low garage or barn entrance. Fitting kit included Maximum response of 8.3M2 average 1.3M2. Width...
£135.99 inc VAT

Echomax EM 230C Compact Base Mount Radar Reflector with All-round White Light
Echomax EM 230C Compact Base Mount Radar Reflector with All-round White Light
Echomax EM 230 is adapted from the very successful big brother with high response of 8.3sq/m and with all round white navigation light and 4m of cable. Suitable for 6-9 metre fast fishing boats and solves the problem where to fit the radar reflector and the light - just bolt on and wire up! Fit the optional QD (Quick Detachment) fitting whilst trailering to avoid damage caused by low trees or obstacles...
£189.95 inc VAT
Echomax EM 230C Compact Base Mount Radar Reflector with Tricolour Light
Echomax EM 230C Compact Base Mount Radar Reflector with Tricolour Light
Echomax EM 230C is adapted from the very successful big brother with high response of 8.3Msq/m and tricolour navigation light and 4m of cable. Suitable for 6-9 metre fast fishing boats and solves the problem where to fit the radar reflector and the light - just bolt on and wire up! Fit the optional QD fitting whilst trailering to avoid damage caused by low trees or obstacles or that low garage or...
£179.99 inc VAT

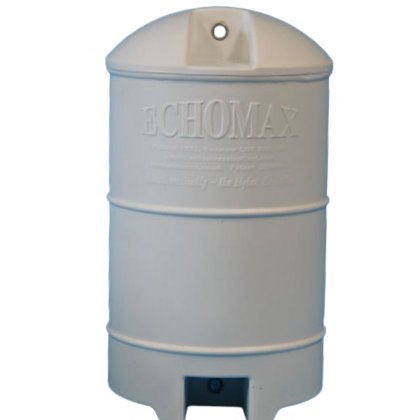

Echomax EM 180 Radar ReflectorEchomax EM 180 Radar Reflector
Echomax EM 180 Radar Reflector
Economical and only 478mm high the Echomax 180 is ideal for smaller boats, giving superb performance from the largest possible array, the EM180 is packed in to a robust polyethylene case. The EM180 has a documented maximum radar cross section of 8sq/m and is suitable for vessels up to 7-8 metres. Having utilised the largest possible patented symmetrical stacked array with the smallest possible robust...
£109.95 inc VAT

Echomax EM 230 Radar ReflectorEchomax EM 230 Radar Reflector
Echomax EM 230 Radar Reflector
Manufactured in a robust polyethylene case, the EM230 model is suitable for medium to large size vessels 9 -15 metres, available in white, orange, yellow, red, green, or black. Echomax EM230 has now been allocated a NATO Stock No.5840-99-742-6193 following the adoption and use of the Echomax EM230 by the UK Military Forces and others throughout the World. Used by the US Navy for target and other...
£133.50 inc VAT
Echomax EM 230 Midi Radar ReflectorEchomax EM 230 Midi Radar Reflector
Echomax EM 230 Midi Radar Reflector
Echomax EM 230 Midi is a medium sized Echomax radar reflector with a maximum 20sq/m radar cross section suitable for 8 -15 metres sailing yachts, fully tested by QinetiQ. Exceeds RORC/ORC/WCC/ISAF requirement of 10sq/m. Suitable for mast, deck bracket or halyard suspension. Dimensions: Height: 450mm Width: 245mm Fixing centres: 408mm Fixing holes: 8mm Weight: 1.9kg
£133.50 inc VAT
Echomax EM 230 Midi Base Mounted Radar Reflector
Echomax EM 230 Midi Base Mounted Radar Reflector
Echomax EM 230 Midi basemount is suitable for direct installation on wheel house roofs, RIB A frames, marker buoys. Robust four hole base fixing and supplied with fixing kit comprising of spacers to avoid over tightening and neoprene washers to absorb the shock of crashing down on waves at speed. Chosen by the RNLI as best reflector for their fleet of 400 RIB's. After capsize tests and exhaustive...
£134.95 inc VAT

Echomax EM 230 Midi Base Mounted Radar Reflector with All Round Light
Echomax EM 230 Midi Base Mounted Radar Reflector with All Round Light
EM230 basemount is suitable for direct installation on wheel house roofs, RIB A frames, marker buoys and supplied with allround white navigation light. Robust four hole base fixing and supplied with fixing kit comprising of spacers to avoid over tightening and neoprene washers to absorb the shock of crashing down on waves at speed. With the factory fitted all round white navigation light and four...
£179.99 inc VAT
Echomax EM 230 Midi Base Mounted Radar Reflector with Tricolour Light
Echomax EM 230 Midi Base Mounted Radar Reflector with Tricolour Light
EM230 basemount is suitable for direct installation on wheel house roofs, RIB A frames, marker buoys and supplied with tricolour naviagtion light. Robust four hole base fixing and supplied with fixing kit comprising of spacers to avoid over tightening and neoprene washers to absorb the shock of crashing down on waves at speed. With the factory fitted tricolour navigation light and four meters of cable...
£179.99 inc VAT
Echomax EM 230BR Radar Reflector Firdell Blipper ReplacementEchomax EM 230BR Radar Reflector Firdell Blipper Replacement
Echomax EM 230BR Radar Reflector Firdell Blipper Replacement
Echomax EM 230BR has all of the reliability and responses of the EM 230 but with a restyled case with fixing centres of 545mm and designed as a direct replacement for the Firdell Blipper 210-7 utilising existing bracket installation on mast. Dimensions: Diameter 245mm Fixing Centres 545mm Height 595mm Wt 2.3kgs
£134.95 inc VAT

Echomax EM 305PE Radar Reflector
Echomax EM 305PE Radar Reflector
The Echomax EM305PE is a popular high response radar reflector with a robust Polyethylene case and is suitable for large 15 - 20 metres size vessels. Following a year of sea trials the US Navy SubPac Division Hawaii chose the original EM305 glass fibre cased unit for enhanced visibility upon surfacing for their fleet of Nuclear Submarines and subsequently the introduction of the new polyethylene...
£249.00 inc VAT
Echomax EMA03i Inflatable Radar Reflector
Echomax EMA03i Inflatable Radar Reflector
Echomax Inflatable Radar Reflector which is an ideal addition for a Grab Bag in emergency use. SOLAS approved for use in liferafts and lifeboats, it has a radar cross sectional area of 20sq/m. Metax array with PVC case Integral non-return air valve Folds neatly to pocket size Size inflated: 615mm diameter Size packed: 230 x 305mm Weight: 599gms Can be suspended from a halyard or for dinghy...
£98.50 inc VAT
Echomax EM230i Inflatable Radar Reflector
Echomax EM230i Inflatable Radar Reflector
Echomax EM230i Inflatable Radar Reflector (Cylindrical), is ideal for emergency use & exceeding RORC requirements, this inflatable radar reflector folds down neatly to pocket size and is an ideal addition to a grab bag. It has an impressive radar cross-sectional area of 25.6sq/m (ISAF, ORC, RORC & WCC regulations require 10sq/m) Metallized, lacquered & spunbonded fabric fabric array...
£109.95 inc VAT

Echomax Mast Mounting Bracket for EM180
Echomax Mast Mounting Bracket for EM180
Echomax stainless steel Mast Mounting Brackets for EM180 Utilising the Echomax stainless steel mast brackets fit the reflector as high as possible on the mast, using Monel or stainless steel rivets (3/16 x 1/2 inch 4.8 x 12.7mm). To avoid electrolytic action use closed cell foam or Duralac paste between bracket and mast. Firstly fix top bracket to mast in the required position, measure distance...
£35.95 inc VAT
Echomax Deck Mount for EM 180 Radar Reflector
Echomax Deck Mount for EM 180 Radar Reflector
Stainless Steel Deck Mount for EM 180, the Echomax should not be mounted on the same plane as a radar horizontal beam width transmission of 22/25 degrees. Install ideally above the radar on a purpose made loop,  Being a passive device mounting in close proximity to other antenna will not affect their performance electrically but may restrict/shadow their reception/transmission of the signal...
£154.95 inc VAT
Echomax Mast Mounting Bracket for EM230
Echomax Mast Mounting Bracket for EM230
Echomax Mast Mounting Bracket for EM230, EM230 Midi and EM230BR Utilising the Echomax stainless steel mast brackets fit the reflector as high as possible on the mast, using Monel or stainless steel rivets (3/16 x 1/2 inch 4.8 x 12.7mm). To avoid electrolytic action use closed cell foam or duralac paste between bracket and mast.  Firstly fix top bracket to mast in the required position, measure...
£38.95 inc VAT

Echomax Deck Mount for EM 230BR Radar Reflector
Echomax Deck Mount for EM 230BR Radar Reflector
Stainless Steel Deck Mount for EM 230BR, Echomax should not be mounted on the same plane as a radar horizontal beam width transmission of 22/25 degrees. Install ideally above the radar on a purpose made loop,  Being a passive device mounting in close proximity to other antenna will not affect their performance electrically but may restrict/shadow their reception/transmission of the signal...
£154.95 inc VAT
Echomax Base Mount QD Quick Detachment AdaptorEchomax Base Mount QD Quick Detachment Adaptor
Echomax Base Mount QD Quick Detachment Adaptor
Echomax 230 Quick Detachment Adaptor, Echomax QD Adapter plates - Fit and remove in seconds! Enables the Extreme or Compact basemounts to be quickly removed from the cabin roof or A-frame to avoid damage by trees or low objects when trailering or restrictive barn or garage entrances. Made from robust 3mm stainless plate with welded 12mm stainless fittings. 4 x 6mm fixings @ 80 mm centres 150mm...
£64.95 inc VAT
Echomax Deck Mount for EM 230 Midi Radar Reflector
Echomax Deck Mount for EM 230 Midi Radar Reflector
Deck Mount for EM 230 Mini  Echomax should not be mounted on the same plane as a radar horizontal beam width transmission of 22/25 degrees. Install ideally above the radar on a purpose made loop,  Being a passive device mounting in close proximity to other antenna will not affect their performance electrically but may restrict/shadow their reception/transmission of the signal particularly...
£159.95 inc VAT

Echomax Deck Mount for EM 305PE Radar Reflector
Echomax Deck Mount for EM 305PE Radar Reflector
Deck Mount for EM 305PE, Echomax should not be mounted on the same plane as a radar horizontal beam width transmission of 22/25 degrees. Install ideally above the radar on a purpose made loop,  Being a passive device mounting in close proximity to other antenna will not affect their performance electrically but may restrict/shadow their reception/transmission of the signal particularly VHF...
£224.00 inc VAT
Echomax Fiberglass Rod Fixing Kit for Inflatable Radar Reflectors
Echomax Fiberglass Rod Fixing Kit for Inflatable Radar Reflectors
Echomax Fiberglass Rod Fixing Kit Glass fibre rod fixing kit for mounting echomax inflatable radar reflectors
£35.95 inc VAT
