Transducers

5m extestension cable for 8 pin Airmar Transducers.

Raymarine Adapter Cable for MotorGuide Transducer to Element HV (15-pin)

Raymarine Airmar Embedded Transducer Junction Box

The perfect addition to the Raymarine Axiom XL display.

ST800/B120 Speed Transducer .

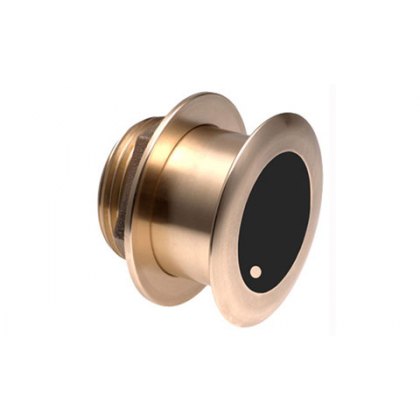

Raymarine T70075 B175LH 20 Degree Pair Thru Hull Chirp Transducers. PAIR of CHIRP Transducers, Depth/Temp, 20 Tilt, MFG# T70075, Narrow beamwidth Broadband CHIRP technology, 40KHz-60KHz and 130KHz-210KHz. Low-profile B164 style bronze housing w/ 20 tilted element.

B175 LM Bronze Low Profile Thru-Hull 20 Degree Tilted Element Transducer 1kW Low / 1kW High. Power (RMS) : L: 1kW / M: 1kW. Max Depth (Ft) : L: 2,500 / M: 1,500. Frequency (KHz) : L: 40-60 / M: 85-135. Beam Width (L/M) : L: 32°-21° / M: 24°-16°. Records : Depth / Temperature. Approved Hull Material : Fiberglass / Wood. Cable Length (Ft/M) : 33ft / 10m. Supported Deadrise / Transom Angles : 16-24° Deadrise.

The B175H-W Wide Beam is a low profile Bronze through hull single element CHIRP transducer

The B175M is a low profile Bronze through hull single element CHIRP transducer.

This wide beam transducer features a constant 25 degree beam angle for the entire High CHIRP spectrum. The result is improved shallow water coverage while maintaining the high resolution capabilities associated with the High CHIRP channel. Available in a variety of configurations, there is a wide beam transducer solution for almost any vessel.

Depth and Temperature Transducer

The B75H is a low profile Bronze through hull single element CHIRP transducer.

The B765LH CHIRP Depth and Temperature Through Hull Bronze Transducer

Dragonfly CPT-80 Bronze through hull transducer with fairing block with 10m cable, can be used with all Dragonfly units but requires adaptor cable A80278 when connecting to older units with red looking collars.

Raymarine T909 Compass Transducer. Combined with the Raymarine T121 Hull Transmitter, the Compass Transducer can be transmit data to Tacktick Micronet Displays wirelessly.

Up to 1,000 watts of power to track the sea floor down to 1,500m. High performance dual-frequency (50/200kHz) sonar for coastal and offshore fishing. Track the bottom in extreme conditions with advanced ClearPulse signal processing. New and improved bottom tracking algorithms deliver reliable performance in challenging conditions like running at high speeds and transitioning across canyons. Smarter target intensity controls reveal bait and game fish with exceptional clarity. Enhanced digital filtering reveals fish targets through the entire water column. Spend less time looking for fish, and more time fishing. CP370 takes the guesswork out of interpreting the sonar display. IPX6 Waterproof. Compatible with E-Classic, C-Widescreen, E-Widescreen, aSeries, cSeries, eSeries, gS Series.

Superior target definition and enhanced sensitivity using Raymarine’s exclusive wide spectrum CHIRP sonar technology. Target fish, identify bait, and track the sea floor down to 3,000 m. With 10 times the resolution of ordinary sonars, the CP470 & CP570 deliver sharper, more defined fish targets and automatically filter out unwanted noise so you never miss the action below. TruZoom magnification mode reveals extra target detail without any loss of resolution. Choose optional low, medium, and high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences. Automatically recognizes connected transducers and adjust parameters for optimized performance. View and control each CHIRP channel independently and create your own combination of full or split screen sonar windows on Raymarine’s LightHouse II powered multifunction displays. IPX6 Waterproof. Compatible with aSeries, cSeries, eSeries, gS Series.

Superior target definition and enhanced sensitivity using Raymarine’s exclusive wide spectrum CHIRP sonar technology. Target fish, identify bait, and track the sea floor down to 3,000 m plus Hunt for fish in different parts of the water column simultaneously with two fully independent 2kW sonar channels. With 10 times the resolution of ordinary sonars, the CP470 & CP570 deliver sharper, more defined fish targets and automatically filter out unwanted noise so you never miss the action below. TruZoom magnification mode reveals extra target detail without any loss of resolution. Ultra-fast ping rate processing delivers accurate bottom tracking in extreme offshore conditions. Choose optional low, medium, and high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences. Automatically recognizes connected transducers and adjust parameters for optimized performance. View and control each CHIRP channel independently and create your own combination of full or split screen sonar windows on Raymarine’s LightHouse II powered multifunction displays. IPX6 Waterproof - also features a rugged aluminium enclosure. Compatible with aSeries, cSeries, eSeries, gS Series.

Specialized dual-channel CHIRP transducers that incorporate a conical beam for fish targeting and an ultra wide fan shaped beam for photo-like DownVision sonar images. CHIRP DownVision transducers are available in both transom and thru-hull configurations. CPT-110 plastic ThruHull CHIRP DownVision transducer 10m cable inc Fairing block. Direct connect to CP100 and A68, A78, A98, 128,...

Raymarine's exclusive line of DownVision transducers pair a conical CHIRP fishfinding element with a wide beam DownVision element. The result is an unrivalled level of subsurface visibility.

Transducer, Depth & Temp, Dragonfly only (10m cable)

CPT-S bronze through hull 12 deg angled element CHIRP sonar transducer. Direct connect to CP100 and a68, a78, 98, 128, eS78, eS98, eS128 Multifunction Displays giving you CHIRP quality sonar 2D image.

Bronze Through Hull Angled Element CHIRP Sonar Transducer. 20° version for boats with 15° - 25° deadrise Compatible with Axiom, a series and eS series (Sonar enabled models).

CPT-S Plastic Conical High Chirp Through Hull 12 Degree Transducer
