To assist you in ordering the correct wiper motors/arms/blades.. please use the link below for the 'Wiper Configurator' pages.
Wiper Configurator (Opens in new tab)
You can then view the summary tab and it will tell you the blade, arm and motor.
Just make sure you enter the correct dimensions!
(Tool only available on tablet/computer - not mobile devices)
C.Quip Adjustable Pantograph Wiper Arm 305-355mm
Adjustable parallel pantographic wiper arms constructed of stainless steel & brass (backed black) with a 7mm prong.
These wiper arms give a parallel sweep so that the wiper blade clears more of the screen giving a greater unobstructed view.
For heavy duty wiper motors with parallel splined shaft.
Heavy Duty Fixed parallel (Pantographic) Arms constructed of Stainless Steel & Brass....

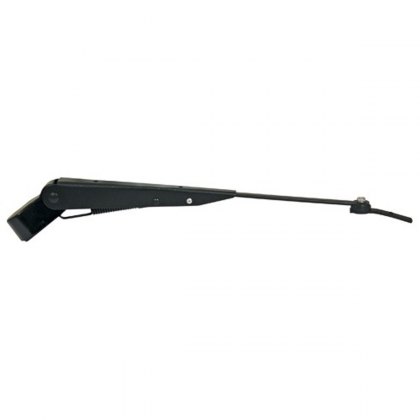

Marinco Wiper Arm Deluxe SS Articulating Black
DELUXE ADJUSTABLE WIPER ARM
All arms are stainless steel
Arm has "articulating/bend-back" feature
Motor shaft mounting has additional set screw clamping
Marinco Wiper Arm Deluxe SS Articulating Stainless finish
DELUXE ADJUSTABLE WIPER ARM
All arms are stainless steel
Arm has "articulating/bend-back" feature
Motor shaft mounting has additional set screw clamping
Marinco Wiper Arm Pantographic SS Articulating Black
Deluxe Adjustable Pantographic Arm
For Use with Marinco 2.5, 1.5 and MRV Motors
Stainless steel
Arm has "articulating/bend-back" feature
Motor shaft mounting has additional set screw clamping
Pantographic wiper arms will only function properly with wiper motor sweep angles 80º or less.
C.Quip Adjustable Pantograph Wiper Arm 380mm - 432mm
Adjustable parallel pantographic wiper arms constructed of stainless steel & brass (backed black) with a 7mm prong.
These wiper arms give a parallel sweep so that the wiper blade clears more of the screen giving a greater unobstructed view.
For heavy duty wiper motors with parallel splined shaft.
For Motors with 16mm dia.
We strongly advise that if you have or are fitting...
C.Quip Adjustable Pantograph Wiper Arm 432mm - 558mm
Adjustable parallel pantographic wiper arms constructed of stainless steel & brass (backed black) with a 7mm prong.
These wiper arms give a parallel sweep so that the wiper blade clears more of the screen giving a greater unobstructed view.
For heavy duty wiper motors with parallel splined shaft.
We strongly advise that if you have or are fitting a Vetus wiper motor, fit Vetus wiper...
Light Duty Stainless Steel Adjustable Wiper Arm
Stainless steel adjustable windscreen wiper arms with 5mm prong, suitable for wiper motors with 9mm dia. shaft
Length: 190 - 280mm - Silver Finish
Length: 254 - 355mm - Silver Finish
We strongly advise that if you have or are fitting a Vetus wiper motor, fit Vetus wiper arms rather than combining Vetus and C-Quip products.
Heavy Duty Stainless Steel Wiper Arm
Heavy Duty Stainless Steel Adjustable Windscreen Wiper Arms.
7mm prong for wiper blade attachment
For wiper motors with 16mm dia. threaded shaft (13mm dia spline)
We strongly advise that if you have or are fitting a Vetus wiper motor, fit Vetus wiper arms rather than combining Vetus and C-Quip products.
Vetus Black Single Wiper Arm for RW Motor 280-366mm
Vetus wiper arms are high quality with stainless steel parts and black components are made from top-grade synthetic materials.
Suits Vetus wiper motors RWS with splined attachment
Vetus model RWAS
Adjustable length 280-366mm
7mm blade attachment
Vetus Black Single Wiper Arm for RW Motor 395-481mm
Vetus wiper arms are high quality with stainless steel parts and black components are made from top-grade synthetic materials.
Suits Vetus wiper motors RWS with splined attachment
Vetus model RWAS
Adjustable length 395-481mm
7mm blade attachment
Vetus Black Single Wiper Arm for RW Motor 473-559mm
Vetus wiper arms are high quality with stainless steel parts and black components are made from top-grade synthetic materials.
Suits Vetus wiper motors RWS with splined attachment
Vetus model RWAX
Adjustable length 473-559mm
7mm blade attachment
Vetus Stainless Steel Single Wiper Arm for RW Motor 280-366mm
Vetus arms are made entirely from high-gloss polished stainless steel (AISI 316). Suitable for boats, RV's and Plant Machinery, not only are they very strong and durable, but in combination with Vetus polished wiper blades, they will enhance the appearance of any boat.
Suits Vetus wiper motors RWS with splined attachment
Vetus model SSAS
Adjustable length 280-366mm
7mm blade attachment
Vetus Stainless Steel Single Wiper Arm for RW Motor 395-481mm
Vetus arms are made entirely from high-gloss polished stainless steel (AISI 316). Suitable for boats, RV's and Plant Machinery, not only are they very strong and durable, but in combination with Vetus polished wiper blades, they will enhance the appearance of any boat.
Suits Vetus wiper motors RWS with splined attachment
Vetus model SSAL
Adjustable length 395-481mm
7mm blade attachment
Vetus Stainless Steel Single Wiper Arm for RW Motor 473-559mm
Vetus arms are made entirely from high-gloss polished stainless steel (AISI 316). Suitable for boats, RV's and Plant Machinery, not only are they very strong and durable, but in combination with Vetus polished wiper blades, they will enhance the appearance of any boat.
Suits Vetus wiper motors RWS with splined attachment
Vetus model SSAX
Adjustable length 473-559mm
7mm blade attachment
Vetus Black Parallel Wiper Arm for RW Motor 308-393mm
Vetus adjustable dual or pantograph wiper arms are high quality with stainless steel parts and black components are made from top-grade synthetic materials. All Vetus Parallel Wiper arms are shipped with an RWASET to convert the single spindle motors to pantograph type.
Suits Vetus wiper motors RWS with splined attachment
Vetus model RWAD
Adjustable length 308-393mm
7mm blade attachment
Vetus Black Parallel Wiper Arm for RW Motor 386-471mm
Vetus adjustable dual or pantograph wiper arms are high quality with stainless steel parts and black components are made from top-grade synthetic materials. All Vetus Parallel Wiper arms are shipped with an RWASET to convert the single spindle motors to pantograph type.
Suits Vetus wiper motors RWS with splined attachment
Vetus model RWADX
Adjustable length 386-471mm
7mm blade attachment
Vetus Black Single Wiper Arm for DIN Motor 280-366mm
Vetus wiper arms are high quality with stainless steel parts and black components are made from top-grade synthetic materials.
Suits Vetus wiper motors with DIN attachment
Vetus model DINPS
Adjustable length 280-366mm
7mm blade attachment
Vetus Black Single Wiper Arm for DIN Motor 395-481mm
Vetus wiper arms are high quality with stainless steel parts and black components are made from top-grade synthetic materials.
Suits Vetus wiper motors with DIN attachment
Vetus model DINPS
Adjustable length 395-481mm
7mm blade attachment
Vetus Black Single Wiper Arm for DIN Motor 473-559mm
Vetus wiper arms are high quality with stainless steel parts and black components are made from top-grade synthetic materials.
Suits Vetus wiper motors with DIN attachment
Vetus model DINPX
Adjustable length 473-559mm
7mm blade attachment
Vetus Black Parallel Wiper Arm for DIN Motor 308-393mm
Vetus adjustable dual or pantograph wiper arms are high quality with stainless steel parts and black components are made from top-grade synthetic materials. All Vetus Parallel Wiper arms are shipped with an RWASET to convert the single spindle motors to pantograph type.
Suits Vetus wiper motors with DIN attachment
Vetus model DINPD
Adjustable length 308-393mm
7mm blade attachment
Vetus Black Parallel Wiper Arm for DIN Motor 386-471mm
Vetus adjustable dual or pantograph wiper arms are high quality with stainless steel parts and black components are made from top-grade synthetic materials. All Vetus Parallel Wiper arms are shipped with an RWASET to convert the single spindle motors to pantograph type.
Suits Vetus wiper motors with DIN attachment
Vetus model DINPDX
Adjustable length 386-471mm
7mm blade attachment
Light Duty Wiper Blade - 5mm
Stainless steel straight blades with 5mm receptacle to fit light duty wiper motor and arm.
Available in 2 sizes.
Marinco Deluxe SS Wiper Blade - CURVED
Marinco 34014S Deluxe stainless steel wiper blade will fit Marinco Premier and Deluxe wiper arms.
The windscreen wiper blade features extra squeegee "claws" that spread pressure evenly over the length of the blade, allowing the blade to fit to a curved windscreen.
Boat wiper blade with a stainless steel construction and a marine grade silicone squeegee.
Marine Wiper Blades
Natural rubber profile with stainless steel backer, including two adaptors to fit wiper arms with straight connection or J-hook connection.
(L) 280mm
(L) 305mm
(L) 330mm
(L) 355mm
(L) 380mm
(L) 405mm
(L) 430mm
(L) 455mm
(L) 480mm
(L) 508mm
(L) 533mm
(L) 560mm
C.Quip Heavy Duty Curved Wiper Blade
Discontinued product, please see this listing....
Marinco Deluxe SS Wiper Blade - CURVED
Black Sturdy Plastic Curved Blades with 7mm receptacle, to suit heavy duty wiper arm and motor.
Select length from drop-down menu.
Vetus Polished Stainless Steel Wiper Blade
Wiper blades are available in lengths of 305 mm, 410 mm or 508 mm.
The metal parts of the blades are made of high-gloss polished stainless steel.
These blades will fit almost all makes and types of wiper arms with a tang of 7.2 x 2.5 mm
Vetus Stainless Steel Black Coated Wiper Blade
Wiper blades are available in lengths of 305 mm, 410 mm or 508 mm. The metal parts of the blades are made of stainless steel with a black coating. These blades will fit almost all makes and types of wiper arms with a tang of 7.2 x 2.5 mm
Light Duty Std Wiper Motor
Light duty windscreen wiper motor, manufactured for boats in corrosion resistant materials.
Designed for frame mount
Shaft length 63mm - dia. 9mm
110º sweep
Switched live with self park facility
Arm & Blade sold separately
Vetus Complete Wiper Motor Set Type ORW - 12 Volt
Vetus Wiper Type ORW12SET - Only available as a complete set comprising motor, arm and blade.
This wiper blade is made of black synthetic and is available as a spare part, the arm length is adjustable from 280 to 366 mm and the motor is self-parking, has a single speed and a wiping angle of 80º or 110º.
Type ORW12SET meets all the EMC requirements.
Complete set comprising motor,...
Vetus Windscreen Wiper Motor Knurled Parallel End
These high quality marine windscreen wipers feature a powerful electric motor and separate worm wheel transmission.
The wiping angle may be adjusted to 8 different settings, which means that the ideal wiping pattern can be found for almost any shape and size of window.
Features industry standard straight knurled shaft end (Ø16 mm, 72 teeth) for arm attachment and 2 variations on shaft...
Vetus Windscreen Wiper Motor DIN End
These high quality marine windscreen wipers feature a powerful electric motor and separate worm wheel transmission.
The wiping angle may be adjusted to 8 different settings, which means that the ideal wiping pattern can be found for almost any shape and size of window.
Features industry standard DIN thread for arm attachment and 2 variations on shaft length.
Use with DIN attachment single...
Vetus Plastic Cover for Wiper Motors type RW and DIN
Plastic cover for wiper motors type RW and DIN (complete with bottom plate).Installation of the plastic cover reduces the indicated maximum panel thickness by 3 mm. When using the wiper arm type AD, the maximum panel thickness is reduced by 6 mm and with the arm type SSAD by 3 mm.
Marinco/AFI 1000 12v Waterproof Wiper Motor 2-1/2' Shaft 80º
The AFI 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. Really tough and durable and especially suited to vessels which need reliability and effective clearance of spray and rainwater from the windscreen. The AFI 1000 wiper motor is supplied with a pre-set sweep angle of 80º although adjustable to other angles...
Vetus Rocker Switch For Windscreen Wipers
Three-position switch (off,1,2) suitable for a single two-speed wiper motor.
Use with Vetus wiper motors RWS, DIN and HDMC but not suitable for model ORW.
Max. switching current: 20A
Max. panel thickness: 6mm
Vetus Rotary Windscreen Wiper Switch
Three-position switch (off,1,2) for one wiper motor. Type HDMSW, for two-speed wiper motors.
Suitable for wiper motors RWS, DIN and HDMC.
Not suitable for model ORW.
Max. switching current:
20A Max.
Panel thickness:7 mm
