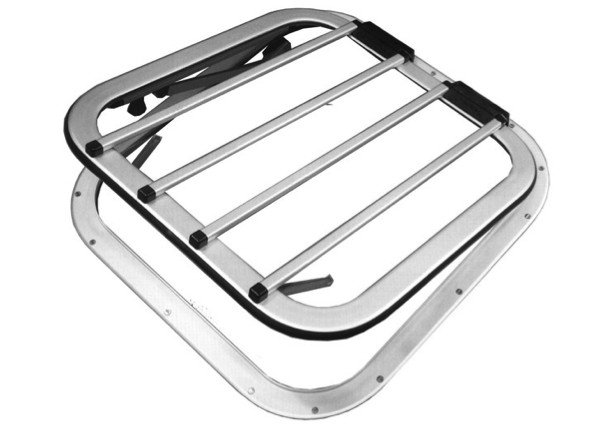

Houdini Super 50 Foredeck Hatch

The world renowned and instantly recognisable the Houdini foredeck deck hatch has been in production for over thirty years.

There are few marinas in the world where you cannot find boats fitted with Houdini hatches as they are robustly constructed using quality materials and are fitted with toughened glass. When compared to acrylic glazing used in most deck hatches toughened glass will not scratch as easily or suffer UV degradation. This means that the hatch will maintain its appearance and give many years of trouble free service.

Houdini hatches enjoy a reputation for being functional watertight and economically priced. The most popular of Houdini Hatches, Model 5 is often referred to as the Super 50 Hatch. With an above deck height of a mere 25mm these hatches are extremely streamlined and cause minimum obstruction on the deck.

Features:

• Hatches are CE marked for compliance with ISO12216 standard
• Marine grade aluminium (HE9) silver satin anodised as standard.
• Aluminium alloy safety bars.
• All joints sealed against ingress of water fish-plated and screwed.
• Seal is extruded synthetic rubber.
• Grey tinted toughened glass fitted as standard.
• Two casement handles

Aperture Size 500 x 500mm

Aperture Radius 100mm

Overall Size 534 x 534mm

Clear Opening Size 470 x 470mm

Glass Thickness 6mm

Ventilation Stay - Yes

Optional Adjustable Stays - Yes

Fixings: Requires 16 x M5 A4 stainless steel csk set bolts
