Quick R04 Radio Receiver

Product Description

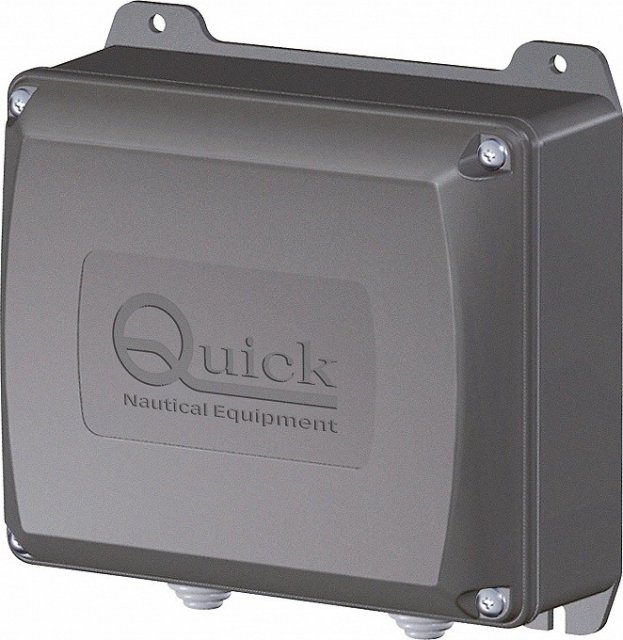

The Quick R04 is a 4 channel receiver specifically suited to the Quick 4 button radio remote controls for windlasses and thrusters.

• Full power range (from 10.5 to 31Vdc).
• Microcontroller-operated functions.
• FSK modulation.
• Operating temperatures from -15°C to +70°C.
• Indication of the system operating status, errors and problems by means of LED and seven-segment display.
• Protection against polarity inversion.
• Protection against low battery.
• 50 transmitters can be stored.
• Translation mode to activate more receivers, installed in different spots, by means of one transmitter.
• Programmable digital filter.
• Possible connection to an external antenna.
