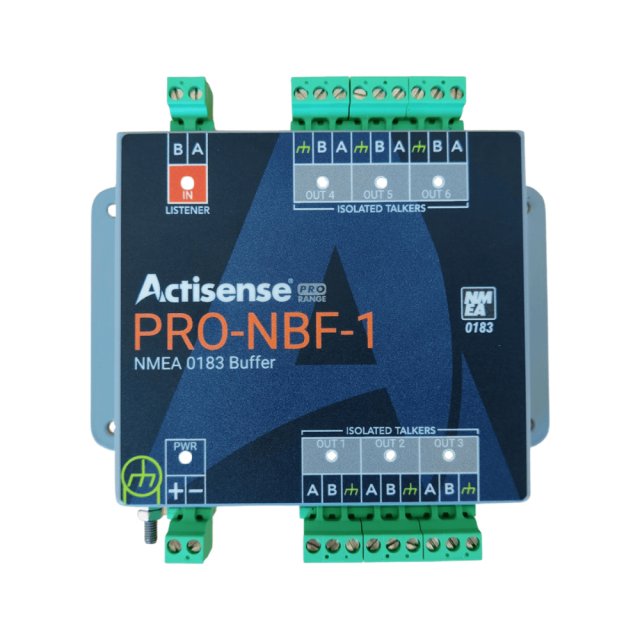

Actisense PRO-NBF-1 Professional NMEA 0183 Buffer
Item: PRO-NBF-1
MPN: PRO-NBF-1
The Type approved NMEA Buffer PRO-NBF-1 Buffer isolates and buffers NMEA 0183 data, with the power to drive multiple devices. Able to distribute up to six identical, amplified streams of data from one source the NMEA signals are buffered to ensure that each Listener receives the data at the required voltage levels, providing consistent data quality.
login to saveProduct Description
One Opto-Isolated Input Six ISO-Drive outputs Outputs automatically track the input baud rate RS-232, RS-422 and RS-485 Listener compatible ISO-Drive separates the Listener from the Talker to protect both the NBF-3 and each connected device Wide compatibility meaning simplified installation Simple installation saves time and money and provides peace of mind Type Approved (RINA) The NMEA Buffer has ISO-Drive technology on the outputs and OPTO-isolation on the input which enables you to connect the NMEA 0183 Buffer with complete peace of mind. The stainless steel housing makes the device rugged, sturdy and gives increased durability. The metal case also acts as an RF Shield making the device an ideal addition to commercial installations. To make installation quick and simple the PRO-NBF-1 features 2-part pluggable connectors that allow use of screw terminals, and a professional DIN Rail mounting system (DIN Rail not included). The device can also be mounted directly to the bulkhead. The optional strain relief brackets can be provided to ensure reliable professional cable management. Helpful LEDs indicate power, input, and output operation.Collect in Store
This item is available for collection.
