Clamcleat CL203 Junior Rope Cleat
Clamcleat Junior CL203 rope cleat with fairlead suitable for most dinghy applications.
Suitable for 3-6mm dia. rope
Black plastic
Fixings: 2 x No.8csk screws - 5/32 rivets - M4 csk set bolt
Clamcleat CL209 Midi Rope Cleat
Clamcleat Midi CL209 rope cleat without fairlead suitable for most dinghy applications.
Suitable for 4-8mm dia. rope
Black plastic
Fixings: 2 x No.8csk screws - 5/32 rivets - M4 csk set bolt
Clamcleat CL205 Major Rope Cleat
Clamcleat Major CL205 rope cleat without fairlead suitable for most dinghy and dayboat applications.
Suitable for 10-16mm dia. rope
Black plastic
Fixings: 2 x No.14csk screws - 5/16 rivets - M8 csk set bolt

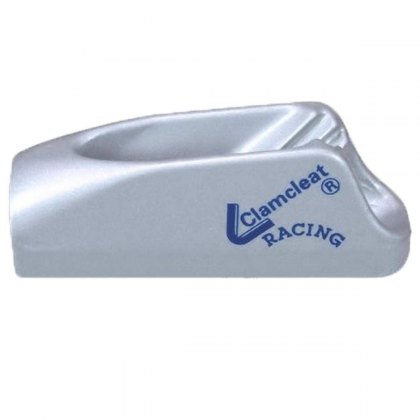

Clamcleat C211 MK2 Racing Junior Rope Cleat
Clamcleat Racing Junior CL211 MK2 rope cleat with fairlead suitable for most dinghy applications.
Suitable for 3-6mm dia. rope
Available in silver or hard anodised finish.
Fixings: 2 x No.8csk screws - 5/32 rivets - M4 csk set bolt
Clamcleat C217 M1 Starboard Side Entry
Clamcleat Junior CL217 rope cleat with side entry fairlead suitable for most dinghy applications.
Suitable for 3-6mm dia. rope
Side entry fairlead allows ropes to be hooked in for cleating, yet easily removed
Available in silver or hard anodised finish.
Fixings: 2 x No.8csk screws - 5/32 rivets - M4 csk set bolt
Clamcleat C217 M2 Starboard Side Entry
Clamcleat Junior CL217 MK2A rope cleat with side entry fairlead suitable for most dinghy applications.
Suitable for 3-6mm dia. rope
Side entry fairlead allows ropes to be hooked in for cleating, yet easily removed
Hard anodised finish.
Fixings: 2 x No.8csk screws - 5/32 rivets - M4 csk set bolt
Clamcleat C218M1 Port Side Entry
Clamcleat Junior CL218 rope cleat with side entry fairlead suitable for most dinghy applications.
Suitable for 3-6mm dia. rope
Side entry fairlead allows ropes to be hooked in for cleating, yet easily removed
Available in silver or hard anodised finish.
Fixings: 2 x No.8csk screws - 5/32 rivets - M4 csk set bolt
Clamcleat C236 MK1 Racing Rope Cleat with Roller
Clamcleat Junior CL236 MK1 Racing rope cleat with top roller suitable for most dinghy applications. The top roller allows ropes to enter the cleat from above and is also ideal for sun umbrellas, shades and sun sails.
Suitable for 3-6mm dia. rope
Available in silver or hard anodised finish.
Fixings: 2 x No.8csk screws - 5/32 rivets - M4 csk set bolt
Clamcleat C253 Trapeze & Vang Rope Cleat
Clamcleat CL253 trapeze and vang rope cleat with roller suitable for most dinghy applications.
Suitable for 4-8mm dia. rope
Dinghy trapeze line adjustment
Vangs & Kicking strap adjustment
Supplied with a black Link (PTLINK). This makes releasing the rope a lot easier
Available in silver or hard anodised finish.
Fixings: 2 x No.8csk screws - 5/32 rivets - M4 csk set bolt
Clamcleat CL215 Midi Side Fixing Rope Cleat
Clamcleat Side Fixing Midi CL215 rope cleat without fairlead suitable for most dinghy applications.
Suitable for 4-8mm dia. rope
Black plastic
Fixings: 2 x No.8csk screws - 5/32 rivets - M4 csk set bolt
Clamcleat CL202 Horizontal Black Nylon
Clamcleat CL202 horizontal, low profile black nylon cleat. Can either hold two ropes or a single rope can be cleated on either side.
Rope Diameter: 6-10mm
Material: Nylon
Hole Centres: 51mm
Length: 74mm
Width: 79mm
Height: 20mm
Bolt Size: M6
Screw Size: 6.3mm (No 14)
Clamcleat CL238 Racing Vertical + Spring Gate Silver
CL238 Racing Vertical with Spring Gate
When using the Clamcleat CL238, the red gate is flipped up by hand to keep the rope out of the alloy cleat and prevent unintentional entry of the rope into the cleat.
Rope Diameter: 6 - 12mm
Material: Aluminium
Hole Centres: 72mm
Length: 91mm
Width: 40mm
Height: 33mm
Bolt Size: M6
Screw Size: 6.3 (No 14)
Clamcleat CL235 Boom Cleat - Nylon Cleat and Clamp
Nylon one piece cleat & clamp that fits tube diameters 30-32mm (1 1/8" - 1 1/4"), quickly fitted with the 2 screws that are supplied with each cleat
Ideal for sun sails, flag poles and tubes
Rope Diameter: 3-6mm
Length: 67mm
