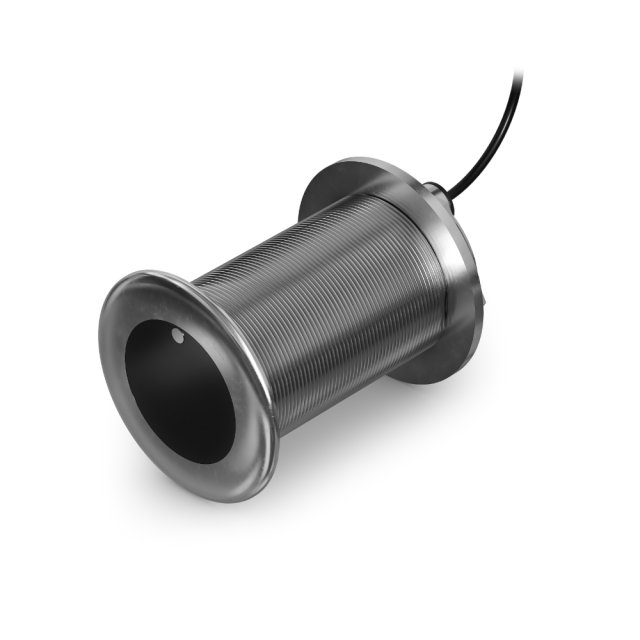

Garmin GT15M-THF 20° Tilt 8 Pin Stainless Steel Thru-Hull Transducer
Item: 010-02868-02
MPN: 010-02868-02
Designed for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 600-watt midband CHIRP transducer clearly defines fish arches, structure and bottom depth returns on your display. 20° supports hull deadrise angles from 16° to 24°.
Product Description
See maximum depth performance to 580m in freshwater Access CHIRP sonar frequency range from 85–165 kHz Search with beamwidths of 16–24 degrees Count on fast-response water temperature sensing Thru-hull design offers flush installation with 0°',' 12° or 20° tilt Auto-ID enables simple plug-and-play operation 20° supports hull deadrise angles from 16° to 24° <style> @media only screen and (max-width: 1023px) .ten } @media only screen and (min-width: 1024px) } .page-header, .product-image-wrapper, .navigation .navigation:hover .page-header:hover .modalDialog .modalDialog:target .modalDialog>div .stop-button .stop-button:hover #compatibility #compatibility td,' #customers th #compatibility tr:nth-child(even) #compatibility tr:hover #compatibility th .modal-header .modal-title .modal-footer .modal-body </style> <div id''links''> <a class''pagebuilder-button-primary'' href''#openModal'' style''text-align: center; font-weight: normal;''> <i class''fas fa-wrench''></i> <span data-element''link_text'' style''font-weight: 600;''> Specification</span> </a> <a class''pagebuilder-button-primary'' href''https://static.garmin.com/pumac/GT12M-THF_GT15M-THF_Transducer%20Install_EN-US.pdf'' target''_blank'' style''text-align: center; font-weight: normal;''> <i class''fas fa-wrench''></i> <span data-element''link_text'' style''font-weight: 600;''> Installation</span> </a> </div> <div id''openModal'' class''modalDialog''> <div> <div class''modal-header''> <h3 class''modal-title''>Technical Specifications</h3> <a class''stop-button'' title''Close'' href''#close'' onclick''go()''>X</a> </div> <div class''modal-body''> <table id''compatibility''> <thead> <tr> <th colspan''2''><strong>General</strong></th> </tr> </thead> <tbody> <tr> <td>Transducer Frequency</td> <td>Medium band CHIRP (85-165kHz)</td> </tr> <tr> <td>Transducer Power</td> <td>600W</td> </tr> <tr> <td>Transducer Beamwidth</td> <td>24°-16°</td> </tr> <tr> <td>Transducer Maximum Depth</td> <td>Saltwater: 365M <br>Freshwater: 580M</td> </tr> <tr> <td>Transducer Cable Length</td> <td>15M</td> </tr> <tr> <td>Depth/Speed/Temperature</td> <td>Depth',' Temperature</td> </tr> <tr> <td>Number of Pins</td> <td>8</td> </tr> <tr> <td>Supported Deadrise / Transom Angles</td> <td>20° supports hull deadrise angles from 16° to 24°</td> </tr> <tr> <td>Housing Material</td> <td>Stainless steel</td> </tr> </tbody> </table> </div> </div> </div> </div>Less Time Finding',' More Time Fishing Designed for reduced drag and optimum sonar performance on midsize fishing and cruising boats', this flush-mounted, 600-watt midband CHIRP transducer clearly defines fish arches, structure and bottom depth returns on your display. See What’s Happening Below the Water Midband CHIRP traditional sonar - This 8-pin, 600-watt stainless steel thru-hull transducer features high-definition midband CHIRP sonar that clearly defines fish targets and structure down to 365m in saltwater and 580m in freshwater. Broad frequency range - Use the perfect frequency for the waters you’re fishing. Covering the medium frequency range, this transducer pulses from 85–165 kHz, displaying a wide coverage area, crisp fish arches and accurate depth readings. Optimum ping sensitivity - Offering excellent sonar sensitivity, low noise, high resolution and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on your compatible chartplotter display. Thru-Hull installation - A durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns. Auto-ID technology - Enjoy simple plug-and-play operation with Garmin auto-identification technology  which enables the sonar to automatically configure itself to the transducer being used. Fits various hull types - Configurable for a wide variety of boat hull materials, including fibreglass, composite, steel, aluminium and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–20 degrees without a fairing block. In The Box GT15M-THF transducer Jam nut Washer Thread isolator Hull isolator DocumentationCollect in Store
This item is available for collection.
