Glydus Hydraulic Steering Kit for Outboards up to 115 Hp

Product Description

#html-body [data-pb-style=UQF6G9G]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}
Standard Wheel Turns : 5 Lock to Lock
# Hose length can be customised as per customers' request.
# For higher or lower number of turns, contact our technical support team

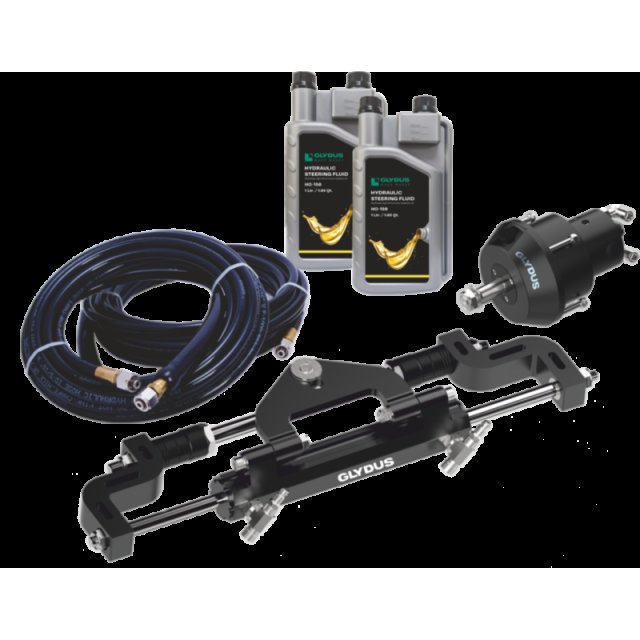

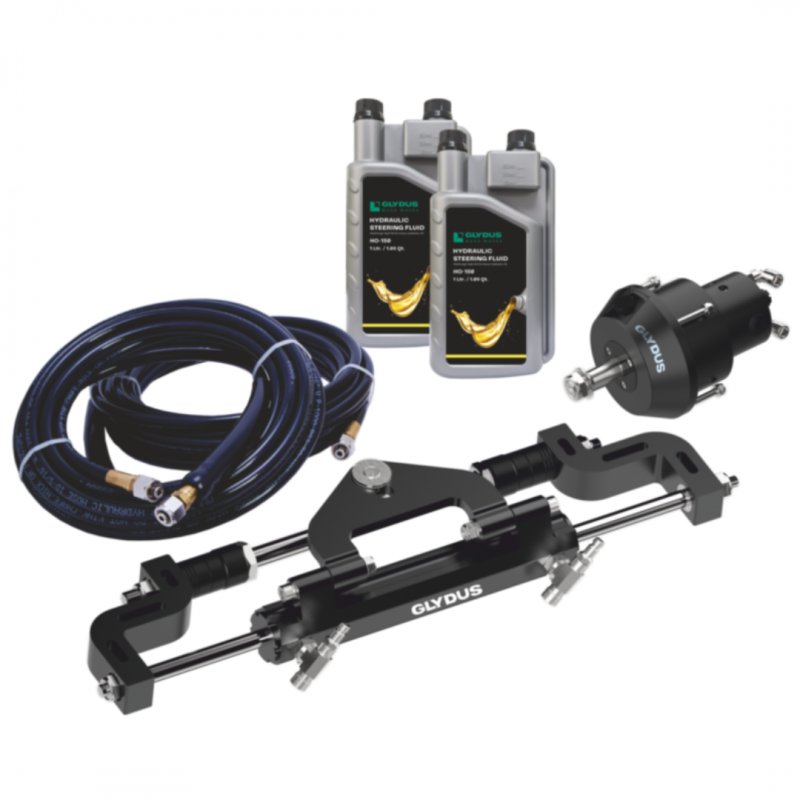

The Standard Steering Kit K115 for Single Cylinder - Single Outboard includes:

Mid Mount Helm Pump 18 cc
Cylinder for Outboards up to 115 Hp
Hydraulic Steering Fluid
Hydraulic Hose 5.0m with factory crimped hose connectors

Before selecting a cylinder from this application guide, please verify the model year of your outboard to ensure you are choosing the correct cylinder for your boat.
*Note - Your splashwell should be wide enough for the installation of the cylinder. Check installation manual for space requirements.
**Note - Johnson 115 HP-2-stroke outboards required the tiller plate to be inverted



Manufacturer
Year
Model
Cylinder
Notes


Honda
1992-Date
30-50 HP 4-Stroke
OC-115U
See Note A


Honda
1996-Date
70-90 HP 4-Stroke
OC-115U



Honda
2015-Date
100 HP 4-Stroke
OC-115U



Honda
1998-2010
115 HP 4-Stroke
NA



Honda
2003-Date
135-115 HP 4-Stroke
OC-115U



Honda
2010-Date
115 HP 4-Stroke
OC-115U



Johnson / Evinrude*
1991-Date
40-115 HP 4-Stroke
OC175
See Note A


Johnson / Evinrude*
1997-Date
115 HP Ficht
OC1751
See Notes C


Johnson / Evinrude*
2017-Date
75-115 HP Ficht
OC1751
Requires Spacer Kit SP1, Note A*


Johnson / Evinrude*
1998-Date
40-115 HP 4-Stroke
OC1751



Mercury / Mariner
1984-Date
75-115 HP
OC-115U
See Note C


Mercury / Mariner
1998-2007
40-60 HP 2-Stroke
OC175N
Requires Spacer Kit SP1, Note A*


Mercury / Mariner
2008-Date
40 HP 4-Stroke
OC350N
Requires Spacer Kit SP1


Mercury / Mariner
2008-Date
60 HP 4-Stroke
OC-115U
See Note A


Selva
2000-Date
25-70 HP 4-Stroke
OC175N
Requires Spacer Kit SP1, Note A*


Selva
2000-Date
90-115 HP 4-Stroke
OC-115U
See Note 5


Selva
2011-2013
115 HP 4-Stroke
OC1751



Suzuki
1986-Date
150 HP 2-Stroke
OC-115U
See Note C


Suzuki
1987-2002
115 HP 2-Stroke
OC-115U
Requires Spacer Kit SP1


Suzuki
1990-2000
90-100 HP 2-Stroke
OC-115U



Suzuki
1998-Date
40-70 HP 4-Stroke
OC-115U
Requires Spacer Kit SP1, Note A*


Suzuki
2001-Date
90-115 HP 4-Stroke
OC1751
Requires Spacer Kit SP1


Tohatsu
1990-Date
40-114 HP 4-Stroke
OC-115U
See Note A


Tohatsu
2014-Date
60-115 HP 4-Stroke
OC-115U



Neander Marine
2017-Date
Dtorque 111-90 HP
OC-175



Yamaha
1998-Date
40-50 HP 2-Stroke
OC-175
See Note A


Yamaha
1998-Date
60 HP 2-Stroke
OC-175
See Note B


Yamaha
1986-Date
70-90 HP 2-Stroke
OC-175
Requires Spacer Kit SP1


Yamaha
1997-Date
80-115 HP 4 Stroke
OC-115U
See Note C


Yamaha
2000-Date
25-70 HP 4 Stroke
OC175N
Requires Spacer Kit SP1, Note A*


Yamaha
2011-2014
90-115 HP Inc. A Series
OC1751



Yamaha
2014-Date
90-115 HP Inc. B Series
OC-115U





A. To avoid problems with outboard trim and tilt, the outboard clamp brackets must be cut or ground down and the outboard should be bolted directly to the transom.
B. Steering hook Yamaha Part # 63D -48511-11JL1J-4D must be installed
C. High performance 115HP outboards and any outboard using a 4-3/4" gear-case such as COMMAND THRUST must use Glydus 3511J HP Cylinder
