Glydus Hydraulic Steering Kit for Outboards up to 175 Hp

Product Description

#html-body [data-pb-style=NDL8SF2]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}
Standard Wheel Turns : 6.8 Lock to Lock
# Hose length can be customised as per customers' request.
# For higher or lower number of turns, contact our technical support team

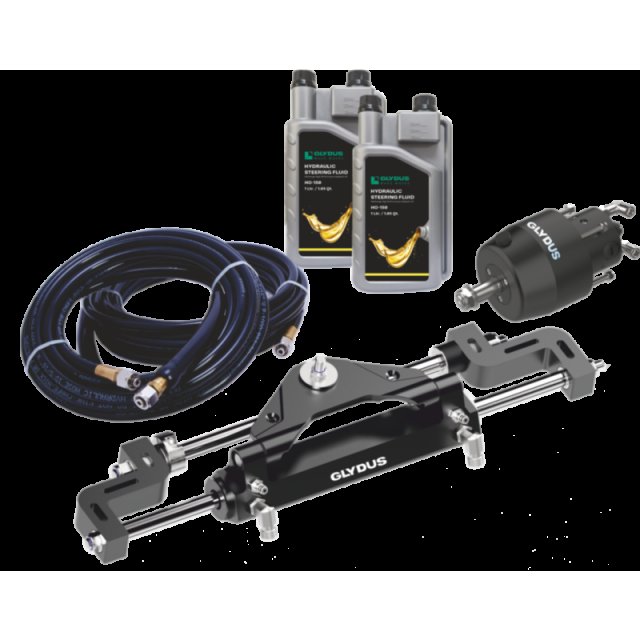

The Standard Steering Kit K175 for Single Cylinder - Single Outboard includes:

Helm Pump 18 cc
Cylinder for Outboards up to 175 Hp
Hydraulic Steering Fluid
Hydraulic Hose 7.5m with factory crimped hose connectors


Glydus K175: Single Engine Application Guide
Before selecting a cylinder from this application guide, please verify the model year of your outboard to ensure you are choosing the correct cylinder for your boat.
Note - Your splashwell should be wide enough for the installation of the cylinder. Check installation manual for space requirements.
*Note: Johnson 115 HP-2-Stroke outboards, required the tiller plate to be inverted




Manufacturer
Year
Model
Cylinder
Notes


Honda
1992-Date
30-50 HP 4-Stroke
OC175
See note A


Honda
1996-Date
75-90 HP 4-Stroke
OC175



Honda
2015-Date
100 HP 4-Stroke
OC175



Honda
1998-2010
115-130 HP 4-Stroke
NA



Honda
2003-Date
135-175 HP 4-Stroke
OC175



Honda
2010-Date
115 HP 4-Stroke
OC175



Johnson / Evinrude*
1991-Date
40-175 HP Inc. E-Tec
OC175
See note A


Johnson / Evinrude*
1997-Date
115 HP Ficht
OC1751



Johnson / Evinrude*
2017-Date
75-115 HP Ficht
OC175
See note C


Johnson / Evinrude*
1998-Date
40-140 HP 4-Stroke
OC1751
Requires Spacer Kit SP1, *Note A


Mercury / Mariner
1984-Date
75-115 HP
OC175
See note C


Mercury / Mariner
1998-2007
40-60 HP 2-Stroke
OC175N
Requires Spacer Kit SP1, *Note A


Mercury / Mariner
2008-Date
40 HP 4-Stroke
OC350N
Requires Spacer Kit SP1


Mercury / Mariner
2008-Date
60 HP 4-Stroke
OC175
See note A


Selva
2000-Date
25-70 HP 4-Stroke
OC175N
Requires Spacer Kit SP1, *Note A


Selva
2000-Date
90-175 HP 4-Stroke
OC175
See note 5


Selva
2011-2013
115 HP 4-Stroke
OC1751



Suzuki
1986-Date
150 HP 2-Stroke
OC175
See note C


Suzuki
1987-2002
115-140 HP 2-Stroke
OC175
Requires Spacer Kit SP1


Suzuki
1990-2000
90-100 HP 2-Stroke
OC175



Suzuki
1998-Date
40-70 HP 4-Stroke
OC175
Requires Spacer Kit SP1, *Note A


Suzuki
2001-Date
90-140 HP 4-Stroke
OC1751
Requires Spacer Kit SP1


Tohatsu
1990-Date
40-140 HP 2-Stroke
OC-175
See note A


Tohatsu
2014-Date
60-175 HP 4-Stroke
OC-175



Neander-Marine
2017-Date
Dtorque 111-90 HP
OC-175



Yamaha
1998-Date
40-50 HP 2-Stroke
OC-175
See note A


Yamaha
1998-Date
60 HP 2-Stroke
OC-175
See note B


Yamaha
1986-Date
70-90 HP 2-Stroke
OC-175
Requires Spacer Kit SP1


Yamaha
1997-Date
80-175 HP 4-Stroke
OC-175
See note C


Yamaha
2000-Date
25-70 HP 4-Stroke
OC-175N
Requires Spacer Kit SP1, *Note A


Yamaha
2011-2014
90-115 HP Inc. A Series
OC-1751



Yamaha
2014-Date
90-115 HP Inc. B Series
OC-175





A - To avoid problems with outboard trim and tilt, the outboard clamp brackets must be cut or ground down and the outboard should be bolted directly to the transom.
B - Steering hook Yamaha Part# 63D-48511-11JL1J-4D must be installed
C - High performance 115HP outboards and any outboard using a 4-3/4" gear case such as a COMMAND THRUST must use Glydus 3511J HP Cylinder
