Hy-Pro Drive HS+50 PC45 ELECTRO-HYDRAULIC SECONDARY STEERING TWIN SYSTEM
MPN: hs+50pc45

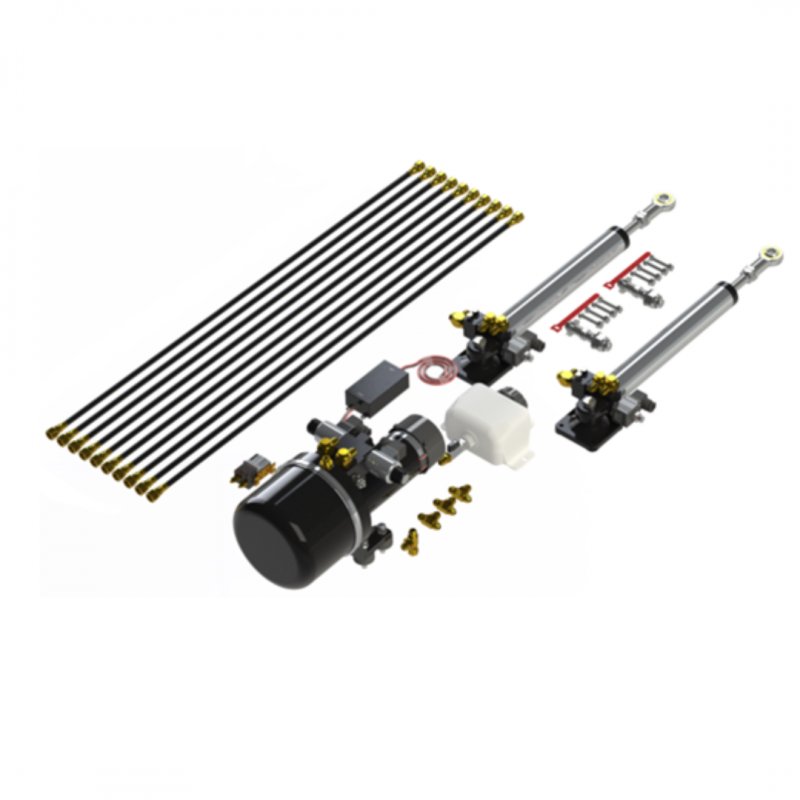

Designed for larger vessels the HS+50 PC45 S comprises 2x HS+50 steering cylinders and the PC45 constant running pump. It comes complete with all hoses, fittings necessary to install and operate the system. It comes in kit form ready for assembly.
login to saveProduct Description
Description
Comprising 2 steering cylinders with integral unloading valves,
a 4.5 l/min constant running pump with directional
solenoids, separate reservoir, and a set of 1000mm hoses + fittings.
The cylinders are supplied with a fitting kit, which includes a tiller pin and quick release tab.
The pump is supplied with a starter relay, to enable the auto pilot to start the motor remotely. Steering is achieved by switching the solenoid operated valve.
Application
Designed specifically for the marine autopilot market and intended for commercial sailboats and power-craft with mechanical steering.
The steering can be unloaded to enable the craft to be steered manually.
Features
Installation Kit included.
12V/24V DC options
Compact twin opposed cylinders.
Integral unloading valves.
Manual override on steering solenoids.
Remote reservoir.
Compatible with many autopilots.
Optional Feedback transducer
Technical data
Voltage 12V/24V DC
Current Typical Amp hour Typical Current
250 Kg 25% duty (intermittent) 2125Kg
12V 24V 12V 24V
10.5Ah 7.5Ah 30.0A 22.5A
Full stroke (No load) 14.7 seconds
Ingress protection
Cylinder IP67
Motor IP44
EMC Protection BS EN 60945:2002 (DC)
Ambient operating
Temperature -15 to + 55 deg C
Max operating
thrust 2125Kg (Intermittent)
Relief valve setting
Cylinder 62 bar
Pump 58 Bar
Clutch coils 12W x2
Clutch connection DIN 43650 (4-9 mm cable) IP67
Fluid ISO VG10 to VG40 hydraulic
mineral fluid to ISO 6743-4 HV
Capacity 6 L
System Weight 28 kg
