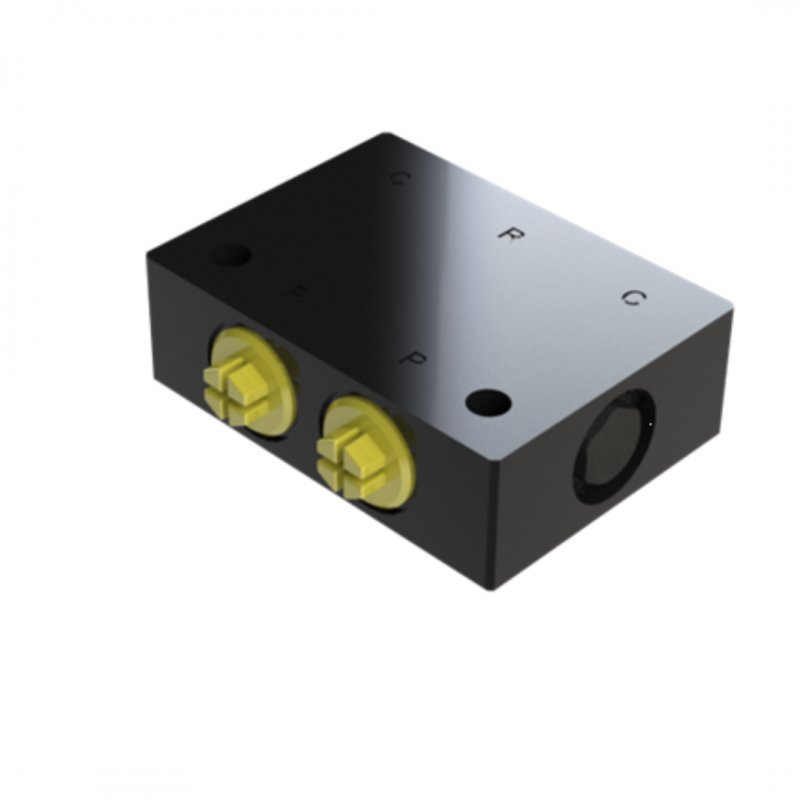

Hy-Pro Drive MARINE AUTOPILOT PILOT OPERATED CHECK VALVE
MPN: R2254
The marine autopilot pilot operated check valve is a line mounted valve that is used to lock steering cylinders. The G1/4 valve can also be used when a helm pump is without check valves or to prevent the autopilot pump back driving the helm wheel.
login to saveProduct Description
Description
This G1/4 (BSPP) in-line check valve is designed to close the ‘C’ ports until a pilot pressure is applied to the ’P’ ports in order to move the check valve piston and so open the port. The body is made from anodized aluminium for protection against the harsh marine environment whilst the internal components are made from hardened and toughened steel for extended life.
Application
Designed to be used to positively lock steering cylinders or to prevent the back drive of the helm steering wheel by the autopilot pump should the helm pump not have check valves.
It is designed for use with both balanced and unbalanced cylinders. Where an unbalanced cylinder is used the additional ‘R’ port is connected to the helm pump reservoir bottom port.
Features
Positive locking of the cylinder.
Hardened check piston.
Toughened check seats.
High grade chromium balls.
Suitable for balanced and unbalanced cylinders.
Mounting holes.
Port identification.
Anodised aluminium
