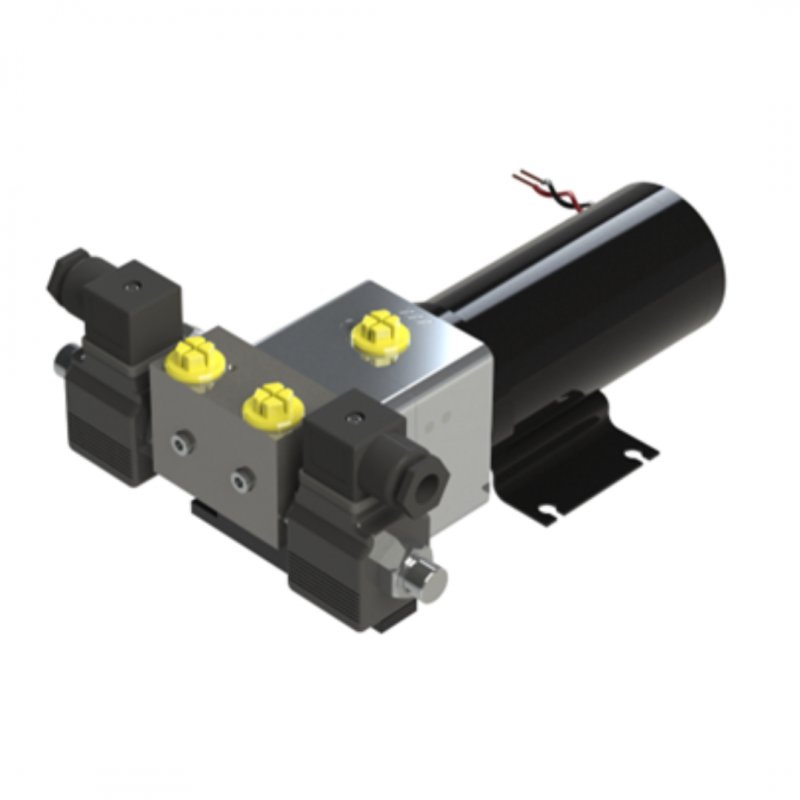

Hy-Pro Drive PC+ CONSTANT RUNNING PUMP
MPN: PC+
The Hy-ProDrive constant running pumps are designed to operate a boats steering mechanism, as part of a marine autopilot system. Typically used in commercial applications. The PC+10 and PC+15 have been introduced to the constant running pump portfolio, offering flow rates of 1.0L/min and 1.5L/min. These smaller pumps are ideally suited for smaller catamaran vessels within the fishing industry, with steering cylinder capacities of 150cc to 400cc.
login to saveProduct Description
Description
The "PC+" constant running type gear pumps are driven by 12V/24V DC permanent magnet motors. Flow reversal is achieved by switching a double acting solenoid valve.
Incorporated in the design are pilot operated check valves that prevent the pump being back driven by the manual steering system.
Other features include compatibility with balanced or unbalanced cylinders and they can also be used with pressurised reservoir systems (max 3.5 bar)
An adjustable relief valve is fitted as standard.
Maximum flow output at no load is indicated on the rating plate. Check the voltage shown is correct for the output of your autopilot.
Application
A compact constant running hydraulic pump, for use with and autopilot pilot system, to steer smaller commercial craft
Typically used on catamaran fishing and work boats, with inboard or outboard engines.
Features
1.0 or 1.5 L/min nominal flow
12V/24V DC 100W constant running motor
Solenoid directional control valve
Zero leakage check valves
Integral relief valve
IP67 rating (IP65 solenoid connectors)
Suitable for cylinders 150cc to 400cc
Manufactured in the UK
Technical data
Weight: 5 kg
Finish: Motor - black enamel
Pump: Clear anodised
Solenoid manifold: Black paint to HTS1006
Ports: G1/4 (BSPP) BS2779'73
Motor: 12V DC or 24V DC 100W
Solenoids: 12V DC or 24V DC 24W
Nominal Pump output:
PC+10 1.0 L/min
PC+15 1.5 L/min
Relief Valve Set 55 Bar
IP Rating: Pump & Coils: IP67
Connectors: IP65
EMC Protection BS EN 60945:2002 (DC)
Ignition Protection: BS EN ISO 8846:2017
Location: Under deck, dry compartment only
Orientation: Horizontal or Vertical motor up
Rotation Red lead to positive
Hoses Suitable for working pressure 70 bar.
Minimum burst pressure 100 bar.
Fluid ISO VG10 to VG40 Hydraulic mineral fluid meeting ISO 6743-4 HV
The following commercial fluids are suitable.
Fuchs Renolin B15 HV1
Seastar HA5430
