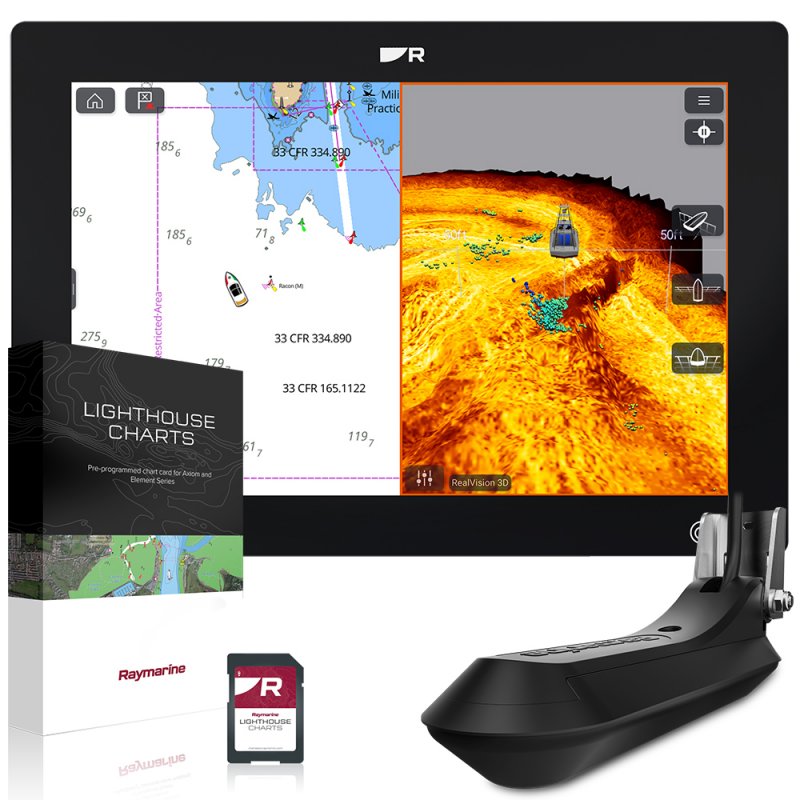

Raymarine Axiom 2 RV Chartplotter with RealVision 3D & RV-100 transducer & Western Europe Chart

Product Description

Optimize your performance under sail with Axiom 2's suite of powerful sailing features including polar profiles, dynamic laylines, race timers and tactical sailing displays.

Specifications

Dimensions (Trunnion mounted)

• Axiom 2 7" Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in)
• Axiom 2 9" Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in)
• Axiom 2 12" Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in)

Dimensions (Surface/Flush mounted)

• Axiom 2 7" Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in)
• Axiom 2  9" Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in)
• Axiom 2 12" Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in)

Connections

• Accessory connection: USB Micro B
• Ethernet connection: RayNet (10 / 100 / 1000 Mbit/sec Ethernet)
• External storage: MicroSDXC card slot x 1
• NMEA 2000 connection: DeviceNet (male connector built into power cable)
• Wireless connections: Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
• Internal storage: 64 GB
• Transducer connection: 25 pin RealVision type connector.  Requires the A80490 adaptor cable for CPT-S style transducers

Environmental

• Operating temperature: -25°C to +55°C (-13°F to 131°F)
• Storage temperature: -30°C to +70°C (-22°F to 158°F)
• Relative humidity: Up to 93% @ 40°C (104°F)
• Waterproof rating: IPx6, IPx7

Power

• Power consumption
  • Axiom+ 7: 9.84 W
  • Axiom+ 9: 11.98 W
  • Axiom+ 12: 18.96 W
• Operating voltage range: 8 V dc to 16 V dc
• Fuse rating: 7 A
• Nominal supply voltage: 12 V dc
• LEN (NMEA 2000 Load Equivalency Number): 1

Display

• Resolution
  • Axiom 2 7: WSVGA 1024 x 600
  • Axiom 2 9: Widescreen HD 1280 x 720
  • Axiom 2 12: WXGA 1280 x 800
• Display Brightness
  • Axiom 2 7: 1800 nits / 1800 cd/m2
  • Axiom 2 9: 1500 nits / 1500 cd/m2
  • Axiom 2 12: 1800 nits / 1800 cd/m2
• Protective coating: HydroToughTM Oleophobic
• LCD Type: IPS (In-Plane Switching)

GPS

• Position Accuracy: Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
• Geodetic Datum: WGS-84 (alternatives can be selected on the MFD)
• Satellite Differential Type (SBAS): WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
• Channels: Track up to 28 satellites simultaneously
• Antenna: Internal - Ceramic chip mounted near top of unit
• GNSS compatibility: GPS, GLONASS, Beidou
• Almanac Update: Automatic
• Refresh rate: 10 Hz (10 times per second)
• Time to first fix from cold start: < 2 minutes

Sonar (RV Models)

• CHIRP Sonar Channels
  • RealVision 3D: (70 W / 350 kHz )
  • SideVision: (70 W / 350 kHz )
  • DownVision: (35 W / 350 kHz )
  • CHIRP High: (100 W / 200 kHz )
• Conventional Sonar Channels: 50/200 kHz (600 W)  Note: A 600 Watt conventional sonar transducer and adapter cable is required

Chartplotter

• Waypoints:  Up to 10,000 waypoints can be stored in up to 200 waypoint groups
• Routes: Up to 250 routes can be stored, each route can contain up to 500 waypoints. The route capacity limit is subject to your chartplotter’s 10,000 waypoint limit (for example, 20 routes can be stored each containing 500 waypoints).
• Automatic Route Planning: Yes with Navionics charts or via the Orca mobile app
• Tracks: Up to 15 tracks can be stored, each track can contain up to 10,000 track points.

Compatible Charts

• Raymarine LightHouseCharts
• Navionics+ & Platinum +
• C-MAP 4D
• Imray Digital Charts
• S-63 encrypted charts

In The Box

• Axiom 2 RV MFD (supplied with Trunnion adaptor fitted)
• Trunnion bracket
• Trunnion knobs x 2
• Suncover
• Panel mount gasket for surface/flush mounting
• M5x58 Threaded studs x 4
• M5 Thumb nuts x 4
• Documentation pack
• Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
