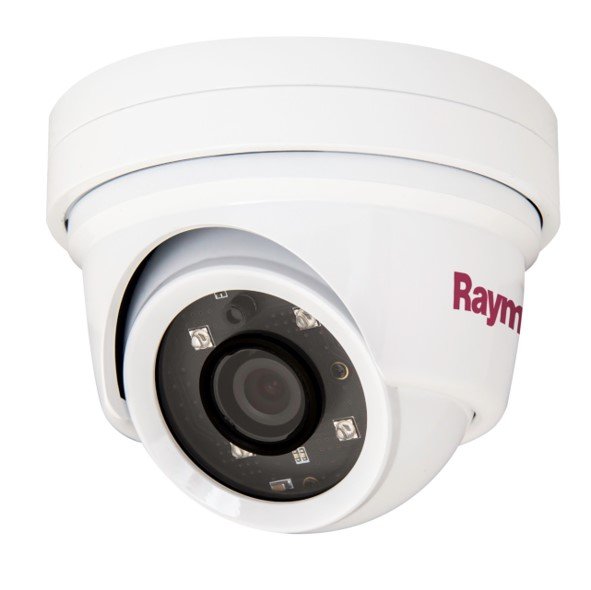

Raymarine CAM220 Eyeball CCTV Day and Night Video Camera (IP Connected)

Product Description

SIMPLIFIED INSTALLATION

The unobtrusive eyeball camera design and mounting frame allow for simple installation.

• Plug and play integration with Raymarine Axiom chartplotter displays
• Power over Ethernet (PoE) or direct 12v DC power supply
• Simple mechanical frame allows the camera to be locked, rock steady, into position
• High bright IR LEDs provide near infrared camera viewing in total darkness

Raymarine video cameras transform Axiom chartplotters into a powerful video observation systems. Connect multiple cameras to your Raymarine Axiom network and keep an eye on all the action. Switch from camera-to-camera with simple touchscreen controls. Axiom chartplotters support video viewing, recording, playback, and snapshot.

PHYSICAL Dimensions

Base diameter: 99.2 mm (3.9 in)

Overall height: 80.7 mm (3.2 in)

Weight

Boxed: 0.65 kg (1.4 lbs)

Unboxed: 0.55 kg (1.2 lbs)

POWERNominal supply voltage

12 V dc

Operating voltage range

10.8 V to 13.2 V dc

Power consumption

5.4 W Maximum (IR LEDs On)

Current

1.5 A

Power over Ethernet

PoE Class 2 (6.49 W Max) device (802.3af)

CAMERASensor / DSP

2.0 Megapixel 1/2.8” Sony CMOS image sensor (Exmor)

Scanning system

Progressive scan

Day / Night

True Day / Night with ICR filter changer

Total pixels

1952(H) x 1116(V) 2.18 Megapixel

Effect pixels

1944(H) x 1104(V) 2.14 Megapixel

Minimum illumination

0 Lux (IR LEDs On)

I2 Distance

20 m (65.6 ft.) (4 LEDs)

Lens

3.6 mm Megapixel board lens

Field of View

Horizontal = 51.0 deg +/- 3 deg Vertical = 93.0 deg +/- 3 deg
