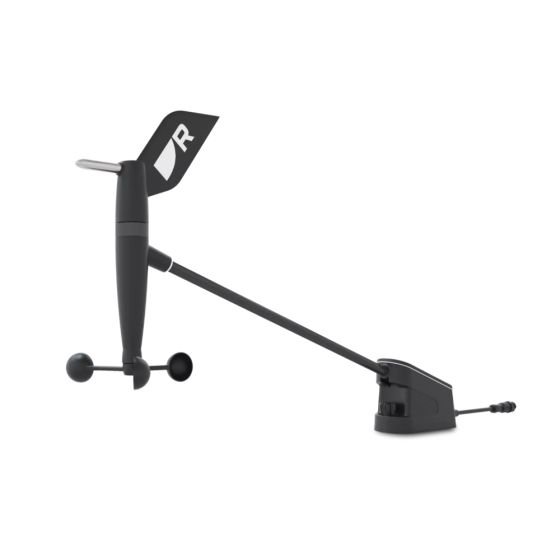

Raymarine RSW Wired Smart Wind Transducer with 30m Cable

Product Description

• Raymarine Smart Wind Transducer

  The Raymarine RSW wind transducer is a professional-level wind sensor designed for leisure sailors. The RSW transducer is engineered for simplicity and accuracy using an integrated 3D motion sensor and Raymarine Smart Wind™ technology to give every skipper a new level of sailing intelligence.

  Precision, Engineered Design

  The newly designed RSW wind sensor is a self-calibrating sensor that delivers ultra-precise wind speed and direction measurements. Sailors can take advantage of high accuracy, true wind, speed, and polar calculations to make more intelligent race and performance sailing decisions when it matters most.

  Extensively tested, tuned and balanced in the wind tunnel - the Raymarine Smart Wind redefines the meaning of sailing intelligence.

  Raymarine Smart Wind™ Features

  Increased Accuracy

  Experience expert-level accuracy without expensive black box processors or cumbersome calibration tables. Smart Wind technology also compatible with rotating masts.

  Self Calibrating

  Integrated 3D motion sensor (AHRS technology) accounts for vessel pitch and roll, automatically delivering improved true wind accuracy.

  Sail Like a Pro

  Smart Wind technology compensates for the effects of airflow and upwash against the sails, delivering stable and trusted true wind direction. The sensor also intelligently compensates for mast twist and bend.

  Install & Go

  Raymarine Smart Wind technology delivers expert level accuracy without the need for additional, expensive processors or extensive calibration and set-up.

  Finely Tuned

  Through rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the mast head is accurate and consistent.

  Sail Smarter

  Trusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.

  Raymarine Smart Wind™ Specifications

• Length
  • Wind transducer (including cable): 657.762 mm (25.90 in)
  • Wind transducer (excluding cable): 540.712 mm (21.29 in)
  • Wired gateway: 155.61 mm (6.13 in)
• Width
  • Wind transducer: 46.96 mm (1.85 in)
  • Wired gateway: 47.38 mm (1.88 in)
• Height
  • Wind transducer: 305.86 mm (12.04 in)
  • Wired gateway: 30.61 mm (1.21 in)
• Nominal supply voltage: 12 V dc (via SeaTalk NG)
• Operating voltage range: 9 V to 16 V dc
• Power Consumption: < 100 mW
• Fuse rating: Ensure that the SeaTalk NG backbone is protected by a 5 A fuse
• NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating: 1
• Operating temperature range: -25°C to +55°C (-13°F to +131°F)
• Waterproof rating - Wind transducer: IPx6/IPx7 - Wired gateway: IPx3
• Max Wind Speed: 115 mph (185 kph)

1. In the Box

2. No.10 x 3/4" self tapping screws x 4 (for mounting the wind transducer)
3. No.7 x 3/4" self tapping screws x 2 (for mounting the gateway)
4. 40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable)
5. Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface)
6. Mast cable, 30 m (98.43 ft) reel
7. Documentation
8. Wind transducer
9. Smart wind wired gateway
10. SeaTalk NG to DeviceNet adaptor cable, 120 mm (4.72 in)
