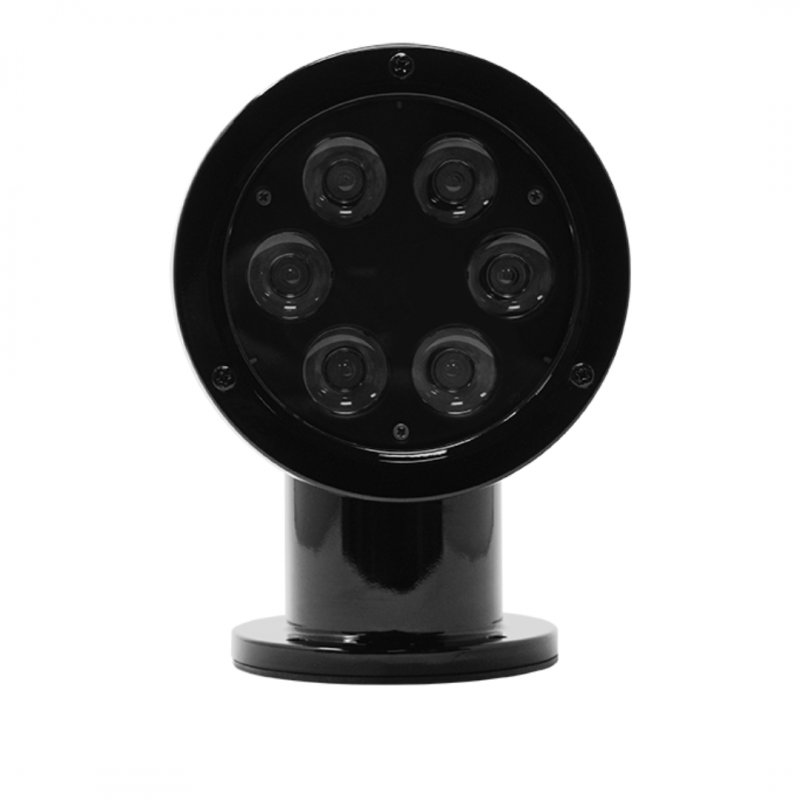

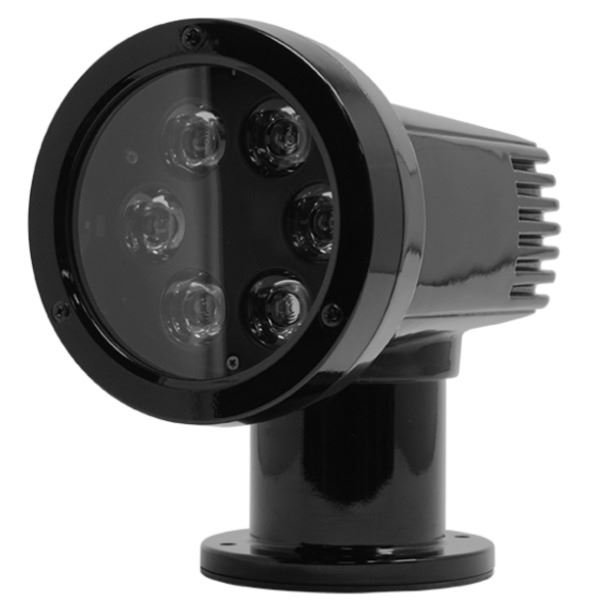

ACR RCL-50 LED Searchlight Black (12v to 24v)

Product Description

The RCL-50 LED’s traditionally sleek design makes it an attractive and cost-effective choice for sport yachts, yachts, sport fishers, workboats, and light commercial vessels. With more efficient LEDs, the RCL-50 LED has reduced power consumption demand by up to 50% on 12V vessels.

The RCL-50 LED continues to utilize the same rugged design as the original RCL-50D and includes an efficient 6 LED array that produces over 100,000 candelas of light. Built for small to medium boats the aluminum housing and with sealed glass lens protecting for years of trouble-free operation.  Other features include a wired remote control that allows users 360 degrees of continuous rotations at fast or slow speeds without the hassle of a hard stop.  With a 10-degree beam angle, the light also provides elevation angles at 20 degrees up and down to making lighting draw bridges, buoys, and docks a breeze.

The aluminum case is coated with a UV stabilizer to survive years in the harsh marine environment.  The searchlight’s mechanisms are fully enclosed with protecting the precise beam pitch control and RCL-50 LED bulbs are designed to work over 40,000 operating hours.  Featuring Exclusive XRCiZ™, a pre-programmed system to independently rotate every 30 days from activation to protect from corrosion and all electrical contacts functional.  The RCL-50 LED is weather-resistant and operates with 12 or 24 DC power.

Main Features of the New RCL-50 LED:

•     Ultra-bright, 6 LED array generates over 100,000 peak candela
•     Efficient, long-life LED’s – 40,000 operating hours
•     Reduced power consumption demand by up to 50% on 12V vessels
•     The controller has state-of-the-art electronics to protect the light from most power surges
•     Internal elevation mechanism for precise pitch control of beam; protects elevation mechanism from weather
•     Rugged triple-primed and sealed, marine-grade aluminum housing (Available in White or Black)
•     Includes fingertip remote control Point Pad; up to three remote Point Pad units may be installed on system; surface/flush mount options included
•     Exclusive XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
•     Includes wiring harness of 15 feet (4.57 m)
•     Two-speed motor

Product Number      1961 (Black)Size     8.4 x 6 x 8”(21.3 x 15.2 x 20 cm)Weight      7.72 lbs (3.5 kg)Material      Die-cast aluminum (518)Color      BlackOperation      Remote-controlled Point Pad™Beam Spread      10°Elevation Angle      20° up, 20° downRotation      360° continuousRotation Speed      31° per second @ 12VElevation Speed      10° per second @ 12VLamp      High-intensity LED lampFootprint Diameter      4.75” (120.7 mm)Limited Warranty      1 YearCarton Dimensions      12.5 x 8 x 11.5 (32 x 20 x 29 cm)Carton Weight      10.32 lbs (4.68 kg)Additional Point Pad Kit      URP-102 Point Pad Kit for the secondary station, includes 2-way splitter, 4-ea F-connectors, 15’ coaxial (P/N 9282.3)
