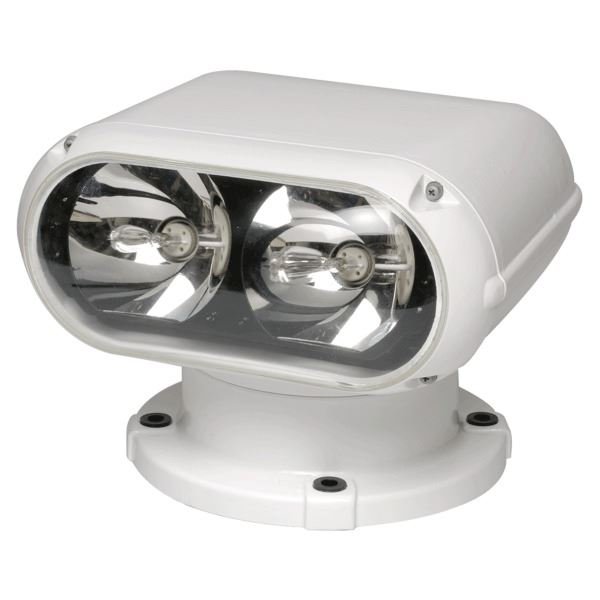

ACR Searchlight RCL300A - 1933

Product Description

It’s gasketed and finished to stand up to the marine environment, and all functions can be operated using the supplied Point Pad™ and Master Controller (up to three remote controllers may be installed).

•     Internal elevation mechanism provides pitch control of spotlight beam; protects elevation mechanism from weather
•     Includes fingertip remote control Point Pad™; up to three remote Point Pad™ units may be installed on system; surface/flush mount options included
•     Rugged triple-primed and sealed, marine grade aluminum housing
•     XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
•     Salt water-resistant construction with nylon and phenolic washers, aluminized stainless steel screws with insulating lubricant
•     Wiring harness included
•     * Twin 35W, Metal Halide HID lamps provide over 500k CD each and 1 million effective CD when combined.

ACR Product Number      1933Size      12 x 13 x 9.3” (31 x 33 x 23.5 cm)Weight      36 lbs (16.39 kg)Material      Marine grade cast aluminum, tempered glassColor     WhiteOperation      Remote controlled Point Pad™Beam Angle      6° vertical, 6° horizontalElevation Angle 15° up, 30° downRotation      360° continuousRotation Speed      Fast 30° per second, Slow 10° per secondElevation Speed     3° per secondLamp      Twin 35W metal halide lamps 1,000 hours operating lifeInput Voltage      12V-24VDCAmp Draw Start up - 25A @12V, Running - 8A @ 12VCarton Dimensions      20.5” x 14.25” x 19.25”Carton Weight 40 lbsFootprint Diameter (without pedestal)      9” (23cm)
