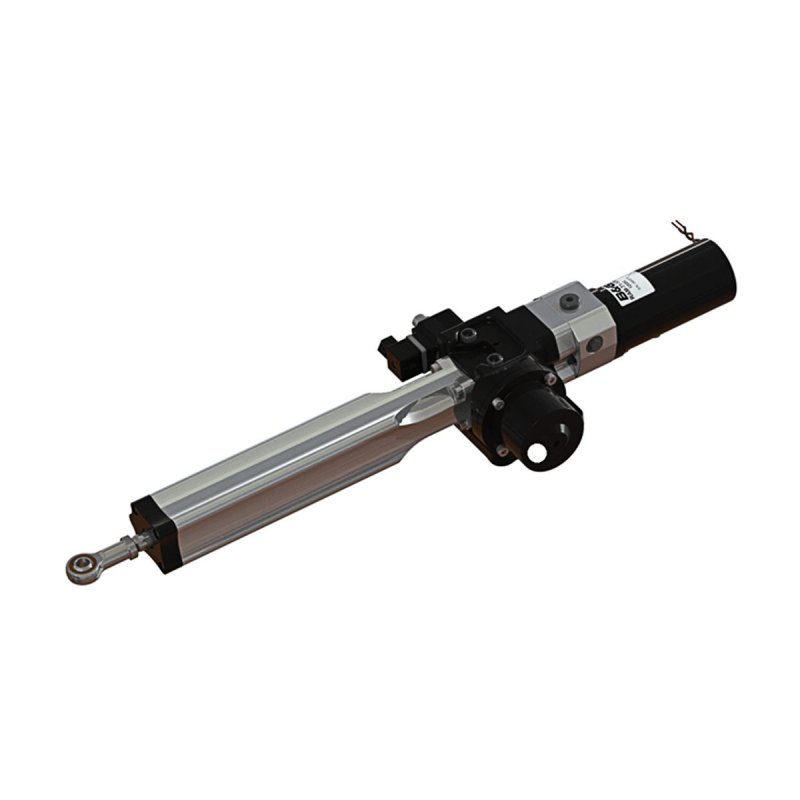

B&G Hydraulic Ram T0 12V

Product Description

A high power, efficient 12V hydraulic autopilot drive unit that enables the Power Steer Mode on a Pilot to be used in case of manual steering failure.

- Model: T0 12V

- Max boat size: 9000kg

- Stroke: 200mm

- Hard over time: 12 seconds (Nominal)

- Tiller arm: 175mm

- Thrust: 350 kg/f

- Rudder torque: 62 kg/m

- Computer: NAC-2

- Volume (average): 234cc

- Ingress protection: IP67

- EMC protection: BS EN 60945:2002 (DC)

- Ignition protection: BS EN 28846:1993

- Declaration of Conformity: EMC Directive 2014/30/EU

- Ambient operating temperature: -15 to + 55 deg C

- Max operating thrust: 350kg (Intermittent)

- Orientation - Red lead to positive - Extends

- Orientation - Black lead to positive - Retracts

- Clutch coil: 12 watt

- Clutch connection: DIN 43650 (6-8mm cable)

- Fluid: ISO VG10 to VG40 hydraulic mineral fluid to ISO 6743-4 HV

The following commercial fluids are suitable: Fuchs Renolin B 15 HV1, Seastar HA5430
