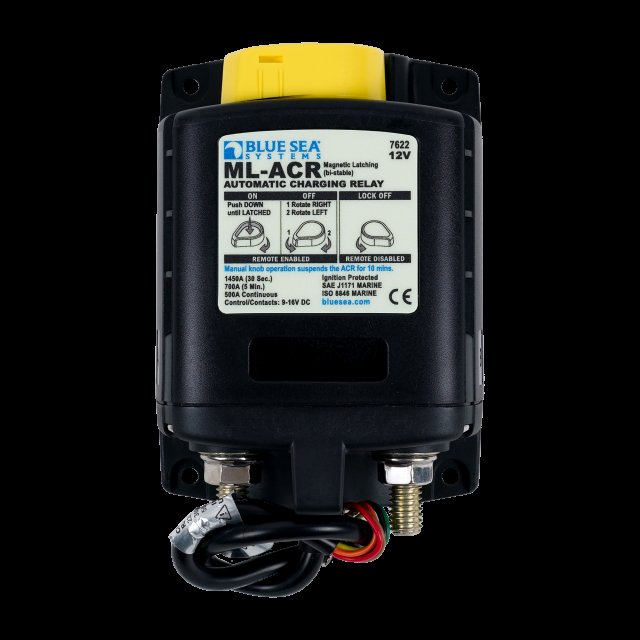

Blue Sea Systems Solenoid ML 500A 12V ACR w/manCtrl

Item: MER-10-7622

MPN: MER-10-7622

The Solenoid ML 500A 12V ACR w/manCtrl 500 Amp magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine. It also includes: - Manual control switch provides an added level of safety allowing control with or without power, and offering LOCK OFF capability for servicing - Includes ML-Series Remote Control Contura Switch PN 2146 - Automatically manages the charging of two large battery banks - Allows paralleling of battery banks for emergency starting - 500 Ampere continuous rating to support high-output alternators - Magnetic Latch (ML) - ACR draws very low current (<40mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state - Dual sensing - senses charge on both battery banks - Start Isolation (SI) - can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics - Engine Isolation (EI) - can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output - Senses charging on two battery banks - LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, or in Start or Engine isolation - 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance - 7/8" (22mm) stud length accepts multiple cable terminals - Silver alloy contacts provide high reliability for switching live loads - Label recesses for circuit identification
