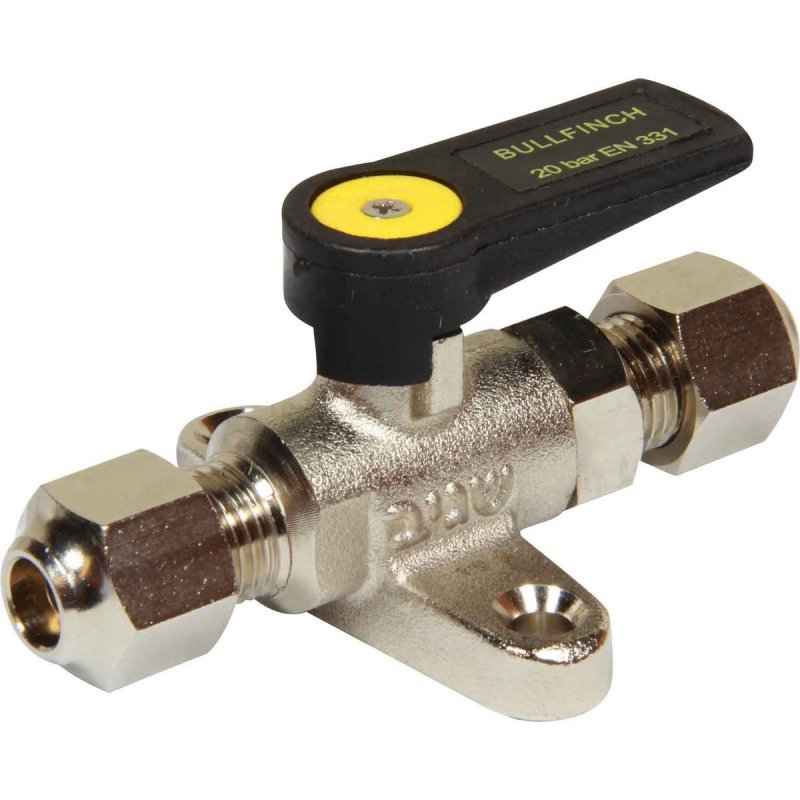

Compression Ball Valve Foot Mount 5/16" x 5/16"

Product Description

A range of mini gas ball valves with integral foot mount. These valves are designed for pipe to pipe applications or hose to copper pipe with an integral foot mount for a secure hold without additional pipe supports. All come complete with nuts and brass olives.

• For use with propane, butane, natural gas and diesel oil.

Technical Specifications

• Body material: forged brass nickel plated

• Ball material: brass nickel/chrome plated

• Body seal: Teflon PTFE

• Shaft seal: nitrile 2 x NBR (max. temp + 90ºC)

• Operating temperature: -20ºC to +60ºC

• Max. operating pressure: 20 bar

• Anti-blow out stem with 1/4 turn positive shut-off

• Full bore operation - minimum pressure drop

• 100% factory tested

• Conforms to European Standard for Gas Valves - EN 331:1995

• Also suitable for diesel
