Garmin GT8HW-IH High Wide CHIRP In Hull Transducer

Garmin Garmin GT8HW-IH High Wide CHIRP In Hull Transducer

Item: 010-12401-10

MPN: 010-12401-10

Write the first review



Product Description

GT8HW-IH transducer is ideal for boats that want to install the transducer inside a fiberglass hull and not on the transom where cavitation could cause issues. It requires a flat section in the hull to be mounted and is excellent for boats traveling at high speeds that want to maintain accurate depth readings.

The 8-pin transducer features high-wide CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W.


  • Cable length: 20 ft
  • Number of pins on connector: 8
  • Frequency: Traditional: CHIRP 145-240 kHz
  • Transmit power: Traditional: 250 W
  • Max Depth: Traditional: 800 ft
  • Beam Width (°) LF/HF (-3dB): Traditional: 24/16

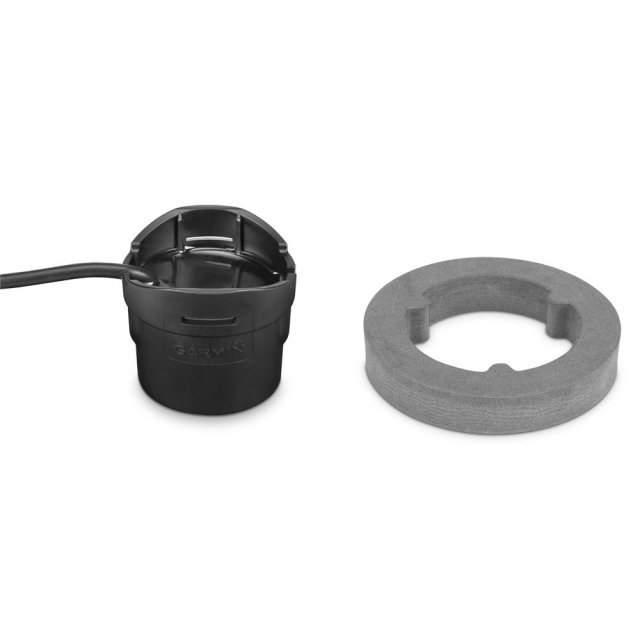

In the Box
• GT8HW-IH transducer
• Foam mounting ring
