Hy-Pro Drive HS+50 ELECTRO-HYDRAULIC SECONDARY STEERING SYSTEM
MPN: HS+50F
The HS+ hydraulic steering systems are designed specifically for marine secondary steering applications. They are available with either a 2.5 lpm reversing pump or a number of sizes of PC pump. The systems are protected from rudder strikes by integral relief valves. A solenoid clutch is also fitted so that manual mechanical steering can be used.
login to saveProduct Description
Description

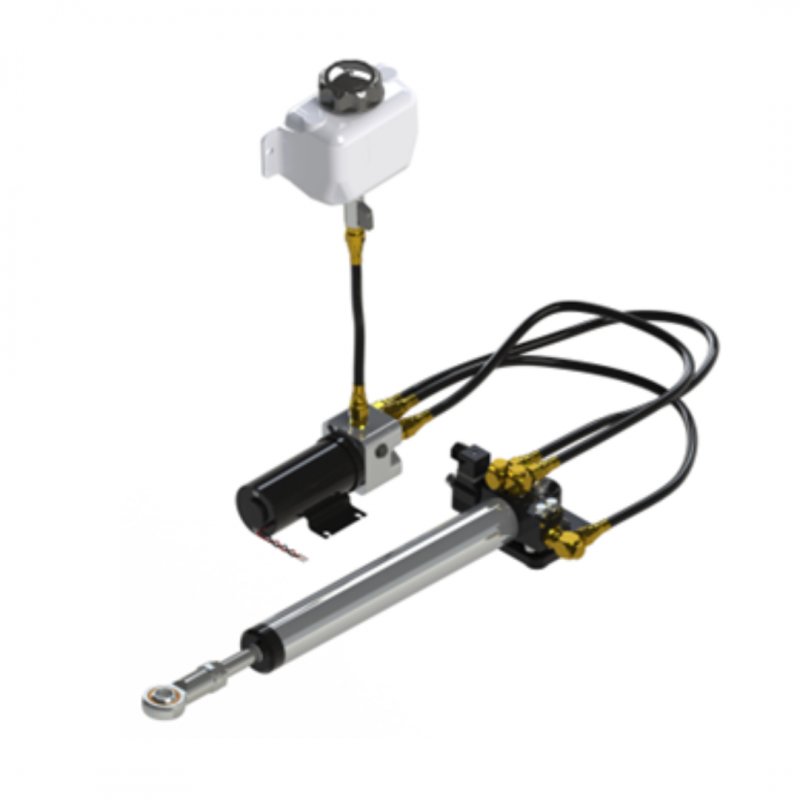

The hydraulic steering systems comprise of a compact cylinder which includes the relief valves and solenoid clutch, a reversing or constant running pump, marine hoses, fittings and a reservoir. The system comes filled ready for installation. A choice of pump sizes can be selected with single or twin cylinders to give a range of hard-over times and thrusts.
Application
Designed specifically for the marine autopilot market, they can be used on sailboats and power-craft with displacement and fast planing hulls. The pumps and cylinders can be matched to give the hard-over times and thrusts to suit the application.
Features
Pre-filled ready to fit.
Installation kit included.
Shorter than conventional cylinders.
Quiet operation.
Low maintenance.
Low power consumption.
Integral solenoid bypass valve.
Integral relief valves.
Marine environment protected (under deck)
Fully serviceable.
12V/24V DC options.
Reversing or Constant Running pump options.
Adjustable or non adjustable rod-ends
Twin opposed cylinder option.
Technical data
Voltage 12V/24V DC
Current Typical Amp-hour Typical current
92kg at 25% duty intermittent 1016kg
12V 24V 12V 24V
HS+50 2.7A 1.4A 34.0A 15.5A
HS+50S 2.7A 1.4A 34.0A 15.5A
Full stroke time 12V/24V DC (No load)
HS+50 25 13 seconds
Ingress protection IP67
EMC protection BS EN 60945:2002 (DC)
Ignition protection BS EN ISO 8846:2017
Ambient operating
Temperature -15 to + 55 deg C
Max operating
thrust 1080kg (Intermittent)
Relief valve setting 62 bar (1080kg)
Orientation Red lead to positive - Extends
Black lead to positive - Retracts
Clutch coil 12W
Clutch connection DIN 43650 (4-9 mm cable) IP67
Fluid ISO VG10 to VG40 hydraulic
mineral fluid to ISO 6743-4 HV
Weight 14 kg
Feedback Transducer
Ingress Protection IP66
Lead 1.0m
Resistance 13.0kΩ
