Hy-Pro Drive RUDDER POSITION SENSOR
MPN: R4660-a
The Hy-ProDrive integrated position sensor, designed and manufactured in house is compatible with our latest version of our ML+40 and HS+40 marine linear actuators.
login to saveProduct Description
Description
Non-contact absolute position sensor.
The unit monitors the movement of the hydraulic piston, inside the steering cylinder.
Application
Mounted on an ML+40 or HS+40 marine autopilot drive, to provide rudder position data to the course computer.
Features
No moving parts or linkages for robustness and longevity.

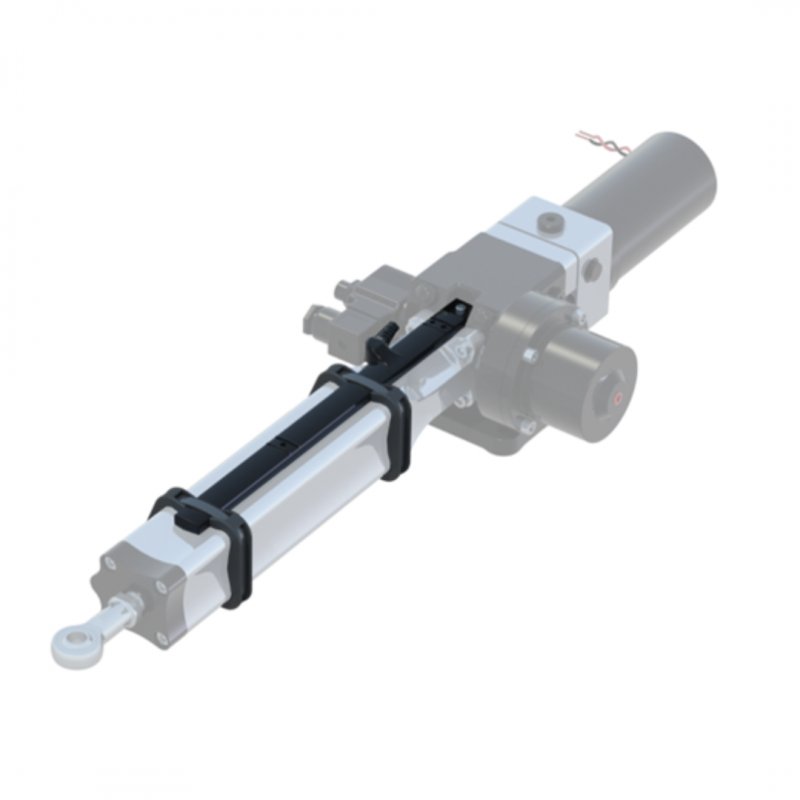

Attaches directly to the cylinder with dedicated clips.
Can be fitted in the factory or retrofitted by the installer.
IP67 ingress protection
3 core cable length 1m.
Technical data
Technical Data
Supply voltage 3-15V DC
Typical 5V DC
Supply current 20ma
Output resistance 1.2 K?
Power up time 300 ms
RMS deviation from linear 0.3mm
Compass safe distance BS EN 60945:2002 11.2
Steering Compass 1.0m
Standard Compass 1.5m
Mass 80g
Ingress protection IP67
EMC protection BS EN 60945:2002 (DC)
Ignition protection: BS EN ISO 8846:2017
Wiring colours
Gnd. Black
V supply Red
Output Yellow
Full data sheet available on request
