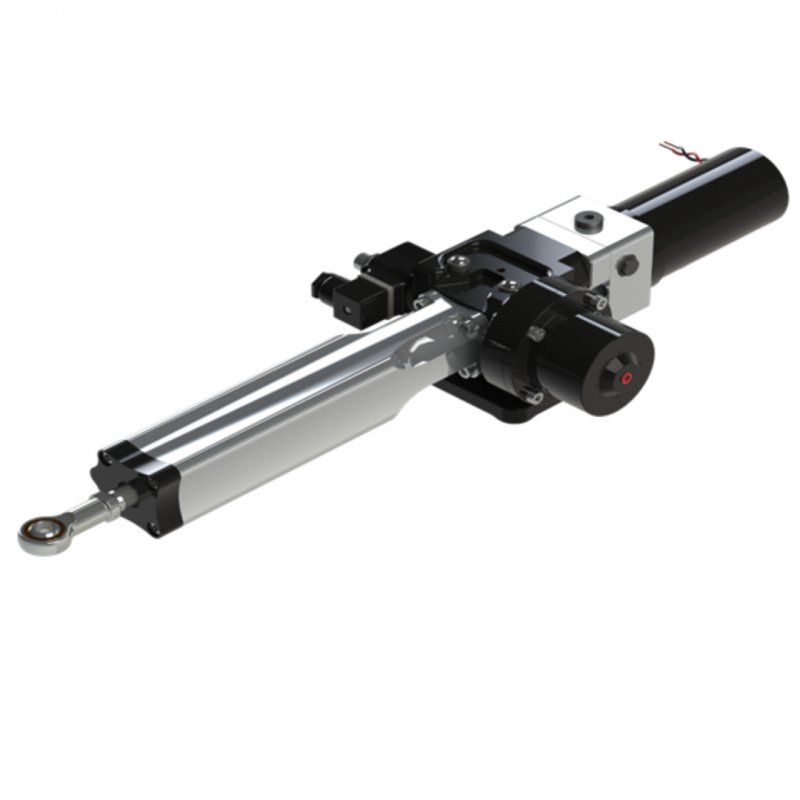

Hy-Pro Drive ML+40 ELECTRO-HYDRAULIC SECONDARY STEERING LINEAR ACTUATOR
The ML+40 Electro Hydraulic Linear Actuator combines all the elements of a hydraulic circuit in one compact unit. Designed for ease of installation, the unit is supplied with a quick release mounting, tiller bolt and fitting kit. An optional rudder reference/feedback unit can be mounted directly onto the actuator. Integral relief valves protect the unit and its mountings from being overloaded. Available in 3 stroke lengths 200mm, 250mm & 300mm
login to saveProduct Description
Description
The ML+40 combines a hydraulic cylinder, pump, IP67 motor, clutch and reservoir in one powerful and compact unit. To operate the clutch is engaged and the cylinder extends and retracts by means of reversing the motor polarity. Integral relief valves protect the unit and its mounting from rudder strikes etc. and anti-cavitation valves are also incorporated to allow full stroke speeds of up to 2 seconds when back-driven by the helm.
Designed for ease of servicing the motor can be removed from the unit without affecting the hydraulic circuit.
A full range of spares, seal kits and servicing tools are available.
The ML+40 is supplied pre-filled and ready to install.
Application
Ruggedly designed specifically for the marine auto-pilot market, they are widely used on sailboats and power craft with displacement or fast planing hulls. They are ideal where space is limited as there is no separate pipe-work or reservoirs to fit.
The unit can be mounted in any attitude.
Features
3 Stroke lengths 200mm, 250mm & 300mm
Ease of installation
Low profile
Low power consumption.
IP67 motors
EMC protection BS EN 60945:2002 (DC)
Ignition protection BS EN ISO 8846:2017
2 speed options
Integral relief valves
Low maintenance
Quick release mounting
12V/24V DC option
Service kits available
Low back-drive
Marine environment protective finish
User serviceable
Spares kits available
Optional remote reservoir
