Raymarine Type 2 12 Volt Hydraulic Linear Drive, Up to 22,000kg Displacement
login to saveProduct Description

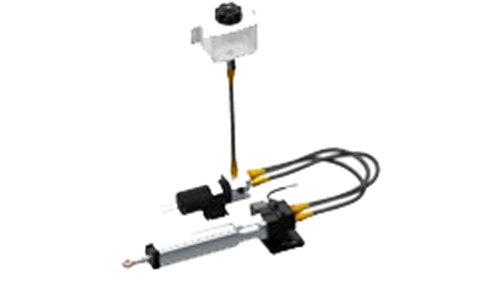

The Type 2 12 volt hydraulic linear drive is a self-contained hydraulic steering systems consisting of a reversing pump, reservoir and hydraulic ram.
Mounted below decks, the hydraulic linear drive moves the rudder directly by pushing the tiller arm or a rudder quadrant.
Suitable for wheel steered boats up to 22,000 kg displacement. Works with ACU-400 and SPX 30.
- Maximum boat displacement: 22,000 kg.
- Peak thrust: 585 kg.
- Maximum stroke: 254 mm.
- Hard-over to hard-over times: 10 seconds.
- Maximum rudder torque: 1,270 Nm.
- Corepack used: ACU-400
In the Box
In the Box
1. Hydraulic Linear Drive components, consisting of:
• Hydraulic fluid reservoir.
• Pump.
• Hydraulic ram.
2. Tiller pin assembly, consisting of:
• Tiller pin.
• R-clip.
• Lock nut.
• Washer (quantity: 2).
3. Hydraulic ram mounting screw pack, consisting of:
• Bolts (quantity: 4)
• Washers (quantity: 4).
• Lock nuts (quantity: 4).
4. Pump mounting screw pack, consisting of:
• Bolts (quantity: 2)
• Washers (quantity: 2).
• Lock nuts (quantity: 2).
5. Installation instructions.
6. Hydraulic fluid transit container.
