Hy-Pro Drive HS+40 ELECTRO-HYDRAULIC SECONDARY STEERING SYSTEM
MPN: HS+4010
The HS+40 hydraulic steering systems are designed specifically for marine secondary steering applications. They combine a hydraulic cylinder with clutch, reversing pump and reservoir in a compact installation. The solenoid clutch disengages the hydraulic circuit allowing manual mechanical steering to be used in conjunction with the hydraulic system.
login to saveProduct Description
Description

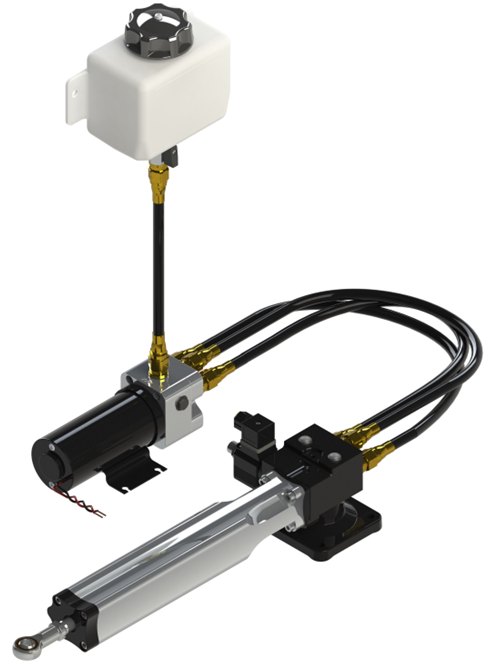

A pre-filled hydraulic system comprising a cylinder with clutch, pump and reservoir.
The cylinder is free to float until the solenoid clutch is engaged, the reversing pump is then used to extend and retract it. Integral relief valves protect the installation from damage.
Application
Designed specifically for the marine autopilot market where they can be used on sailboats and power-craft with displacement and fast planing hulls. The pumps and cylinders can be matched to give the hard-over times and thrusts to suit the application.
Further combinations using our 5 reversing pump sizes are also possible. Please refer to our data sheet PR-d for details of the reversing pump range.
Features
Shorter than conventional cylinders.
Integral solenoid bypass valve and relief valves.
Fully serviceable.
Quiet operation.
A number of pump sizes with 12V/24V DC options.
Marine environment protected (under-deck).
Low power consumption.
Fitting kit included.
Low back-drive.
Quick release mounting.
Low profile.
Technical data
Voltage 12V/24V DC
Current Typical Amp-hour Typical current
92kg at 25% duty intermittent 1016kg
12V 24V 12V 24V
HS+50 2.7A 1.4A 34.0A 15.5A
HS+50S 2.7A 1.4A 34.0A 15.5A
Full stroke time 12V/24V DC (No load)
HS+50 25 13 seconds
Ingress protection IP67
EMC protection BS EN 60945:2002 (DC)
Ignition protection BS EN ISO 8846:2017
Ambient operating
Temperature -15 to + 55 deg C
Max operating
thrust 1080kg (Intermittent)
Relief valve setting 62 bar (1080kg)
Orientation Red lead to positive - Extends
Black lead to positive - Retracts
Clutch coil 12W
Clutch connection DIN 43650 (4-9 mm cable) IP67
Fluid ISO VG10 to VG40 hydraulic
mineral fluid to ISO 6743-4 HV
Weight 14 kg
Feedback Transducer
Ingress Protection IP66
Lead 1.0m
Resistance 13.0kΩ
