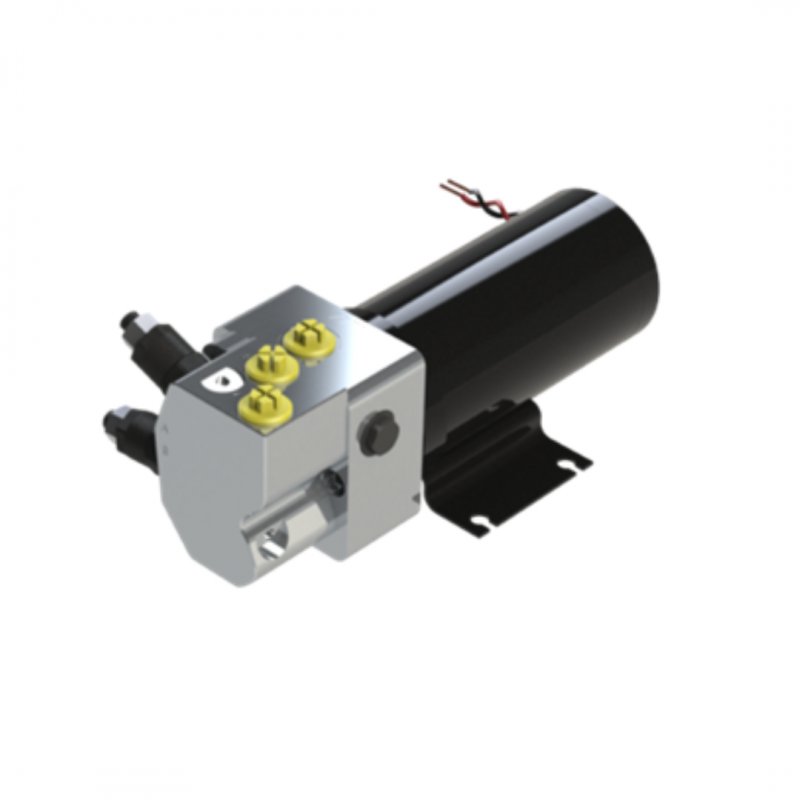

Hy-Pro Drive PR+ RX/X PUMP WITH RELIEF VALVES
Item: PR+RX/X
MPN: PR+RX/X
The PR+ range of pumps is also available with relief valves which provide independent control of the maximum pressure available at each service port. Relief valves can be fitted to either 1 or both services. They are used in many applications worldwide including sports car suspension lifters, door and hatch openers and snow blowers.
login to saveProduct Description
Description
Utilising the standard PR+ pump and motor option, we have the addition of relief valve, to add to the versatility of the reversing pump range.
Complying with the small craft directives EMC and ignition requirements, this pump will have many onboard applications, that require load holding check valves.
In addition to Autopilot steering applications, the pump can be used in circuits requiring differing pressures for lifting and lowering. Hatch lifting, bathing platforms, gang planks etc
Application
This style of pump is suited to onboard applications requiring oil flows of 0.5 l/min to 2.5 l/min and pressures up to 55 bar. These will include auto pilot steering and hatch lifting.
It can also be used in automotive applications including suspension raising and hood lifting.
Features
Independent relief valves on A & B ports
Load holding check valves
6 Pump sizes
2 Motor sizes
Adjustable relief valves
IP67 1m rated motor
Separate reservoir port
Optional service port adaptors
Optional reservoir available—Code R4306
Technical data
Voltage 12V/24V DC
Typical amp-hour Typical current
Current 5 bar at 25% duty Intermittent
55 bar max
12V 24V 12V 24V
PR+05 50W 1.5A 10.1A
PR+06 25W 0.9A - 9.0A
PR+08 50W 1.3A - 14.0A
PR+10 100W 2.2A 1.0A 19.0A 9.0A
PR+15 100W 2.4A 1.2A 24.0A 11.0A
PR+20 100W 2.5A 1.3A 25.0A 12.0A
PR+25 100W 2.7A 1.4A 34.0A 15.5A
Ingress protection IP67
EMC protection BS EN 60945:2002 (DC)
Ignition protection BS EN ISO 8846:2017
Ambient operating
temperature -15 to +55 deg C
Max pressure 55 bar (intermittent operation)
reservoir line 2 bar max
Ports G1/4 (BSPP) Parallel
A = cylinder port
B = cylinder port
R = reservoir port
Orientation Red lead to positive - pressure to A port
Black lead to positive - pressure to B port
Hoses Suitable for working pressure 55 bar.
Minimum burst pressure 100 bar.
Fluid ISO VG10 to VG40 Hydraulic mineral fluid
meeting ISO 6743-4 HV
Weight 3.0 kg
Port adaptor torque 27Nm (20 lb/ft)
