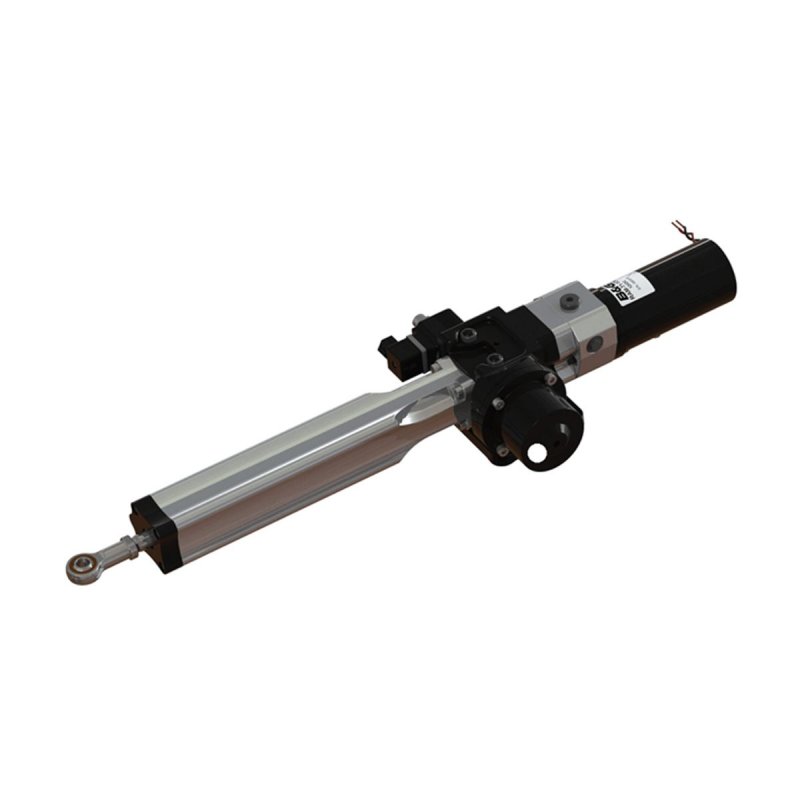

B&G Hydraulic Autopilot Ram T1 12V

Product Description

A high power, efficient 12V hydraulic autopilot drive unit that enables the Power Steer Mode on a Pilot to be used in case of manual steering failure.

- Model: T1 12V

- Max boat size: 12,000kg

- Stroke: 250mm

- Hard over time: 13 seconds

- Tiller arm: 213mm

- Thrust: 700 kg/f

- Rudder torque: 149 kg/m

- Computer: NAC-3/H5000

- Typical Amp-hour 60kg at 25% duty (12V): 2.0

- Typical current intermittent 650kg (12V): 19.0

- Ingress protection: IP67

- EMC protection: BS EN 60945:2002 (DC)

- Ignition protection: BS EN 28846:1993

- Declaration of Conformity: EMC Directive 2014/30/EU

- Ambient operating temperature: -15 to + 55 deg C

- Max operating thrust: 700kg (Intermittent)

- Relief valve setting: 62 bar (730kg)

- Orientation - Red lead to positive - Extends

- Orientation - Black lead to positive - Retracts

- Clutch coil: 12 watt

- Clutch connection: DIN 43650 (6-8mm cable)

- Fluid: ISO VG10 to VG40 hydraulic mineral fluid to ISO 6743-4 HV

The following commercial fluids are suitable: Fuchs Renolin B 15 HV1, Seastar HA5430

Key Features

• Fully integrated hydraulic system - no external hoses, reservoirs etc
• Maximum power with minimum consumption
