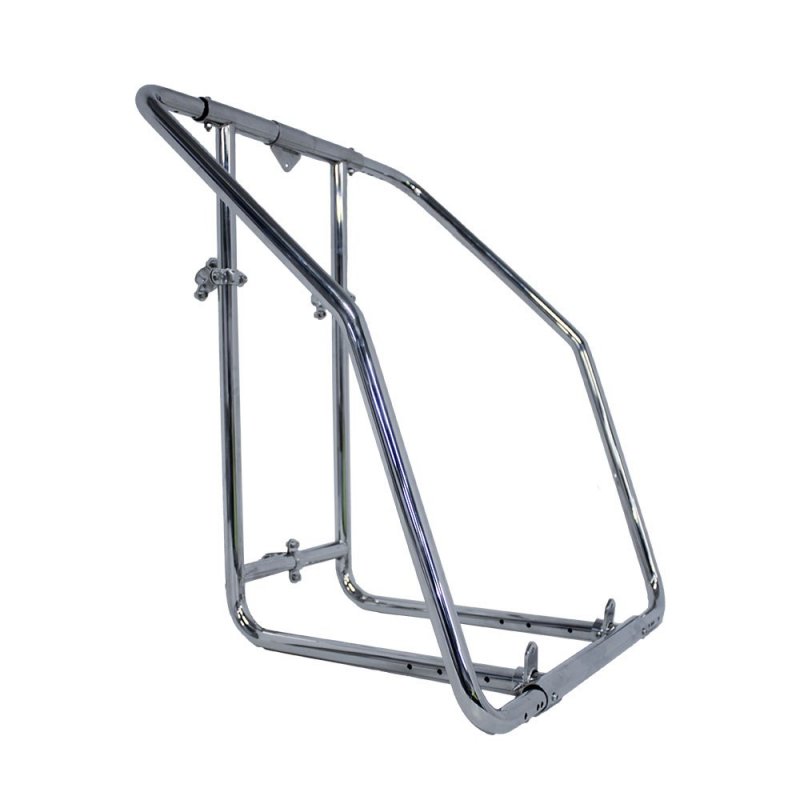

Liferaft Cradle - Premium Vertical

Product Description

Description

The new Premium Vertical Cradle is made from highly polished marine grade 316 stainless steel with high grade polyester webbing straps for securing the raft. This vertical cradle allows rafts from 4 person to 8 person capacity to be housed perfectly. The Premium Vertical Cradle will ensure any liferaft is 100% secure using pre-drilled holes for adjustment, and locking nuts and bolts to fasten the adjustable sections in place. All fittings supplied are of the highest quality precision engineering.

LRC-PREM-VS
(4-8 Person liferafts)

Frame size:
Height = 695mm
Depth = 375mm
Width = 490mm - 675mm
Tube = 30mm diameter

‍

LRC-PREM-VL
(10-16 Person liferafts)

Frame size:
Height = 695mm
Depth = 475mm
Width = 490mm - 675mm
Tube = 30mm diameter

‍

‍

The Premium Vertical Cradle allows for multiple adjustment of the depth and width to accommodate a range of liferaft models and sizes.

Securing the liferaft in place is achieved with the simple width and depth adjustments. Using the long webbing straps to adjust the tension for the final fit.

The vertical cradle can be rail mounted or deck mounted, fittings supplied.
