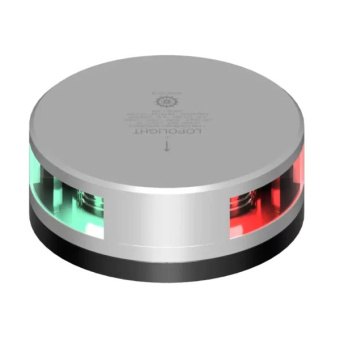

Lopolight 1nm Combined sidelight, anodized
MPN: 101-003
The Lopolight 101-003-FB is a high-quality navigation light for vessels under 12 meters, featuring red and green sidelights with a 1 nautical mile visibility range. It has a silver anodized aluminum housing, is certified by DNV and other international bodies, and operates in temperatures from -25°C to 55°C. The light is pre-wired with 2.5 meters of shielded marine-grade cable and consumes 1.4W of power.
login to saveProduct Description
The Lopolight 101-003-FB is a high-quality navigation light that provides superior visibility with a combination of red and green sidelights, designed for vessels under 12 meters in length. With a silver anodized aluminum housing and an easy-to-install mounting base, this light meets multiple international certifications for marine safety.
- Red and green LED navigation light
- Dual angle visibility: 112.5° per side
- Certified by DNV, USCG, ABS, MED, and more
- Rugged silver anodized aluminum housing
- Waterproof to IP68 rating, suitable for submersion
- Pre-wired with 2.5 meters of shielded marine-grade cable
- Operating temperature range: -25°C to 55°C
- Low power consumption (1.4W)
- Easy to install with included installation guide
Specifications
- Dimensions: Ø92.5mm x 58mm
- Imperial Dimensions: Ø3.6" x 1.4"
- Operating Voltage: 10-32VDC
- Current Consumption at 12VDC: 87mA
- Current Consumption at 24VDC: 48mA
- Visibility: 1nm
- Mounting: Horizontal
- Materials: Silver Anodized Aluminum (25µ), PMMA Lens, A4 Stainless Steel Screws, Epoxy, Polyurethane
- Vessel Size: Under 12M
- Minimum Feed Wire Gauge: 0.5mm² (AWG22)
- Certification: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, MED, DNV, LR
- EAN Code: 5704438042605
- UPC Code: 879343042738
- Packaging Unit: 1 Piece
- Supplier Article Code: 101-003-FB
- Article Number: 186603AFB
