Lopolight 2nm 2 x 112.5deg Red and Green Sidelight

Product Description

Lopolight 201-004 - Port-Starboard Combination Navigation Light 112.5° 2 NM Vertical Mounting

The Lopolight 201-004 vertical-mount port and starboard navigation light is designed for vessels up to 20 meters in length. Manufactured to the highest quality standards and individually tested in Denmark, this model ensures dependable illumination and long service life in demanding marine environments.

Its compact anodized aluminum construction, combined with IP68 protection and epoxy-embedded electronics, provides superior resistance to water ingress and vibration. The light delivers efficient LED performance with full brightness across a wide voltage range.

Key Features

• Vertical mounting port and starboard navigation light
• Compact anodized aluminum housing
• LED technology with low power consumption
• IP68 rated for marine environments
• Worldwide maritime approvals

Lopolight 201-004-B - Port-Starboard Combination Navigation Light 112.5° 2 NM Vertical Mounting Black Anodized Aluminum

The Lopolight 201-004-B port and starboard combination navigation light is designed to deliver reliable and efficient illumination for vessels up to 20 meters in length. Developed and individually tested in Denmark, this model reflects Lopolight’s commitment to the highest quality standards and long-term durability in demanding marine environments.

Its compact black anodized aluminum housing ensures excellent resistance to corrosion, vibration, and water ingress. All components are embedded in epoxy resin, providing IP68 protection and stable performance without electromagnetic interference to VHF or AIS systems. Full brightness is maintained across a wide operating voltage range with ultra-low power consumption.

Key Features

• Two-tone port and starboard navigation light
• Vertical mounting design with compact footprint
• Black anodized aluminum housing
• IP68+ vacuum rated and anti-vibration construction
• 5-year worldwide warranty and global approvals

Lopolight 201-004-B-SUB - Navigation Light 2NM 2x112,5° Red/Green Sidelight, Black Anodized

This submersible navigation light is potted under vacuum and ideal for vertical installation. Its compact design with a short cable makes it suitable for smaller vessels requiring a robust, waterproof light solution.

• Number: 201-004-B-SUB
• Light Color: Red, Green
• Certification: DNV certified
• Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
• Visibility: 2 NM
• Operating Voltage: 10-32 VDC
• Operating temperature: -25°C to 55°C
• Mounting: Vertical
• Connection: 0.7m cable
• Included in Package: 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide
• Minimum feed wire gauge: 0.5 mm² AWG22
• Weight: 0.5 Kg / 17.64 Oz
• IP Rating: IP68
• EAN: 5704438038394
• UPC Code: 879343038526

Lopolight 201-004DLX - Navigation Light 2NM 2x112,5° Red/Green Sidelight W/6W Decklight

This versatile navigation light combines 2x112,5° red/green sidelights with a 6W decklight, providing complete illumination for vessels. Designed for vertical mounting, it includes a 15-meter 3-lead cable for easy installation.

• Number: 201-004DLX
• Dimensions (metric): 54 x 38,7 x 72,2 mm
• Dimensions (imperial): 2.1" x 1.5" x 2.8"
• Certification: DNV certified
• Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
• Operating Voltage: 10-32 VDC
• Power draw: 2.2 W
• Current consumption: 163 mA @ 12VDC, 90 mA @ 24VDC
• Operating temperature: -25°C to 55°C
• Mounting: Vertical
• Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• Connection: 2.5m cable
• Included in Package: 1 Navigation light, precabled with 2.5 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide
• Minimum feed wire gauge: 0.5 mm² AWG22
• Weight: 0.5 Kg / 17.64 Oz
• IP Rating: IP68
• EAN: 5704438012493
• UPC Code: 879343012496

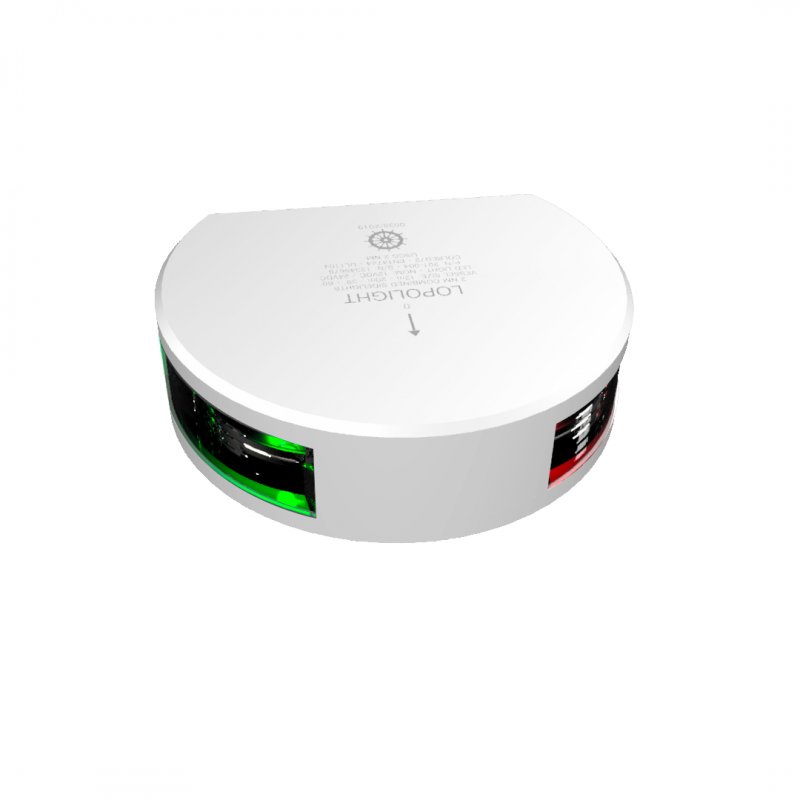

Lopolight 201-004-WH - Port-Starboard Combination Navigation Light 112.5° 2 NM Vertical Mounting White Ceramic

The Lopolight 201-004-WH is a premium port and starboard combination navigation light featuring a distinctive white ceramic housing. Fully assembled and tested in Denmark, this model offers superior visibility, durability, and compliance with international maritime standards for vessels between 12 and 20 meters.

Designed for vertical mounting, the light provides consistent LED performance with excellent intensity and low power consumption. Its IP68-rated construction ensures protection against water ingress, while the ceramic housing delivers a refined appearance combined with robust marine-grade reliability.

Key Features

• Port and starboard two-tone navigation light
• Vertical mounting with white ceramic housing
• High-intensity LED output with low energy consumption
• IP68 rated for harsh marine conditions
• Supplied with marine-grade precabled connection
