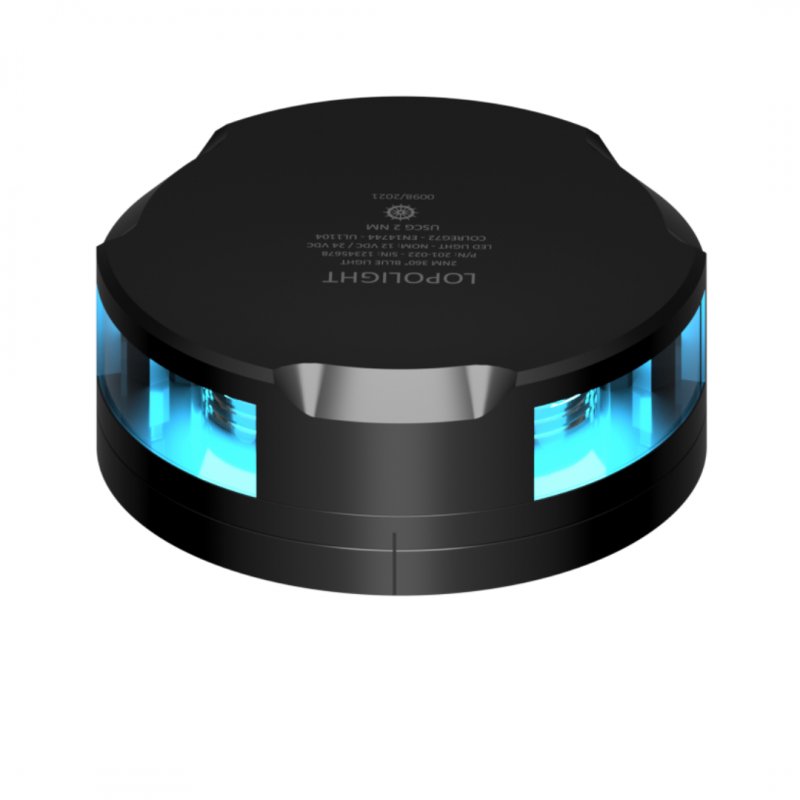

Lopolight 2nm 360° Blue Fuelling

Product Description

Lopolight 201-022-B-CD - Navigation Light 2NM 360° Blue Fueling, Black W/Conn & Alu-Base CD

This navigation light is black anodized with an IP68-rated aluminum base and features a plug connector for easy installation. It is designed for horizontal mounting with cable glands for secure cable down installation. Tested to IEC 60945, it delivers reliable 2 nautical mile visibility, suitable for vessels of all sizes.

• Model Number: 201-022-B-CD
• Light Color: Blue
• Dimensions (metric): Ø92.5mm x 74.5mm
• Dimensions (imperial): Ø3.6" x 2.9"
• Certification: Tested to IEC 60945
• Approvals: IEC 60945
• Visibility: 2 nautical miles
• Intensity: >5.4 cd
• Package Includes: 1 navigation light
• Operating Temperature: -25°C to 55°C
• Mounting: Horizontal
• Materials: Black anodized aluminum (25µ), PMMA lens, A4 stainless steel screws, epoxy, polyurethane
• Operating Voltage: 10-32 VDC
• EAN: 5704438045224
• IP Rating: IP68
• UPC Code: 879343045357
• Connection: Plug connector
• Current Consumption: 225 mA @ 12VDC, 156 mA @ 24VDC
• Vessel Size Compatibility: All sizes

Lopolight 201-022-CD - Navigation Light 2NM 360° Blue Fueling, Silver W/Conn & Alu-Base CD

This silver anodized navigation light features a durable aluminum base rated IP68 and a plug connector for easy cable connection. Designed for horizontal mounting with cable down M16 glands, it is tested to IEC 60945 standards and provides reliable 2 nautical mile visibility. Suitable for vessels of all sizes.

• Model Number: 201-022-CD
• Light Color: Blue
• Dimensions (metric): Ø92.5mm x 74.5mm
• Dimensions (imperial): Ø3.6" x 2.9"
• Certification: Tested to IEC 60945
• Approvals: IEC 60945
• Visibility: 2 nautical miles
• Intensity: >5.4 cd
• Package Includes: 1 navigation light
• Operating Temperature: -25°C to 55°C
• Mounting: Horizontal
• Materials: Silver anodized aluminum (25µ), PMMA lens, A4 stainless steel screws, epoxy, polyurethane
• Operating Voltage: 10-32 VDC
• EAN: 5704438045217
• IP Rating: IP68
• UPC Code: 879343045340
• Connection: Plug connector
• Current Consumption: 225 mA @ 12VDC, 156 mA @ 24VDC
• Vessel Size Compatibility: All sizes

Lopolight 201-022-FB - Navigation Light 2NM 360° Blue Fueling, Silver W/FB Base

This horizontally mounted navigation light includes a flat base (FB) POM mounting system and a 0.7 meter cable. Tested to IEC 60945, it features a silver anodized aluminum body and offers 2 nautical mile visibility, suitable for all vessel sizes.

• Model Number: 201-022-FB
• Light Color: Blue
• Dimensions (metric): Ø92.5mm x 36mm
• Dimensions (imperial): Ø3.6" x 1.4"
• Certification: Tested to IEC 60945
• Approvals: IEC 60945
• Visibility: 2 nautical miles
• Package Includes: 1 navigation light pre-cabled with 0.75 meter shielded marine grade cable, installation guide
• Operating Temperature: -25°C to 55°C
• Mounting: Horizontal
• Materials: Silver anodized aluminum (25µ), PMMA lens, A4 stainless steel screws, epoxy, polyurethane
• Operating Voltage: 10-32 VDC
• EAN: 5704438043190
• IP Rating: IP68
• Power Draw: 3.7 W
• UPC Code: 879343043322
• Connection: 0.7 meter cable
• Current Consumption: 225 mA @ 12VDC, 156 mA @ 24VDC
• Recommended Minimum Feed Wire Gauge: 0.5mm² (AWG22)
• Weight: 0.42 Kg (14.97 Oz)
• Vessel Size Compatibility: All sizes

Lopolight 201-022-FB-B - Navigation Light 2NM 360° Blue Fueling, Black W/FB Base

The Lopolight 201-022-FB-B is a high-performance navigation light designed for use on vessels of all sizes. With a 360° blue light, it provides visibility up to 2 nautical miles. This model is ideal for fueling stations or other maritime applications, featuring a black anodized aluminum housing and a flat base mounting system.

• Number: 201-022-FB-B
• Light Color: Blue
• Dimensions (Metric): Ø92.5mm x 36mm
• Dimensions (Imperial): Ø3.6" x 1.4"
• Certification: Tested to IEC 60945
• Visibility: 2nm
• Included In Package: 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, Installation guide
• Operating Temperature: -25°C to 55°C
• Mounting: Horizontal
• Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• Operating Voltage: 10-32VDC
• IP Rating: IP68
• Power Draw: 3.7W
• Connection: 0.7m cable
• Current Consumption (mA @ 12VDC): 225
• Current Consumption (mA @ 24VDC): 156
• Vessel Size: All Sizes
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Weight: 0.42 Kg (14.97 Oz)
