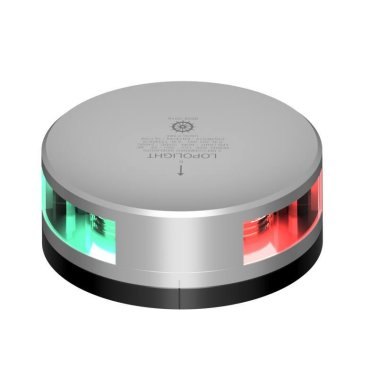

Lopolight 2nm Combined Sidelight Red/Green

Product Description

Lopolight 201-003-FB - Port-Starboard Combination Navigation Light 112.5° 2 NM Horizontal Mounting 2.5m Cable

The Lopolight 201-003-FB port and starboard combination navigation light is engineered to meet the highest international maritime standards. Each unit is fully assembled and individually tested in Denmark to ensure exceptional reliability, durability, and performance. Designed for vessels requiring efficient and compact lighting solutions, this model delivers full brightness across a wide voltage range while maintaining ultra-low power consumption.

Featuring one of the most compact designs on the market, the light is IP68+ vacuum rated and completely resistant to vibration thanks to all components being embedded in epoxy resin. The anodized aluminum housing ensures long-term protection in harsh marine environments, with no electromagnetic interference affecting VHF or AIS systems.

Key Features

• Port and starboard two-tone navigation light
• Ultra-low power consumption with full brightness from 10–32 V
• Horizontal mounting with anodized aluminum housing
• Anti-vibration design with epoxy-embedded components
• Worldwide approvals and 5-year warranty

Lopolight 201-003-FB-B - Port-Starboard Combination Navigation Light 112.5° 2 NM Horizontal Mounting Black Anodized 2.5m Cable

The Lopolight 201-003-FB-B navigation light combines cutting-edge LED technology with a robust black anodized aluminum housing. Fully assembled and tested in Denmark, this port and starboard combination light guarantees consistent performance, safety, and compliance with global maritime regulations.

Designed for horizontal mounting, this compact and vibration-resistant light features IP68+ protection and epoxy-sealed components. Its electromagnetic compatibility ensures no disturbance to onboard communication systems, making it ideal for professional and recreational vessels alike.

Key Features

• Two-tone port and starboard navigation light
• Black anodized aluminum housing with flat base
• Full brightness from 10–32 V with low energy consumption
• IP68+ vacuum rated and anti-vibration design
• 5-year worldwide warranty

Lopolight 201-003-FB-REVERSE - Navigation Light 2NM 2X112,5° Red/Green, Upside-Down W/FB Base

This navigation light offers the same exceptional features as the previous model but is designed for upside-down mounting, providing more versatility for different vessel setups. It comes with a 2.5-meter cable and the FB (flat base) POM mounting system, ensuring reliable and easy installation.

• Light Color: Red, Green
• Dimensions (metric): Ø92,5mm x 36mm
• Dimensions (imperial): Ø3.6" x 1.4"
• Certification: Certified by DNV, approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
• Visibility: 2 nautical miles
• Operating Temperature: -25°C to 55°C
• Mounting: Horizontal (Upside-down orientation)
• Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• Operating Voltage: 10-32VDC
• IP Rating: IP68
• Power Draw: 2.2W
• Current Consumption at 12VDC: 163mA
• Current Consumption at 24VDC: 90mA
• Vessel Size: 12-20 meters
• Minimum Feed Wire Gauge: 0.5mm² AWG22
• Weight: 0.55 kg (19.26 oz)
• Included in Package: 1 Navigation Light, precabled with 2.5-meter shielded marine-grade cable, Installation guide
• EAN: 5704438043305
• UPC Code: 879343043438
• Article Number: 186703AFBR
• Packaging Unit: 1 piece
• Article Code Supplier: 201-003-FB-REVERSE
