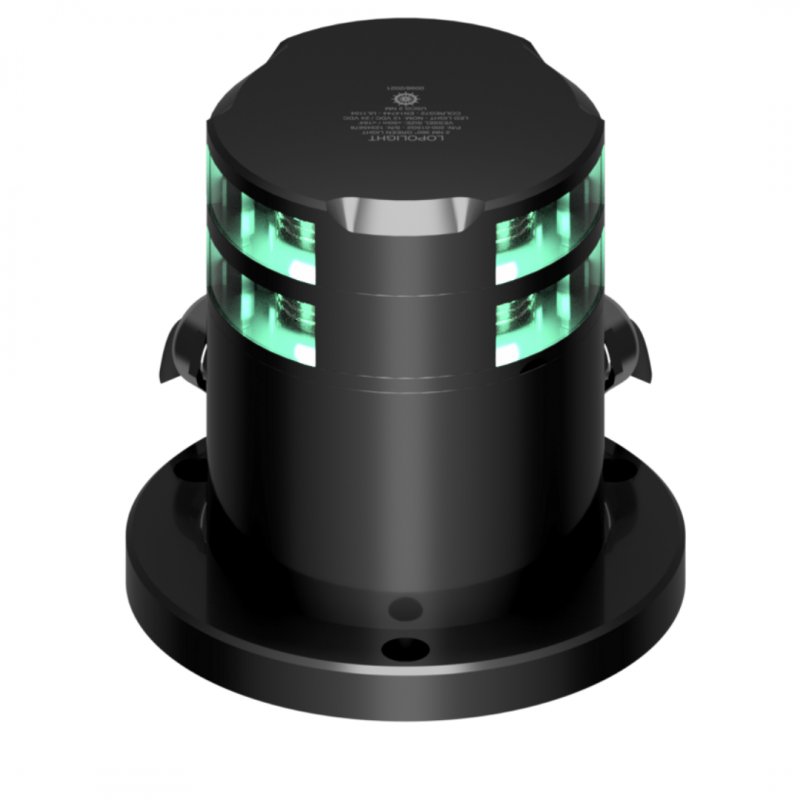

Name: Lopolight 3nm 360deg Green
Brand: Lopolight
Price: 1199.90 GBP
Availability: InStock

Product Description

Lopolight 300-115G2-B-CD-180 - Navigation Light 3NM 180° Green, Black Anodized

This black anodized navigation light offers 180° green illumination and is designed for horizontal mounting on a 400-035 aluminum base with IP68 protection. It includes a HDPE base plate and quality cable glands for cable diameters 7-13mm (9/32" - 1/2").

Number: 300-115G2-B-CD-180
Light Color: Green
Dimensions: See drawing
Certification: Certified by DNV
Intensity: >15cd
Visibility Range: 3 nautical miles
Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
Operating Temperature: -25°C to 55°C
Operating Voltage: 10-32 VDC
Connection: Plug connector
Current Consumption: 182 mA @ 12VDC, 176 mA @ 24VDC
Vessel Size: Over 50 meters
Weight: 0.96 kg (33.86 oz)
IP Rating: IP68
EAN: 5704438019607
UPC Code: 879343019730
Article Number: 1869015AZ180
Packaging Unit: Piece
Supplier Article Code: 300-115G2-B-CD-180

Lopolight 300-115G2-B-RPM - Navigation Light 3NM 360° Green Dimmable Black Anodized

A compact and durable navigation light designed for professional vessels. It provides reliable green illumination with dimmable control, making it suitable for demanding maritime environments.

Dimmable, monitored, controllable
2-lead connection for power and control
IP68 aluminium connection base, cable to side
Delivered with black PE base plate
Number: 300-115G2-B-RPM
Light Color: Green
Dimensions metric: Ø92,5mm x 89,5mm
Dimensions imperial: Ø3.6" x 3.5"
Intensity: >15cd
Visibility: 3nm
Certification: DNV
Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
Operating temperature: -25°C to 55°C
Mounting: Horizontal
Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage: 10-32VDC
Power draw: 4,2 W
Current consumption (mA @ 12VDC): 182
Current consumption (mA @ 24VDC): 176
Connection: Plug connector
IP rating: IP68
EAN: 5704438013926
UPC Code: 879343013929
Special Attributes: Dimmable (NAVY/SAR only)
Vessel size: Over 50M
Min. feed wire gauge: 0.5mm² AWG22
Weight: 1 Kg / 35.27 Oz

Lopolight 300-115G2-B-RPM-I - Navigation Light 3NM 360° Green Dimmable Ice-Class Black

A robust navigation light built for ice-class vessels. With built-in heaters and dimmable functionality, it ensures reliable operation even in extreme cold environments.

Dimmable, monitored, controllable
2-lead connection for power and control
Ice-class heaters built-in
Number: 300-115G2-B-RPM-I
Light Color: Green
Dimensions metric: Ø92,5mm x 89,5mm
Dimensions imperial: Ø3.6" x 3.5"
Intensity: >15cd
Visibility: 3nm
Certification: DNV
Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
Operating temperature: -60°C to 55°C
Mounting: Horizontal
Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage: 20-32VDC
Power draw: 4,2 W
Current consumption (mA @ 12VDC): 182
Current consumption (mA @ 24VDC): 176
Connection: Plug connector
IP rating: IP68
EAN: 5704438013919
UPC Code: 879343013912
Special Attributes: Ice-class Defroster included, Dimmable (NAVY/SAR only)
Vessel size: Over 50M
Min. feed wire gauge: 1.5mm² AWG18
Weight: 1.06 Kg / 37.39 Oz

Lopolight 300-115G2-H1C-B - Navigation Light 3NM 360° Green Hoist Black Anodized

A robust navigation light designed for vessels over 50 meters, built with durable materials and approved by multiple international standards.

Number: 300-115G2-H1C-B
Light Color: Green
Certification: Certified by DNV
Intensity: >15cd
Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
Visibility: 3nm
Operating Temperature: -25°C to 55°C
Mounting: Hoistable
Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage: 10-32VDC
EAN: 5704438042254
UPC Code: 879343042387
Connection: M12 connector
Current Consumption (mA @ 12VDC): 182
Current Consumption (mA @ 24VDC): 176
Vessel Size: Over 50M

Lopolight 300-115G2-H1C-B-P - Navigation Light 3NM 360° Green Hoist Black Anodized

An advanced version of the navigation light, equipped with a programmable RS485 interface and strong environmental protection, ideal for demanding maritime conditions.
