Morningstar Morningstar TriStar 30A MPPT solar charge controller for caravans, motorhomes, boats and

Product Description

As an official distribution partner of Morningstar products across the globe, we are proud to offer solar charge controllers from this world-leading supplier. Innovative design from years of dedicated research and superior build quality enable these top-of-the-range solar charge controllers to extend battery capacity and life, maximise energy production, and consistently achieve high performance standards.

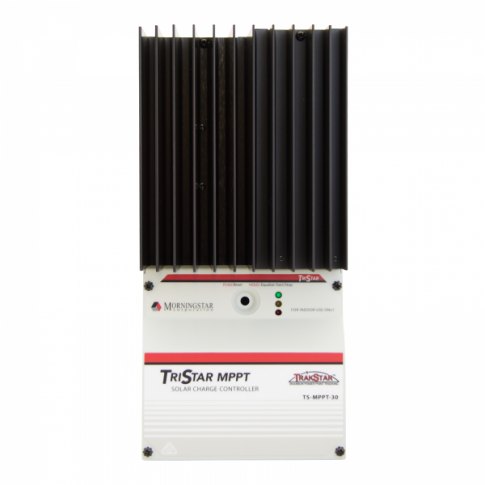

This high quality MorningstarTriStarTM MPPT 30Asolar charge controller is suitable for 12V, 24V, 36Vor 48V battery banks. It uses TrakStar TechnologyTM, which provides the very best automaticpower pointtracking by sweeping the I-V curve faster than any other MPPT controller on the market, and maximising the energy harvest of the solar PV array.Setting an industry record of 99% peak efficiency and subsequently less power losses through the solar power system, this MPPT controller guarantees an excellent return on investment.

The controller is designed to protect batteries whilst charging them,providing automatic cut off to prevent over-charging and deep discharge. It comes with a full range of protection functions: overload, short circuit, high voltage, reverse polarity, high temperature, lightning and transient surges, reverse current at night.

Other key features include:


Extremely high reliability, with a large heat sink, no cooling fans and a robust thermal designfor high operating temperatures
Better peak power point tracking, and excellent performance ratings at sunrise or during times of shading
Incredibly high peak efficiency of 99% - a performance record in the solar industry
Extensive communication capabilitieswith internet accessfor custom settings, data logging and remote monitoring
Easy to install and use, with fully automatic operation, fault recovery and up to 200 days of data logging




This controller can work with sealed, geland flooded batteries.

The maximum allowed input solar power for this controller is: 400W (12V), 800W (24V), 1200W (36V), and 1600W (48V).

The controller can also be connected to theTriStar remote meter with 30m extension cable (sold separately) to view detailed charging parameters and remotely monitor your system.

Click on theDetails and Specifications tab for more information about this product.
