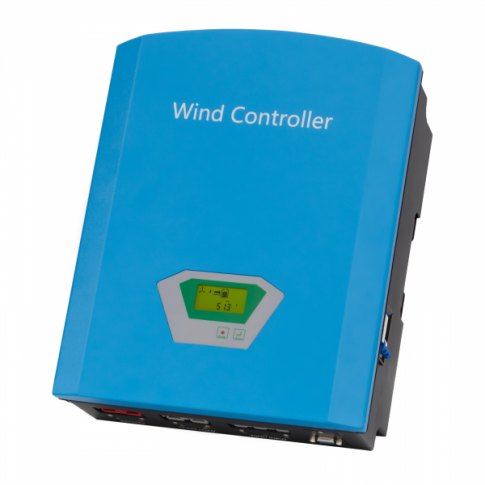

Photonic Universe 1000W 48V MPPT wind charge controller with LCD display and dump load

Product Description

Photonic Universe is proud to offer this truly advanced wind charge controller, which uses a highly efficient wind power conversion technology. This product is the result of many years of research and development by an expert team of specialised wind power engineers.

This charge controller is designed to charge a 48V battery bankusing energy generated from wind turbines. It can accept input of up to 1000Wof wind power (MPPT).

The controller uses MPPT boost charging technology to unlock the full potential of your wind power system, ensuring optimal performance. The wind charging circuit is equipped with cutting-edge power tracking and voltage-boosting features, achieving the maximum available power from the wind turbine even in low-wind conditions. It also comes with a turbine braking function and external dump load to protect the battery and the turbine during high winds.

Key Features


Low Wind Boost Charging:During periods of low wind speed the voltage output of your turbine may be below the charging threshold of your battery. This innovativeboost typecontroller can raise the voltage of the turbine to ensure it can keep charging a 48V battery from wind turbine voltage as low as 8V.
High Efficiency MPPT Charging: Using advanced Maximum Power Point Tracking (MPPT) technology, the controller optimises wind turbine performance by tracking the ideal power voltage point, maximising power output. It also allows the user to enter their own tracking points of the wind power curve if required.
Comprehensive Safety: The controller offers multiple protection functions, including safeguards against reverse current backflow, overvoltage, and high wind speeds. It also features automatic braking to prevent overcharging and turbine damage.
User-Friendly Interface: The controller's digital LCD display provides essential information like battery voltage, charging current, connection status of the wind turbine and battery charging status. It also alerts you to any system faults or abnormal values, such as low battery voltage.
Advanced Software Configuration: The charge controller can be configured using dedicated free software (Windows only), which connects through an RS232 port. The software allows the user to set many parameters such as charging and disconnect voltages, wind turbine overcurrent, wind turbine start voltage, wind braking settings, as well as to access monitoring and historical data.
External dump load: As an additional safety precaution, this controller also comes with an external dump load for further system protection. The controller will automatically detect when the battery bank is full and divert any excess energy directly to the dump load unit, connected to the dump load terminals of the controller. This prevents damage to system components including the batteries and wind turbine, which is particularly useful for applications with strong wind speeds where thebattery is often rapidly charged.
Manual Brake Switch: The controller comes with a manual brake switch, allowing the user to manually apply the braking function for intense conditions and maintenance purposes.




Compatibility

This charge controller is compatible with 48Vwind turbines with 3-phase AC output.

Click on the Details and Specifications tab for more information.
