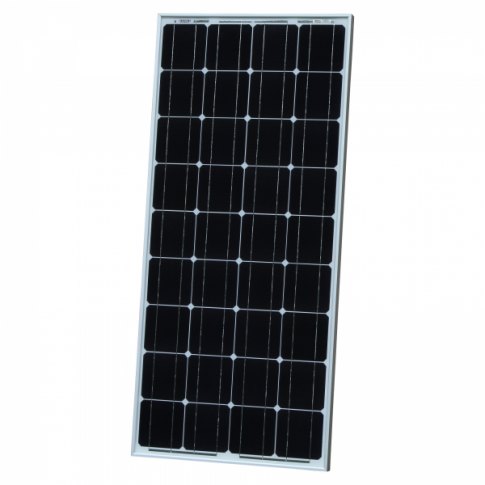

Photonic Universe 100W monocrystalline solar panel with 5m cable
Item: SPA-100M
MPN: SPA-100M
Affordable 100W monocrystalline solar panel fitted with 5m of special solar cable and MC4 connectors, for charging a 12V battery.
login to saveProduct Description
This waterproof, affordable, high efficiency Photonic Universe 100W monocrystalline solar panel is perfect for permanent outdoor use to provide free electricity to charge a 12V batteryto power hundreds of devices and electrical appliances.
The long-lasting monocrystalline solar cells and the tough, sealed, aluminium frame will provide years and years of consistent, free power. The waterproof design ensures thatthe panel can be used in all weather conditions.
The panel is fitted with 5m of special solar cable which can work at high roof temperatures, with minimum power losses. A pair of male / female MC4 connectors are crimped on the end of cable for easy connection to other solar panels, your existing system or 4mm extension cable. The MC4 connectors can also be cut off when wiring to the screw terminals of a solar charge controller.
Each individual solar panel is thoroughly tested to the highest quality standards, and labelled with a unique serial number for further quality control and increased warranty protection.
Several of these panels may be connected in parallel or series to generate extra power for your needs.
If you are planning to use this solar panel to charge a 12V battery or battery bank: please note this panel requires a solar charge controller / regulator to charge a 12V battery. To view the full range of solar charge controllers we offer, please visit the Solar Charge Controllers category of our online shop.
Click on the Details and Specifications tab for more information.
Details
Solar panel specifications:
Peak power: 100W
Maximum power voltage: 19.3V
Maximum power current: 5.18A
Open circuit voltage: 22.9V
Short circuit current: 5.56A
Power allowance range: 0~+3%
Dimensions: 1200 x 540 x 30 mm
Weight: 8.5 kg
4 mounting holes
2 x 5m of high quality single core solar cable (4.0mm² cross section) with MC4 connectors attached
This product is covered by a 1 year workmanship warranty provided by Photonic Universe. We will repair or replace defective items at our discretion. For more information please refer to our Terms and Conditions.
In addition, solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase. This warranty is provided by the manufacturer of solar cells.
Installation
This solar panel is not supplied withan installation manual as it needs to be connected to further devices such as a solar charge controller or inverter which are supplied with a manual.
If you are planning to use this panelto chargea 12V battery, we recommend purchasing one of our solar charge controllers. All of our solar charge controllers include an instruction manual with detailedinstallation instructionsandwiring diagrams.
If you need help with installation or have any technical questions we can provide FREEsupport - please contact us by email or phone (see Contact Us page for more information).
