Photonic Universe 10kW Zero-Transfer Uninterrupted Power Supply (UPS) System with 24kWh energy stora
Item: UPS2-ZT5K-48
MPN: UPS2-ZT5K-48
UPS battery back-up system for applications requiring a constant, uninterrupted power supply. Includes 2 x 5000W 48V hybrid inverters with zero-transfer time, a 24kWh 500Ah battery bank and connection cables.
login to saveProduct Description
This Photonic Universe Uninterrupted Power Supply (UPS) system is suitable for both mains-powered and off-grid applications where a stable and reliable source of AC power is required. Suitable for large households, servers, datacentres, telecommunications or other commercial and industrial use.
In a mains-powered setup, the system ensures that the AC appliances are not interrupted even if the mains electricity is unstable, intermittent or the power is suddenly cut off. While the mains power is available, the system links it to the AC output to power connected appliances whilst simultaneously charging the battery bank, or keepingit topped up. If the mains power is suddenly cut off, the system instantly transfers the power input to the battery bank and starts drawing energy fromit so that the load work is not interrupted. When the mains AC input power becomes available again, the system transfers the input to mains AC power.
Zero transfer technology allows for instant switching from mains to battery backup power, without the typical delay of 10-20ms. This UPS is ideal for sensitive electronics where a consistent power supply is required, such as computers, servers, equipment in datacentres and other IT equipment.
For off-grid systems with a generator, this UPS system can allow for continual power even when the generator is turned off. This allows users to achieve significant savings of fuel costs by only running the generator periodically -at the optimal power levels to charge the battery bank.
Featuring a dry contact port, the inverters can activate or deactivate relay switches or compatible generators automatically when the battery voltage falls below a user-defined level. For off-grid systems with a generator, this feature is useful as the relay can activate the generator to start charging the batteries when they are low.
The system can also be used for portable power applications, i.e. when the battery bank ischarged in a location with mains electricity, and the system is then transported to a different off-grid location to provide power on demand on a temporary basis.
This UPS system also supports solar power input with no additional charge control equipment required. Users can simply connect a suitable solar array to start charging from solar power to save on electricity bills for mains connected systems, or in order to run a generator less frequently for off-grid systems.
The system can be easily expanded to generate up to 45kW of continuous power, by connecting 9 inverters in parallel (additional parallel kits required, one per inverter). The external battery bank allows for easy expansion or replacement, as well as straight-forward installation in irregular locations.

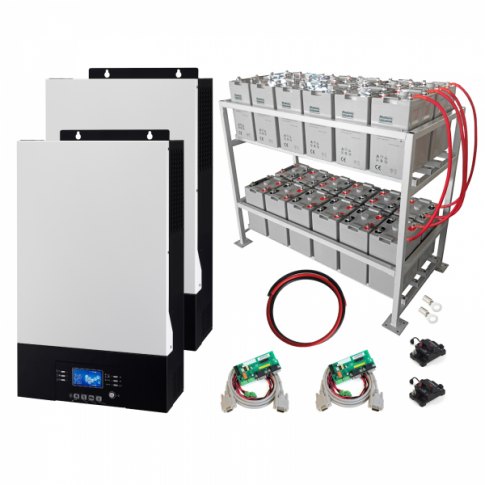

This package includes2 xUPS units,2 x parallel connection kits, a 24kWh 500Ah battery bank , 4m tinned copper battery cables, 2 x thermal over-current circuit breakers and loose ring terminals for crimping.
Please note: the inverters use predictive cooling logic to activate the fans, andare not suitable for installing in locations where silence is required.
Click on theDetails and Specifications tab for more information about this kit.
Details
UPSspecifications (per unit):
Nominal battery voltage: 48V
Continuous power output: 5000W/5000VA (220-240V AC)
Surge power: 10000VA
Output frequency: 50Hz - 60Hz
Output waveform: Pure sine wave
Maximum solar input power: 4000W
Maximum open circuit solar input voltage: 145V (open circuit)
MPPT operating solar voltage: 60 - 115 V
Maximum solar charging current: 80A
Maximum mains AC charging current: 60A
Maximum combined charging current: 140A
Peak efficiency: 93%
Solar / AC charger max efficiency: 98%
Operating temperature: 0°C to 55°C
Supplied with USB drive, PC connection cable and PC software CD
Size:52.5 x30.3 x 14 cm
Weight:13.5 kg
Battery specifications (entire 48V battery bank):
Nominal voltage: 48V
Nominal capacity: 24kWh
Maximum charging current: 100A
Charging voltage: cycle use 56.4V, standby use 54.8V
Temperature compensation: cycle use -120mV/°C, standby use -72mV/°C
Size: 1290 x 1140 x 670 mm (when positioned in racking)
Weight:720 kg (including racking)
Please note: due to our warehouse arrangements,the accessories may be shipped from a different warehouseto the hybrid inverters and battery bank, and thereforedelivered in a separate package.
The battery bank is covered by a 1 year repair or replacement warranty provided by Photonic Universe. Inthe unlikely event that a defect is found and confirmed during this period, we guarantee that we will repair or replace defective items (at our discretion). Thehybrid inverter is covered by a 1 year manufacturer warranty.For more information please refer to our Terms and Conditions.
For installation advice, please click on the Installation tab.
Installation
Please note: this UPS system uses off-grid inverters. Any other AC power sources, including mains, can only be connected to the inverter input AC terminals, and should be fully isolated from the inverter output AC terminals. If the AC output of the inverters come into contact with another source of AC power, the inverters will be damaged.
If you need help with installation or have any technical questions we can provide FREEsupport- please contact us by email or phone (see Contact Us page for more information).
