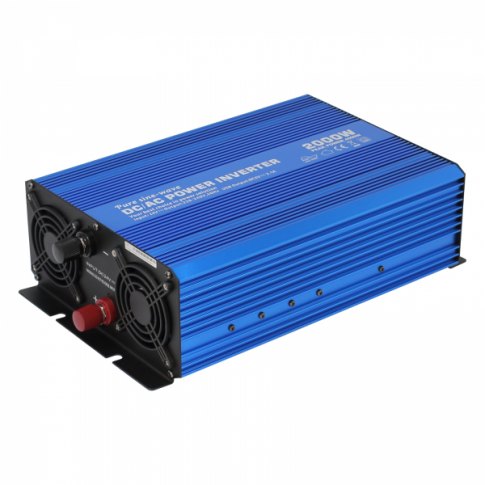

Photonic Universe 2000W 24V pure sine wave power inverter 230V AC output (UK sockets)
Item: IPC-2000-24
MPN: IPC-2000-24
2000W 24V power inverter for converting 24V DC battery power into 230V AC mains power- ideal for off-grid locations and areas without access to mains electricity.
login to saveProduct Description
What is a power inverter?
A power inverter is a device which converts battery output (DC, or direct current) into 230V AC mains electricity (alternating current). 230V AC is the type of electricity supplied by utility companies to run standard domestic appliancessuch asa TV, fridge, radio, lights or to charge a laptop / mobile phone etc.If you have a battery, connecting a power inverter will enable you topower household appliances in areas with no access to mains electricity; such as in a motorhome, caravan, boat, farm or any otherremote location. Inverters are also perfect for off-grid and back up systems for accidental power cuts.
This is a 2000W 24V pure sine wave power inverter which can generate 2000W of continuous power and up to 4000W of power at peak times (peak time reserve capacity is useful if more energy is required to start an appliance than for its continuous running).
This is a pure sine wave type of inverter, which means that the 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output isfar superior than square sine wave or modified sine wave output for running appliances. This is because:
It issuitable for a broader range of appliances (for example, applianceswith electric motors can notbe powered by modified sine wave inverters)
It is more efficient compared to modified sine wave inverters.
This product comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown.
The inverter also featuresa powerful USB port for faster charging ofmobile phones, MP3 players and other USB-compatible devices (2.1A).
Which appliances can be powered?
If you are unsure whether 2000W is sufficient for your appliances, please refer to the following following table: Table of typical power consumption of domestic appliances
Click on theDetails and Specifications tab for more information
Details
Specifications:
Continuous power: 2000W
Surge power: 4000W
Input: 24V (20-31V) DC
Output: 220-240V AC
Output frequency: 50-60 Hz
Output waveform: pure sine wave
THD: less than 3%
Peak efficiency: 87%
USB output: 2.1A
Low battery alarm: 23V +/- 1V DC
Low battery shut down: 21V +/- 1V DC
High voltage shut down: 31V +/- 1V DC
Size: 37 x 23 x 11 cm
Weight: 4.9kg
The product is covered by a1 yearwarranty. For more information please refer to our Terms and Conditions.
Installation
This product comes with a user manual which explains wiring and operations (see Documents tab).
Note for users of our solar charging systems: this inverter can be connected to your 24V battery / battery bank alongside any of our solar systems or charging kits. If you already have one of our 24V solar charging kits with a charge controller connected to your 24V battery, you can simply add this inverterto your existing system(connect the inverter to your battery in parallel with the solar controller and 24V appliances). If the solar charge controller has a pair of "load" terminals, please do not connect the inverter to this pair of terminals as the power may be too high for the solar controller.We recommendconnecting it to your 24V battery directly.
If you do not currentlyhave one of our 24V solar charging kits but plan on building an off-grid solar system with 230V mains output, we recommend using 24V batteries / 24V solar charging kits and this inverter with a 24V input voltage, rather than having all 12V componentsand an inverter with a12V input voltage. Higher voltage of the system components is beneficial because:
Cables for 24V do not have to be as thick as those required for 12V
Input into the power inverter will havea twice as low current (Amps) making the whole system more stable and reliable.
If you need help with installation or have any technical questions we can provide FREEsupport - please contact us by email or phone (see Contact Us page for more information).
