Photonic Universe 200W (100W+100W) solar charging kit with 20A controller with LCD display and 2 x

Product Description

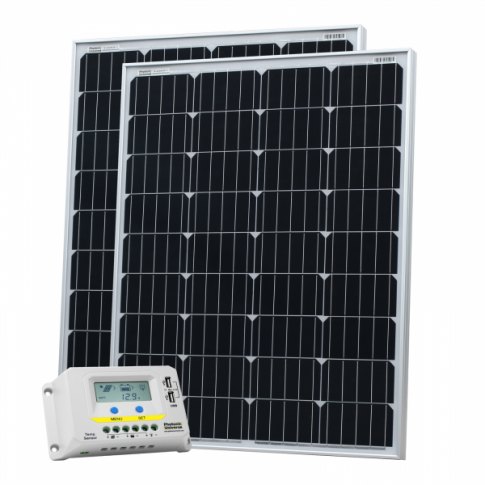

This kit includes:


2 x 100W high efficiency waterproof monocrystalline solar panels, each with 5m cable and MC4 connectors
Advanced 20A solar charge controller with LCD display and powerful 2.4A dual USB output




2 x 100W solar panels:

This 200W system is perfect for permanent outdoor use to provide free electricity for charging 12V batteries to power various applications such as in a camper van, motorhome, boat, shed, farm, as well as remote applications such as telecommunications or monitoring equipment. It can also be used to provide a direct power supply for applications not sensitive to changes in input voltage / current (e.g. electric motors or pumps).

Each panel is fitted with 5m of special solar cable which can work at high roof temperatures, with minimum power losses. A pair of male / female MC4 connectors are crimped on the end of cable for easy connection to other solar panels, extension leads or to your existing system (the MC4 connectors can also be cut off when wiring to the screw terminals of a solar charge controller).

The long-lasting, high-efficiency monocrystalline solar cells and the tough, sealed, aluminium frame will provide years and years of consistent, free power. The waterproof design ensures that thepanels can be used in all weather conditions.

These panels also feature innovative 5 busbar solar cells, which are more efficient than the2, 3 or 4busbar solar cells used in most other solar panels, and are able to extract more power from the same surface area. This results in smaller overall solar panels, whichare ideal for applications where space is limited. These solar cells are also the best choice for applications in warmer climates, as they operate well even inhigh ambient temperatures.

Advanced 20A solar charge controller:

The kit includes a 20A 12V/24V Photonic Universe solar charge controller designed to protect batteries whilst charging them,with automatic cut off to prevent over-charging and deep discharge. The controller uses PWM (Pulse Width Modulation) technology which increases charge acceptance and prolongs the life of your battery. Often PWM technology can recover some lost battery capacity.

This controller stops reverse current at night (from the battery back to the solar panel) so your battery won't lose any charge. It has many other protection functions such as over charge / discharge, over load, short circuit, overheating etc.

TheLCDdisplay showsinformation regardingreal time solar panel and batteryperformance,including: voltage, current, battery state of charge, and battery temperature. An energystatistics counteralso displaysthe accumulated daily and monthly charge values(useful for comparing solar panel performancebetween different periods).

This solar charge controller also offers the rare and highly sought-after feature of a dual USB charging output. These 5V USB ports havea total combined output of 2.4A, offering fast and powerful charging of USB compatible devices such as mobile phones, tablets, mp3 players etc.

Anoptional programmableload (e.g. 12V lighting / fans / water pumps) may also be connected directly to the solar charge controller. Using the buttons and LCD display, the user can set personalised On/Off timers for these appliances.In addition, this controller also offers various charging programsfor different battery types, which can be easily selected by the user. In addition to the built-in temperature sensor, the controller has a pair of terminals for connecting a remote temperature sensor, which can be attached directly to the battery to measure the battery temperature more precisely and optimise the charging process.

Please note: This is an essentials kit and does not include mounting accessories or battery cable. If you require these additional items, please purchase them separately.

Click on theDetails and Specifications tab for more information
