Photonic Universe 2.4kW 24V Complete Off-grid solar power system with 8 x 300W solar panels, 3kW hyb

Product Description

This Photonic Universe 2.4kW 24V Complete Off-grid Solar Power System is the perfectready-to-use kitfor off-grid applications requiring a reliable andconstant source ofpower forhousehold appliances or industrial equipment in areas without access to or without stable mains electricity. This kit can provide power to small and medium household or office appliances such as a fridge, TV, radio, lights, computer, hoover, microwave or a kettle,as well ascertainhigh power appliances such as power tools or a washing machine (cold wash). This may vary significantly according to the location and season.

This complete off-grid kit has been expertly designed to maximise efficiency and output andtherefore comes equipped with some of our most premium quality products; includingeight powerful 300Wsolar panels, an advanced 24V 500Ah battery bank and a state-of-the-artIconica hybrid power inverter -an intelligent combination of a high efficiency MPPTsolar charge controller, pure sine wave inverter and smart mains battery charger in one single unit.

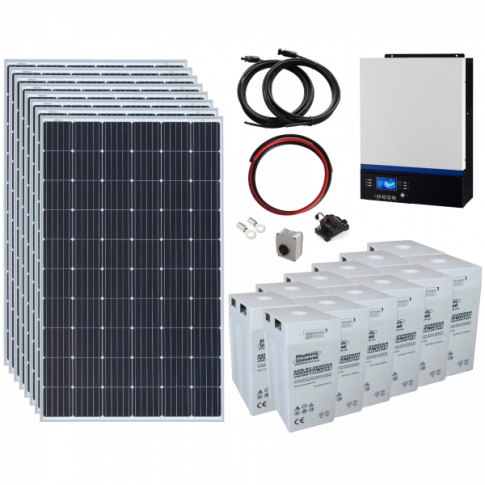

Kitincludes:


8x 300W monocrystalline solar panels each with 1m solar cable and MC4 connectors
Iconica Hybrid 3000W 24V pure sine wave inverter
12kWh 24V 500Ah battery bank - comprised of 12 x 2V AGM batteries
120A fuse or circuit breaker
A pair of 10m 6mm2 solar extension cables with MC4 connectors
2m of 35mm2 tinned copper battery cables
Solar isolator switch
Metal plate connectors and loose ring terminals




8xMonocrystalline 300W Solar Panels:

The eight high efficiency, waterproof 300W solar panels included in the kitare amongstthe largest and most powerful solar panels available on the UK and worldwide market. The panels feature thickinnovative 5 busbar solar cells, which are more efficient than the2, 3 or 4busbar solar cells used in other solar panels, and are able to extract more power from the same surface area. Each solar panel is alsofitted with 2 x 1m of 4mm2 cable with MC4 connectorson the end. These can be used for easy connection to the solar extension cable included with the kit.

3000W 24V Iconica Hybrid Inverter:

This inverter intelligently combines the functions of a 3000W pure sine wave inverter,80A MPPT solar charge controller and a 60A smart battery charger in one single unit.This innovative inverter features inbuilt Bluetooth, along with therare and uniqueability to power AC appliances without connection to a battery -directly from solar power.

1. 3000W24V Pure sine waveinverter:Converts DC current from the solar panels into 230V AC mains electricity,to run various household appliances such as a TV, laptop,lighting, fans etc. Able to generate 3000VA of continuous powerwith a strong peak power handlingcapability ofup to 6000VA (to start appliances with electric motors). Thisinverter is a pure sine wave type,which easily surpasses modified sine wave inverters in terms of efficiency and compatibility with a wider range of appliances.

2. Inbuilt 80A MPPT Solar charge controller: The high efficiency MPPT controllerregulates theinput from thesolar panels to the batteries or to load, with a full range ofsafety functions including protection against overcharge, overheating, reverse current etc. Thecontroller operates at up to 98% efficiency to extract the maximum possible power from the solar array.

3. Enhanced 60A Smart battery charger: Designed to enable safe and efficient and fast (up to 60A) unattended charging ofthe battery bankfrom a mains power source or generator, with full overcharge protection and multiple charging stages.

4. Inbuilt Bluetooth connectivity: The integrated Bluetooth function allows the inverter to be monitored remotely via the Watchpower mobile app - a free mobile app available for Android devices. After downloading the app, simply pair your mobile device with the inverter to gain access to important information such as solar/ battery/ AC voltage, charging current, battery capacityetc.

Additional features: This inverter is able topower AC loads (and itself) directly from the solar input, withoutthe need for abattery bank to beconnected to the inverter. However, if a battery bank is available, the inverter can power loads directly from the solar panelswhilst the chargingbatteries at the same time. This model also features an Uninterrupted Power Supply (UPS),and can accept input from the solar panels, mains power/ a generator andthebattery bank- either from a single or combination of input sources.

The inverter is supplied with a PC connection cable andPC software CDfor convenient viewing of important system information, and can also be connected toaWi-Fi connection kitor 3G connection kit (purchased separately) to unlock access to SMS / email status updates for the inverter, remote system monitoring from any location and much more.

12kWh24V 500Ah AGM Battery Bank:

Theadvanced 24V 500Ah battery bank included in this kit is comprised of12 x 2V high quality AGM batteries, complete with metal plate connectors for instant connection. This battery bank features 2V batteries, offering important advantagesoverbattery banksmade up of 12V batteries including a longer service life and deeper discharge capability.

Additional items:

This kit alsoincludes 2m positive and negative 35mm2 tinned copper battery cables with loose ring terminals for connecting the inverter to the battery bank, a120A fuseor circuit breakerfor use between thehybrid inverter andthe battery bank, 10m solar extension cable with MC4 connectors to connect to the existing 1m of solar cable fitted to the solar panels, a solar isolator switchandmetal plate connectorsfor connection of the battery bank.

Click on theDetails and Specifications tab for more information about this kit.
