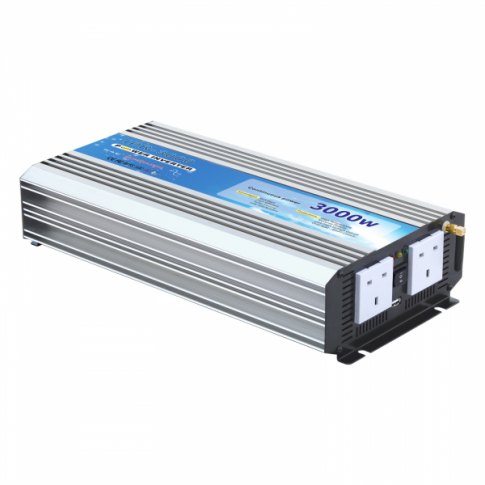

Photonic Universe 3000W 12V pure sine wave power inverter with On/Off remote control
Item: IPR-3000
MPN: IPR-3000
3000W 12V power inverter for transforming 12V DC battery power into 230V AC mains power - ideal for off-grid locations and areas without access to mains electricity. Supplied with a wireless aerial remote On/Off control.
login to saveProduct Description
What is a power inverter?
A power inverter is a device which converts battery output (DC, or direct current) into 230V AC mains electricity (alternating current). 230V AC is the type of electricity supplied by utility companies to run standard domestic appliancessuch asa TV, fridge, radio, lights or to charge a laptop / mobile phone etc.If you have a battery, connecting a power inverter will enable you topower household appliances in areas with no access to mains electricity; such as in a motorhome, caravan, boat, farm or any otherremote location. Inverters are also perfect for off-grid and back up systems for accidental power cuts.
This is a pure sine wave type of inverter, which means that the 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output isfar superior than square sine wave or modified sine wave output for running appliances. This is because:
- It issuitable for a broader range of appliances (for example, applianceswith electric motors can notbe powered by modified sine wave inverters)
- It is more efficient compared to modified sine wave inverters.
This 3000W 12V pure sine wave power inverter can generate 3000W of continuous power and up to 6000W of power at peak times (peak time reserve capacity is useful in case if more energy is required to start an appliance than for its continuous running).
This product comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown.
In addition, the inverter has a USB port for powering USB-compatible devices (e.g. mobile phones, tablets, laptops, MP3 players etc.)and is also supplied with a wireless On/Off remote control (max. 50m radius).
Which appliances can be powered?
If you areunsure whether 3000W is sufficient for your appliances, please see the following table:
Table of typical power consumption of domestic appliances
Click on the Details and Specifications tab for more information.
Details
Specifications:
Input: 12V (10-15V) DC
Output: 220-240V AC
Output frequency: 50 Hz
Output waveform: pure sine wave
THD: < 3%
Continuous power: 3000W
Surge power: 6000W
Peak efficiency: 90%
Low battery shut down: 10.0V +/- 0.5V DC
Low battery alarm: 10.5V +/- 0.5V DC
High voltage shut down: 15.5V +/- 0.5V DC
Thermal shut down: 60 +/-5°C
Rated USB output: 2A
Wireless remote control radius: Approx. 50m
Size (inc. terminals):460 x 220 x 95 mm
Weight: 6 kg
This product is covered by a1 year manufacturer warranty. For more information please refer to our Terms and Conditions.
Installation
This inverter is supplied with a user manual which explainswiring, installation and operations (see Documents tab).
How do you install this inverter?
Simply connect it to your 12V battery or battery bank, plug your appliances into the inverter, turn the power switch on and they will start running. An adaptor may be used for more sockets,provided thatthe total power consumption of all appliances connected to this inverter is within 3000W.
Note for users of our solar charging systems: this inverter can be connected to your 12V battery / battery bank alongside any of our solar systems or charging kits. If you already have one of our 12V solar charging kits with a charge controller connected to your 12V battery,this inverter can beadded at any time(connect the inverter to your battery in parallel with the solar controller and 12V appliances). If the solar charge controller has a pair of "load" terminals, please do not connect the inverter to this pair of terminals as the power may be too high for the solar controller.We recommend connecting the inverter to your 12V battery directly.
If you need help with installation or have any technical questions we can provide FREEsupport - please contact us by email or phone (see Contact Us page for more information).
