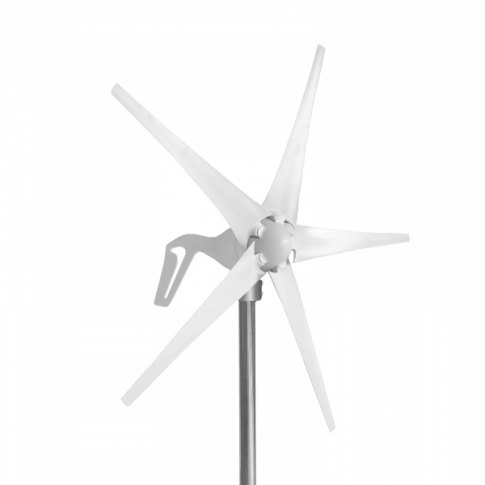

Photonic Universe 300W 12V wind turbine with 5 blades
Item: WTJ300-12
MPN: WTJ300-12
300W 12V wind turbine with 5 blade construction. Can be used to supplement an existing solar system or as part of a standalone off-grid wind power system.
login to saveProduct Description
This 300W 12V wind turbine provides a reliable source of electricity for all types of off-grid applications. This turbine is designed for use in a wide range of locations with varying degrees of wind speed. For example, in high wind areas such as open fields, coastal areas, and high ground, as well as in low wind areas when raised on a suitable pole. It is suitable for both stationary applications (remote, off-grid, backup) as well as for mobile use (e.g. boats).
This wind turbine is also the perfect addition to any solar charging kit to supplement energy production (particularly useful for charging at night time or in countries with reduced winter sunlight).
Key features:
This 300W 5-blade wind turbineis expertly designedtoprovide stable and reliablepower with high efficiency in low wind conditions. Important characteristics include:
Robust design: The casing of this turbine is made of strongcast aluminium alloy to ensure long-lasting useinharsh conditions whilst maintaining a rapid response to incoming wind.
5 blade construction: Maximises output in poor wind conditions and reduces the minimum required wind speed for start-upto only 2 m/s.
Aerodynamicoptimisation: The bladesareoptimally shaped for maximum efficiency and protectionfrom strong winds.
Automatic wind detection: The tail vaneautomatically seeks out thebest wind direction andre-orients the turbineaccordingly.
Patented permanent magnet AC generator: Features a special stator for effortless operation with minimal blade resistance.
Adjustable tube connector: Suitable for a wide range of mounting poles, including those typically usedfor scaffolding.
Easy installation: Assembly of the turbine is extremely straightforward and requires minimal effort.
Additional considerations:
The maximum output ofthis wind turbine is not strictly limited to a specific power rating.Although this wind turbine is rated to produce 300W at a wind speed of 11 metres per second, when exposed tostrong winds ithas the potential to exceed its nominal rating.
This wind turbineproducesthree-phase AC output and therefore requires a triple wire connection to a suitable charge controller.
A suitable pole for mounting is required (not included). Pole recommendations can be found in theInstallation tab.
Click on the Details and Specifications tab for more information about this product.
Details
Specifications:
Number of blades: 5
Rated power: 300W
Maximum power: 320W
Rated voltage: 12V
Start-up wind speed: 2m/s
Rated wind speed: 11 m/s
Survival wind speed: 50 m/s
Blade material: Nylon fibre
Generator type: Three phase permanent magnet AC synchronous generator
Magnet material: Neodymium Iron Boron
Generator case: Cast aluminium alloy
Control system: Electromagnet / Wind wheel yaw
Tube connector diameter: 54mm (adjustable)
Cable: 3 single core cables with bare ends. Length: approx. 10cm / Cross section: 2.5mm2
Working temperature: -40C to +80C
Net weight: 7.5 kg
Diameter of blades: 1.2m
Compliance: CE, ISO14001, ISO 9001, TUV
Screws included
This product is covered by a1 year manufacturer warranty.For more information please refer to our Terms and Conditions.
Installation
Installation and assembly of this wind turbine is extremely simple. For further information, please refer to the detailed user manual supplied with this product. Please note: The component list in the user manual is not entirely accurate and shows a different connectortype to the tube connector which issupplied.
Please note that this wind turbine requires connection to a suitable charge controllerin order to chargea battery.
This wind turbine requires a mounting pole, which is not included.
The base of this wind turbine features an adjustable tube connector (diameter 54mm) which can be expanded to accommodatea wider pole or securedaround a narrower pole using bolts and additional holes. We recommend using a metal pole for mounting (e.g. a scaffolding pole)rather thanpoles made of timber or plastic, whichmay pose a safety hazard.
