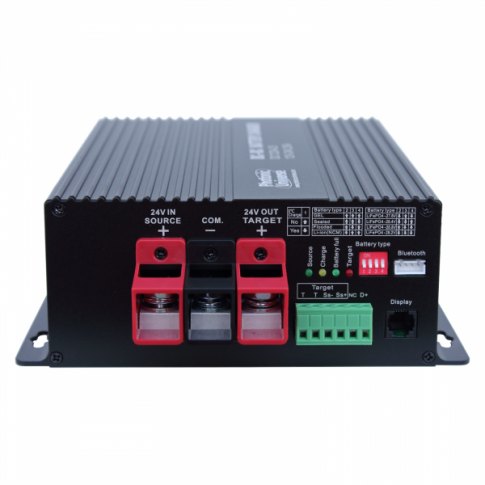

Photonic Universe 50A 24V DC to 24V DC Advanced Automatic Multi-Stage Battery-to-Battery Charger for

Product Description

This powerful Photonic Universe 50A advanced DC-DC Battery Charger is fully automatic and ideal for leisure vehicles, commercial and special purpose vehicles, boats, and any other systems with multiple 24V batteries or power sources. The charger operates using an adjustable three-stage charging programme and is suitable for Lead Acid, AGM, Gel, LiFePO4, and Lithium-ion (NCM) batteries. The product is compact, lightweight and features high frequency switching and buck-boost power conversion technology for reliable, consistent performance.

Key Features:



Fully-automatic, high-frequency, multi-stage charging: ensures the battery is charged safely and quickly. Pulsed charging keeps temperatures low and helps ensure a long battery life.


Easy battery type selection: with the use of dip switches, the unit can be switched between Lead Acid, AGM, Gel, LiFePO4, or Lithium-ion battery types.


Safe unattended charging: the unit featuresinbuilt safety functions (protectionagainst overload, overheating, overvoltage, over-discharge, short circuit, and reverse discharge of the battery), that allow the chargerto beleft permanently connected to the batteries for unattended automatic charging.


Advanced temperature protection and compensation: when paired with an optional external temperature sensor (sold separately), the charger provides advanced temperature protection for the batteries. For Lead Acid batteries, the charger adjusts the charging voltage to compensate for ambient temperature, ensuring optimal charging and extending battery life. For Lithium batteries, the temperature sensor unlocks a charging protection to be selected to prevent charging when below 0°C which could damage the battery.


Data monitoring: the charger includes ports for a remote meter or a Bluetooth module (both sold separately), allowing data to be viewed on an LCD display or through a mobile phone app when connected.


Continued charging during battery/load use: the charger will continue to operate at full power whilst energy is drawn from the battery during use. Any 12V loadsmay also be left permanently connected and running whilst the DC-to-DC charger is in operation,and will be protected against overvoltage and voltage fluctuations.


Ignition on/off control: via connection to the ignition control through the D+ terminal, this charger can be set to begin battery-to-battery charging immediately when vehicle ignition is turned on, and stop charging when the vehicle is turned off.


Wake-up function for Lithium batteries: when the Battery Management System (BMS) of a lithium battery goes into the protection mode, the charger can automatically activate the BMS and continue charging the lithium battery.



Additional features:

This charger features optional terminals that enable greater precision in voltage measurement of the target battery by bypassing the voltage drops in heavy-duty charging cables.

The charger includes 4 LED indicators to display the battery charging stage and diagnostic information.

Compatibility:

This DC-to-DC battery charger is suitable for use with 24V lead acid, AGM, Gel, LiFePO4, and Lithium-ion (NCM) batteries or battery banks. It is not compatible with 48V batteries or configurations of battery bank that are not 24V.

Click on the 'Details and Specifications' tab for more information about this product.
