Photonic Universe 600W 24V Waterproof wind charge controller / regulator for 24V wind turbines up to
Item: FW06-24
MPN: FW06-24
600W wind charge controller for charging 24V batteries by wind generators of up to 600W
login to saveProduct Description

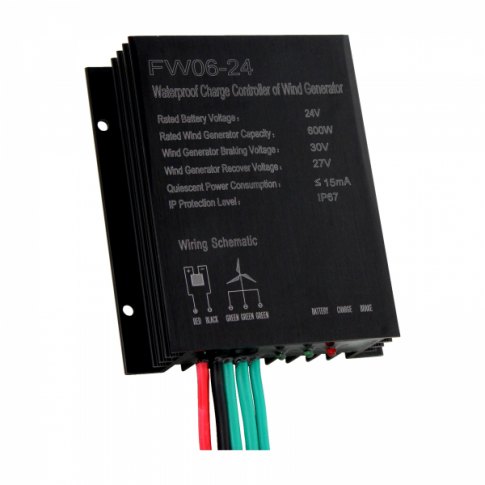

This waterproof 600W 24V wind charge controller is designed to charge lead acid batteries using energy generated from wind turbines. The controller seamlessly converts AC three-phase output from a wind generator into DC output, ready for charging a 24V battery bank.
This wind controller is equipped with advanced dual safety protection, designed to protect both thebattery and the wind turbine itself. This is achieved through the intelligent automatic braking function- applied to the turbine when the battery is full, toprotect the battery from overcharging. Automatic braking also helps to prevent damage to the wind turbine when high wind speeds are detected.
The fully waterproofcasing (IP67 rated)ensures that this wind controller is suitable for outdoor mounting. The unit also features LED indicators to show the current mode, system connection status and rotation speed of the wind generator.
This wind controller is compatible with 24V wind turbines ranging from a minimum capacity of 100W to a maximum of 600W.
Click on the Details and Specifications tab for more information.
Details
Controller specifications:
Battery voltage: 24V
Minimum wind generator capacity: 100W
Maximum wind generator capacity: 600W
Wind generator braking voltage: 30V
Wind generator recovery voltage: 27V
Display mode: LED
Ambient temperature: -35~+75℃
Dimensions: 100 x 87 x 28 mm
Weight: 400g
Quiescent current: ≤15 mA
IP protection level: IP67
This product is covered by a1 year warranty. For more information please refer to our Terms and Conditions.
Installation
This product comes with an instruction manual which explains connections and operations.
If you need help with installation or have any technical questions we can provide FREEsupport - please contact us by email or phone (see Contact Us page for more information).
