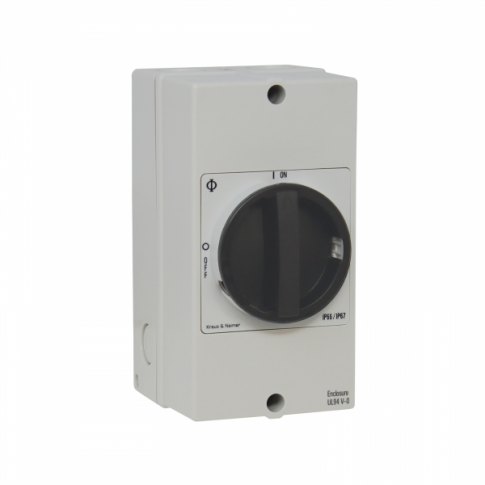

Photonic Universe K&N manual solar DC isolator switch 25A 450V - 11A 920V (2-pole 1-string)
Item: KG20
MPN: KG20
Manual 25A switch-disconnector for isolation of solar DC input from the rest of the system. Features IP66/67 protection rating and UL94V-0 flame-resistant rating.
login to saveProduct Description
This high-quality Kraus & Naimer manual solar DC isolator switchenables quick and reliable isolation of the solar DC input from the rest of the system. Designed and manufactured to the highest European quality standards.
This is a dual pole, single phase disconnector switch which is lockable in the off position (with an optional padlock), ifrequired. This is an ideal solution foreasy-to-reachdisconnection of your solar power supply from the inverter/regulator.
The switch is highly durable and totally insulated with an IP66/67 protection rating and a UL94V-0 enclosure, making it ideal for harsh environment applications. The unit features four mounting holes for ease of installation.
Click on the Details and Specifications tab for more information
Details
Specifications:
MPN: KG20 T104/D-P003 KL51V
Dimensions: 160 x 85 x 82 mm
Weight: 0.47 kg
Maximum cable cross section: 6mm2
Rated power: 6000W
Rated operating current & voltage:
25A @ 450V
21A @ 500V
20A @ 650V
18A @ 800V
11A @ 920V
This product is covered by a 1-year manufacturer warranty. For more information please refer to our Terms and Conditions.
Installation
If you need help with installation or have any technical questions we can provide FREEsupport - please contact us by email or phone (see Contact Us page for more information).
